iQ L4-1.3L (1NR-FE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Bumper
>>
Rear Bumper
>>
Service and Repair
>>
Removal and Replacement
>>

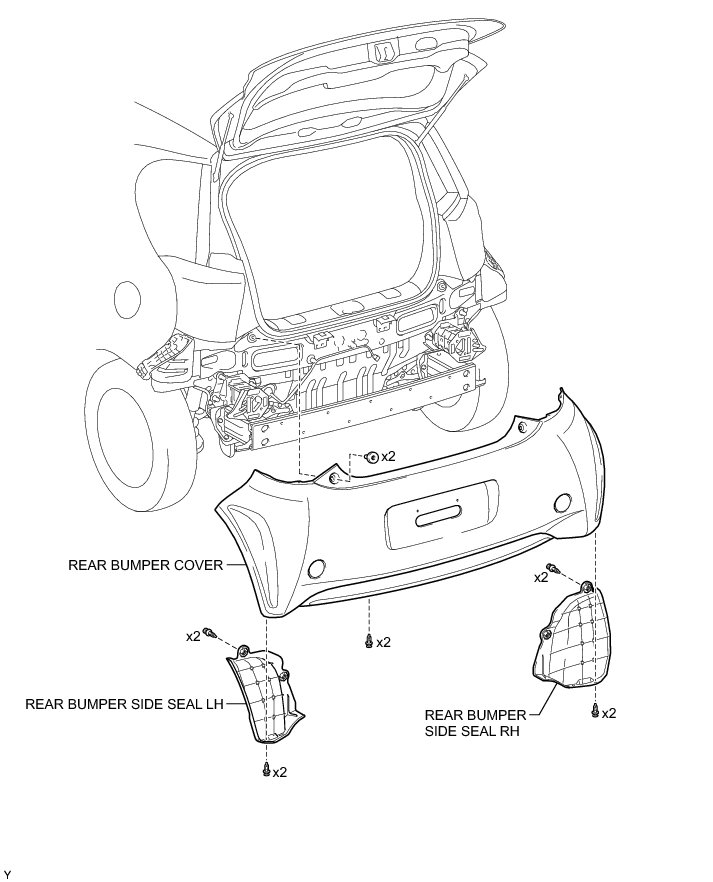

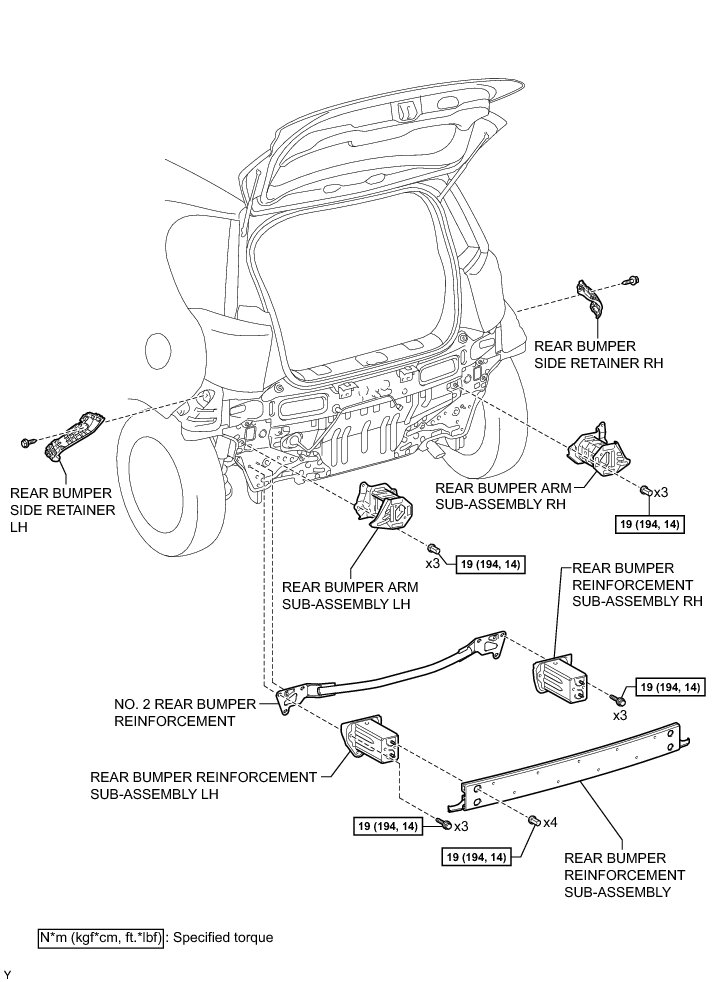

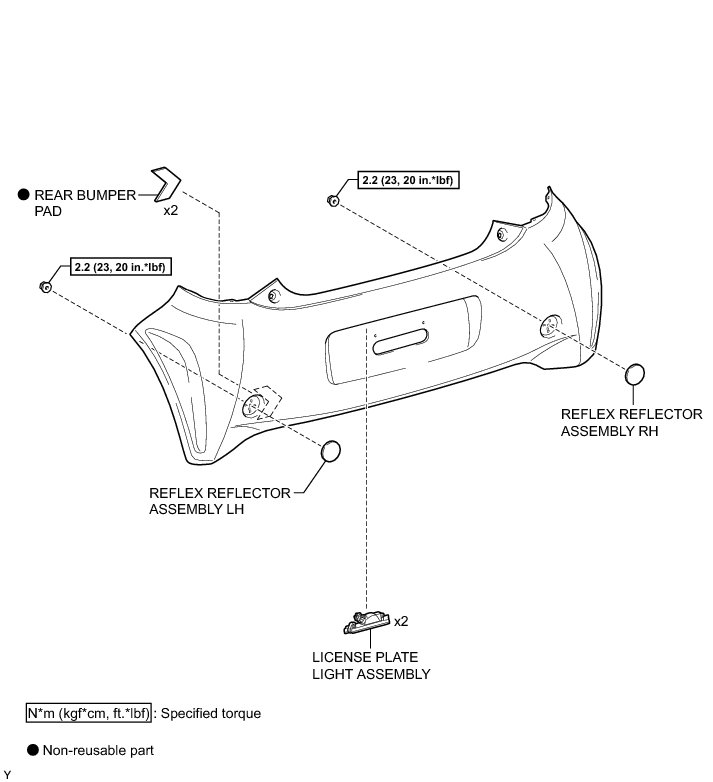

Components
Components
EXTERIOR PANELS / TRIM: REAR
BUMPER
: COMPONENTS
