Customize Parameters

DOOR LOCK: WIRELESS DOOR LOCK CONTROL SYSTEM: CUSTOMIZE PARAMETERS

1. CUSTOMIZE WIRELESS DOOR LOCK CONTROL SYSTEM

HINT
The following items can be customized.

NOTICE:
* When the customer requests a change in a function, first make sure that the function can be customized.
* Be sure to make a note of the current settings before customizing.
* When troubleshooting a function, first make sure that the function is set to the default setting.

(a) Customizing with Techstream.

(1) Connect the Techstream to the DLC3.

(2) Turn the ignition switch to ON.

(3) Turn the Techstream on.

(4) Enter the following menu: Body Electrical / Wireless Door Lock / Utility / Customize Setting.

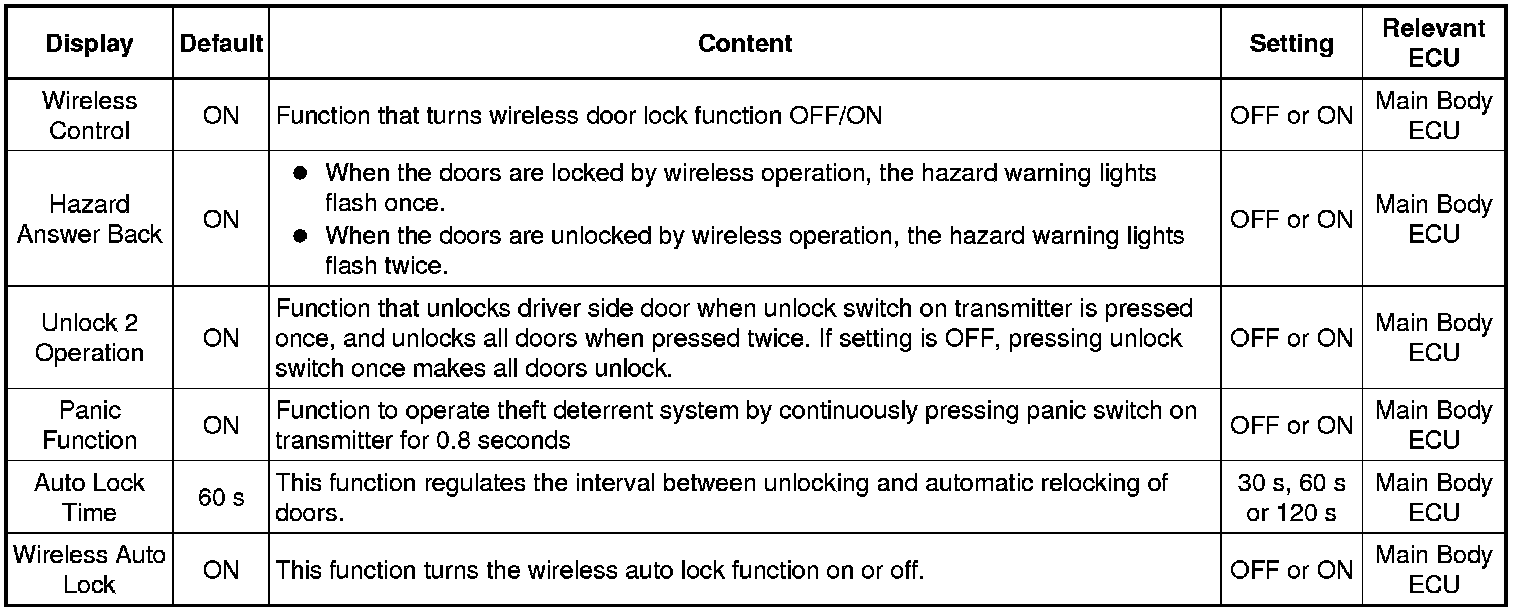

(5) Select the setting by referring to the table below.

Wireless Door Lock
