K41B CVT: CONTINUOUSLY VARIABLE TRANSAXLE SYSTEM: P2767: Input / Turbine Speed Sensor "B" Circuit No Signal
P2767 - Input / Turbine Speed Sensor "B" Circuit No Signal

DESCRIPTION

The ECM detects the input shaft rotation speed based on the signal from the primary pulley speed sensor (transmission revolution sensor NIN) and performs gear ratio change control.





MONITOR DESCRIPTION

The ECM receives a signal from the primary pulley speed sensor (transmission revolution sensor (NIN)) installed in the continuously variable transaxle and determines the input shaft speed in order to control the gear ratio. If the ECM detects no signal from the primary pulley speed sensor even while the vehicle is moving, it will conclude that there is a malfunction in the primary pulley speed sensor. The ECM will illuminate the MIL and set the DTC.

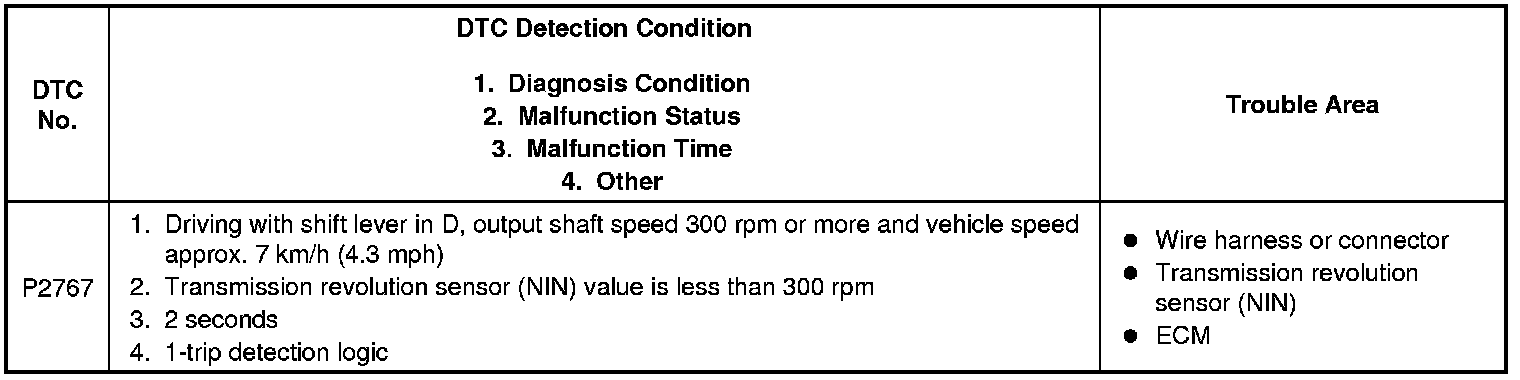

MONITOR STRATEGY

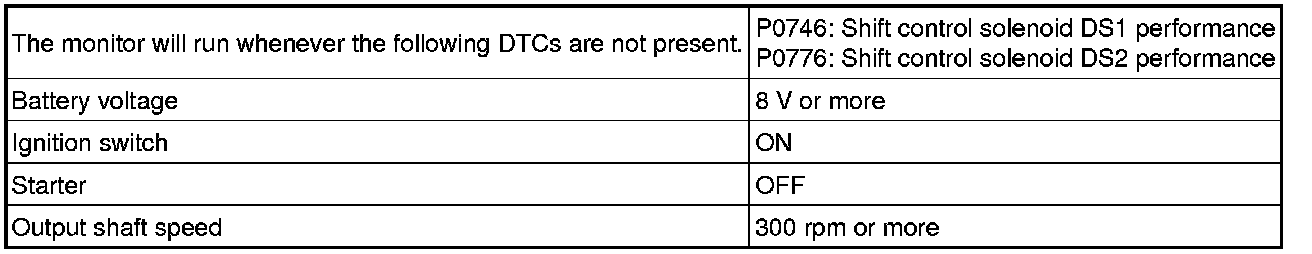

TYPICAL ENABLING CONDITIONS

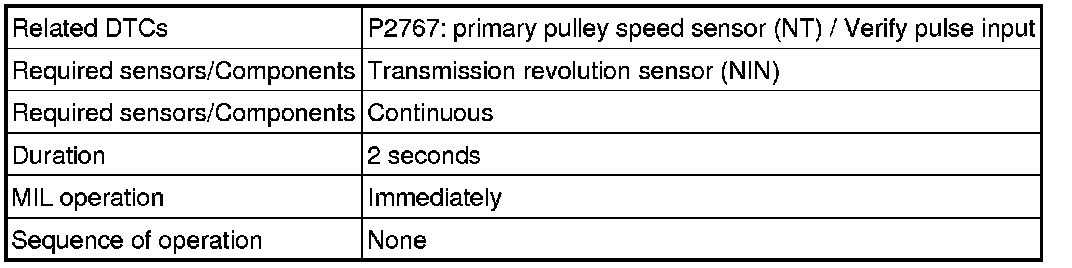

TYPICAL MALFUNCTION THRESHOLDS

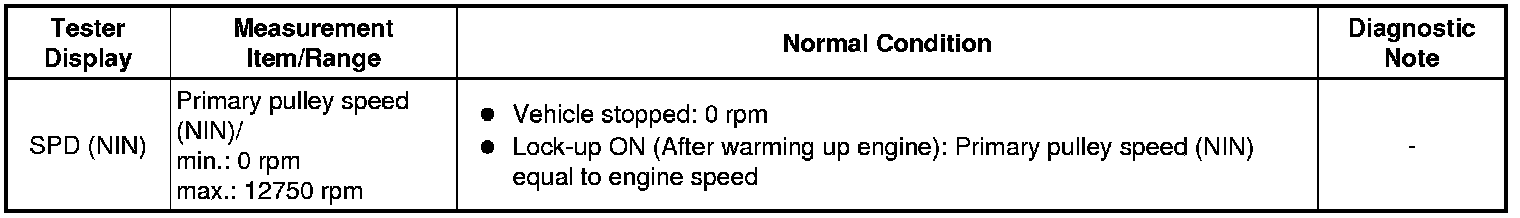

COMPONENT OPERATING RANGE

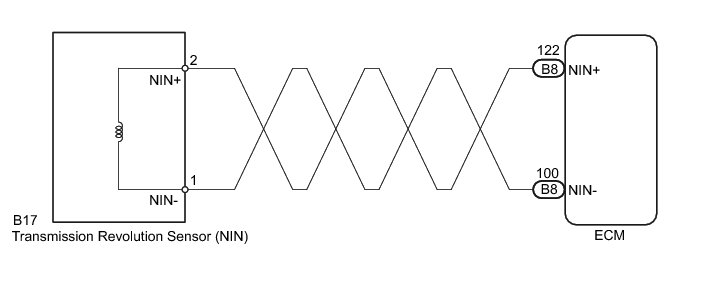

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
Perform the universal trip to clear permanent DTCs Reading and Clearing Diagnostic Trouble Codes.

PROCEDURE

1. READ VALUE USING TECHSTREAM (SPD (NIN))

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine and ECT / Data List.

(e) In accordance with the display on the Techstream, read the Data List.

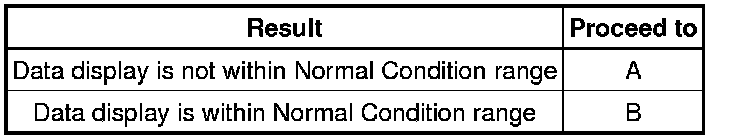

Result





B -- REPLACE ECM
A -- Continue to next step.

2. INSPECT TRANSMISSION REVOLUTION SENSOR (NIN)

(a) Remove the transmission revolution sensor (NIN) Removal.





(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





NG -- REPLACE TRANSMISSION REVOLUTION SENSOR (NIN) Removal
OK -- Continue to next step.

3. CHECK HARNESS AND CONNECTOR (TRANSMISSION REVOLUTION SENSOR (NIN) - ECM)

(a) Reconnect the transmission revolution sensor (NIN) connector.





(b) Disconnect the ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

4. REPLACE ECM P0705

NEXT -- Continue to next step.

5. PERFORM INITIALIZATION P0705

NEXT -- END
