1NR-FE ENGINE CONTROL: SFI SYSTEM: P1603, P1605: Engine Stall History


8. INSPECT MASS AIR FLOW METER

(a) Remove the mass air flow meter.

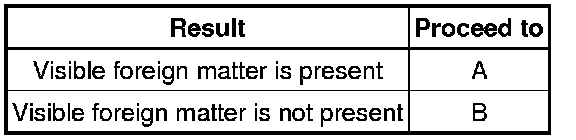

(b) Check for foreign matter in the air flow passage of the mass air flow meter.

Result





(c) Reinstall the mass air flow meter.

HINT
Even if the results are normal, the mass air flow meter may have been malfunctioning. Continue this inspection procedure until step 24, and if there are no problems with other parts, replace the mass air flow meter (refer to step 57).

B -- READ FREEZE FRAME DATA

A -- REPLACE MASS AIR FLOW METER Removal

9. PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE INJECTION VOLUME)

(a) Connect the Techstream to the DLC3.





(b) Start the engine.

(c) Turn the Techstream on.

(d) Warm up the engine.

(e) Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the Injection Volume.

(f) Change the fuel injection volume using the Techstream, and monitor the voltage output of the air fuel ratio and heated oxygen sensors displayed on the Techstream.

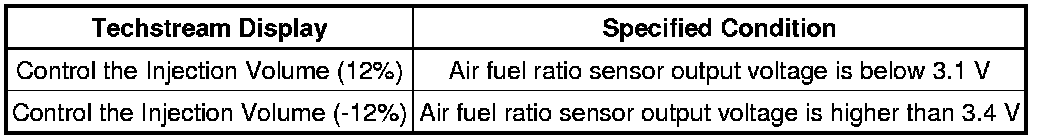

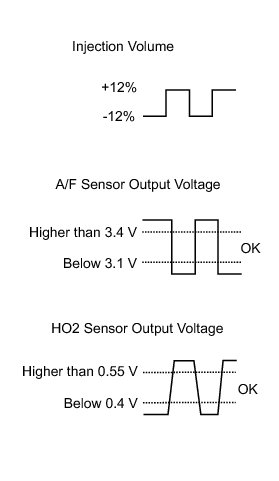

Standard:





Result





HINT
- The air fuel ratio sensor has an output delay of a few seconds and the heated oxygen sensor has a maximum output delay of approximately 20 seconds.
- Even if the results are normal, the air fuel ratio sensor may have been malfunctioning. Continue this inspection procedure until step 24, and if there are no problems with other parts, replace the air fuel ratio sensor (refer to step 57).

B -- READ FREEZE FRAME DATA
A -- Continue to next step.

10. INSPECT TERMINAL VOLTAGE (POWER SOURCE OF AIR FUEL RATIO SENSOR)

(a) Check the harnesses and connectors, referring to DTC P0031 inspection procedure P0031.

HINT
- Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
- Make sure there is not an excessive amount of force applied to the wire harness.

NG -- REPAIR POWER SOURCE CIRCUIT (A/F SENSOR POWER SOURCE) P0031
OK -- Continue to next step.

11. CHECK HARNESS AND CONNECTOR (AIR FUEL RATIO SENSOR - ECM)

(a) Check the harnesses and connectors, referring to DTC P2237 inspection procedure P2237.

HINT
- Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
- Make sure there is not an excessive amount of force applied to the wire harness.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE AIR FUEL RATIO SENSOR Removal

12. READ FREEZE FRAME DATA

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Using the Techstream, confirm the vehicle conditions recorded in the freeze frame data which were present when the DTC was stored Freeze Frame Data.

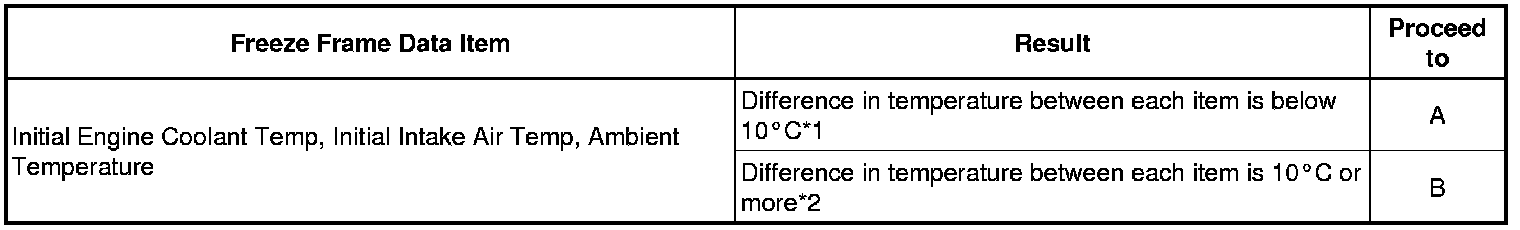

Result





HINT
- *1: A long time had elapsed after stopping the engine.
- *2: A long time had not elapsed after stopping the engine.

B -- READ FREEZE FRAME DATA
A -- Continue to next step.

13. READ FREEZE FRAME DATA

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Using the Techstream, confirm the vehicle conditions recorded in the freeze frame data which were present when the DTC was stored Freeze Frame Data.

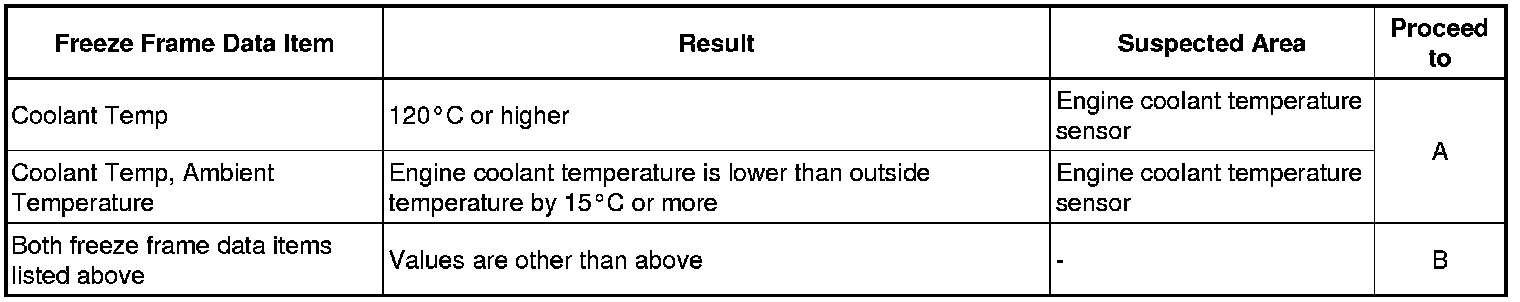

Result





HINT
This step is not directly related to engine stall.

B -- INSPECT ENGINE COOLANT TEMPERATURE SENSOR

C -- READ FREEZE FRAME DATA
A -- Continue to next step.

14. INSPECT WATER INLET (THERMOSTAT)

(a) Inspect the water inlet (thermostat) Testing and Inspection.

Result





HINT
This step is not directly related to engine stall.

B -- INSPECT ENGINE COOLANT TEMPERATURE SENSOR

A -- REPLACE THERMOSTAT Removal

15. READ FREEZE FRAME DATA

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Using the Techstream, confirm the vehicle conditions recorded in the freeze frame data which were present when the DTC was stored Freeze Frame Data.

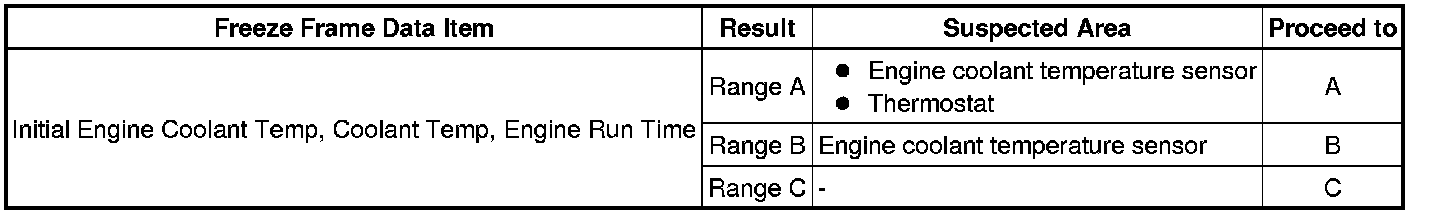

Result





B -- READ FREEZE FRAME DATA
A -- Continue to next step.

16. INSPECT ENGINE COOLANT TEMPERATURE SENSOR

(a) Inspect the engine coolant temperature sensor Testing and Inspection.

Result





HINT
Even if the results are normal, the engine coolant temperature sensor may have been malfunctioning. Continue this inspection procedure until step 24, and if there are no problems with other parts, replace the engine coolant temperature sensor (refer to step 57).

B -- READ FREEZE FRAME DATA

A -- REPLACE ENGINE COOLANT TEMPERATURE SENSOR Removal

17. READ FREEZE FRAME DATA

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Using the Techstream, confirm the vehicle conditions recorded in the freeze frame data which were present when the DTC was stored Freeze Frame Data.

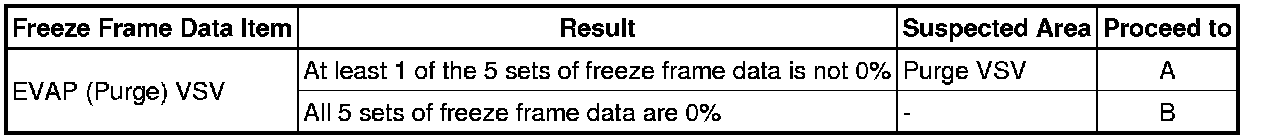

Result





HINT
If the purge VSV is stuck closed, air fuel ratio compensation by the purge VSV is incorrectly adjusted, and then the air fuel ratio becomes lean and the engine may stall.

B -- PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE FUEL PUMP/SPEED)
A -- Continue to next step.

18. PERFORM ACTIVE TEST USING TECHSTREAM (ACTIVATE THE VSV FOR EVAP CONTROL)

(a) Disconnect the purge hose (on the canister side) of the purge VSV.





Text in Illustration





(b) Connect the Techstream to the DLC3.

(c) Turn the ignition switch to ON.

(d) Start the engine.

(e) Enter the following menus: Powertrain / Engine and ECT / Active Test / Activate the VSV for Evap Control.

(f) Operate the purge VSV and check the air flow.

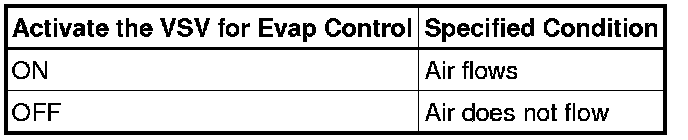

OK:





Result





HINT
- Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
- Even if the results are normal, the purge VSV may have been malfunctioning. Continue this inspection procedure until step 24, and if there are no problems with other parts, replace the purge VSV (refer to step 57).

B -- PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE FUEL PUMP/SPEED)
A -- Continue to next step.

19. INSPECT PURGE VSV

(a) Inspect the purge VSV Testing and Inspection.

NG -- REPLACE PURGE VSV Removal
OK -- Continue to next step.

20. INSPECT TERMINAL VOLTAGE (POWER SOURCE OF PURGE VSV)

(a) Check the harnesses and connectors, referring to EVAP System inspection procedure EVAP System.

HINT
- Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
- Make sure there is not an excessive amount of force applied to the wire harness.

NG -- REPAIR POWER SOURCE CIRCUIT (PURGE VSV POWER SOURCE) EVAP System
OK -- Continue to next step.

21. CHECK HARNESS AND CONNECTOR (PURGE VSV - ECM)

(a) Check the harnesses and connectors, referring to EVAP System inspection procedure EVAP System.

HINT
- Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
- Make sure there is not an excessive amount of force applied to the wire harness.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE ECM Removal

22. PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE FUEL PUMP/SPEED)

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the Fuel Pump/Speed.

(d) When performing the Active Test, check for an operating sound from the fuel pump.

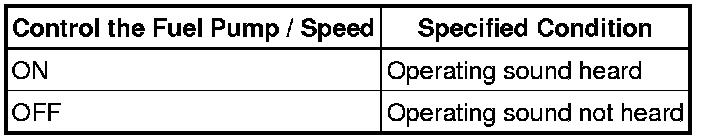

OK:





Result





HINT
- Jiggle the wire harness and connector to increase the likelihood of detecting malfunctions that do not always occur.
- While performing the Active Test, make sure that there is no fuel leakage from the pipes, no signs that fuel has leaked, and no fuel smell.
- If the fuel pump operating noise is abnormal, proceed to step 23.

B -- CHECK FUEL SYSTEM
A -- Continue to next step.

23. INSPECT FUEL PUMP (RESISTANCE)

(a) Inspect the fuel pump Inspection.

NG -- REPLACE FUEL PUMP Removal

OK -- CHECK FUEL PUMP CONTROL CIRCUIT Fuel Pump Control Circuit

24. CHECK FUEL SYSTEM

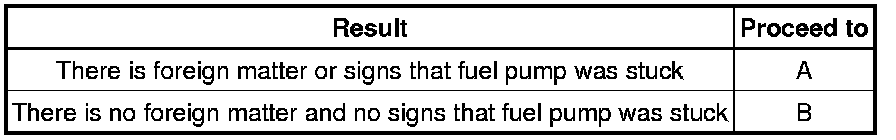

(a) Check for foreign matter such as iron particles around the fuel pump, and for signs that the fuel pump was stuck.

Result





HINT
If there is foreign matter such as iron particles on the fuel pump, remove the foreign matter.

B -- REPLACE MALFUNCTIONING PARTS

A -- REPAIR OR REPLACE FUEL SYSTEM

25. READ FREEZE FRAME DATA

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Using the Techstream, confirm the vehicle conditions recorded in the freeze frame data which were present when the DTC was stored Freeze Frame Data.

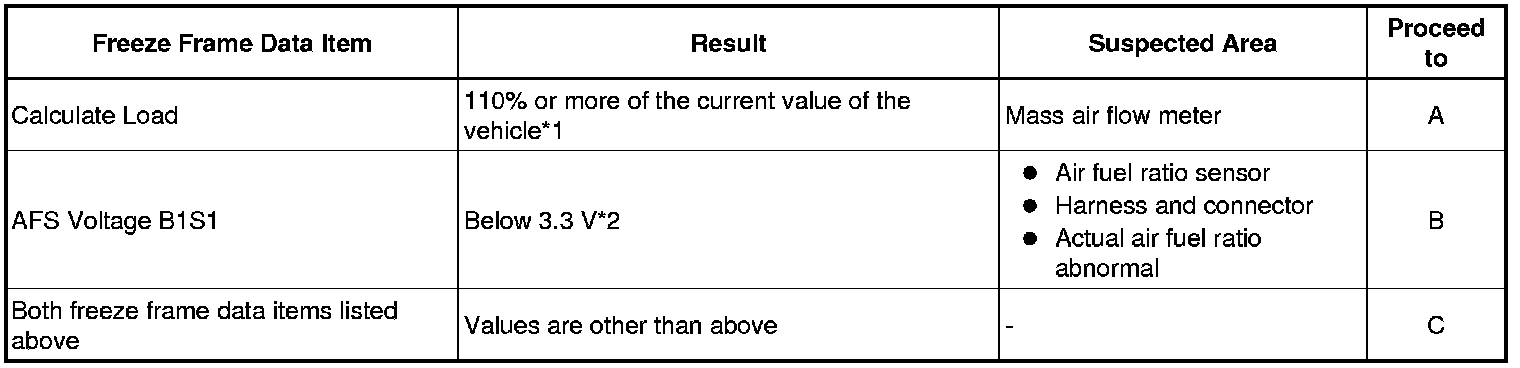

Result





HINT
- Try to operate the vehicle under the conditions recorded in the freeze frame data which were present when the malfunction occurred. Confirm the data at this time and the data when the engine is idling (engine warmed up, no load, and shift lever in D or N) and compare these data with the freeze frame data.
- *1: If the mass air flow meter is malfunctioning and incorrectly measures the intake air volume to be higher than the actual volume of air flowing through the intake manifold, the freeze frame data will show a high engine load value.
- *2: As the air fuel ratio sensor output is low before the sensor warms up, the value at that time cannot be used for diagnosis. If the air fuel ratio sensor is malfunctioning and constantly outputs a value indicating the air fuel ratio is rich, the actual air fuel ratio will become lean and the engine may stall.

B -- PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE INJECTION VOLUME)

C -- READ FREEZE FRAME DATA
A -- Continue to next step.

26. INSPECT MASS AIR FLOW METER

(a) Remove the mass air flow meter.

(b) Check for foreign matter in the air flow passage of the mass air flow meter.

Result





HINT
Even if the results are normal, the mass air flow meter may have been malfunctioning. Continue this inspection procedure until step 34, and if there are no problems with other parts, replace the mass air flow meter (refer to step 57).

B -- READ FREEZE FRAME DATA

A -- REPLACE MASS AIR FLOW METER Removal

27. PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE INJECTION VOLUME)

(a) Connect the Techstream to the DLC3.





(b) Start the engine.

(c) Turn the Techstream on.

(d) Warm up the engine.

(e) Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the Injection Volume.

(f) Change the fuel injection volume using the Techstream, and monitor the voltage output of the air fuel ratio and heated oxygen sensors displayed on the Techstream.

Standard:





Result





HINT
- The air fuel ratio sensor has an output delay of a few seconds and the heated oxygen sensor has a maximum output delay of approximately 20 seconds.
- Even if the results are normal, the air fuel ratio sensor may have been malfunctioning. Continue this inspection procedure until step 34, and if there are no problems with other parts, replace the air fuel ratio sensor (refer to step 57).

B -- READ FREEZE FRAME DATA
A -- Continue to next step.
