K41B CVT: CONTINUOUSLY VARIABLE TRANSAXLE SYSTEM: P1586: Acceleration Sensor Malfunction
P1586 - Acceleration Sensor Malfunction

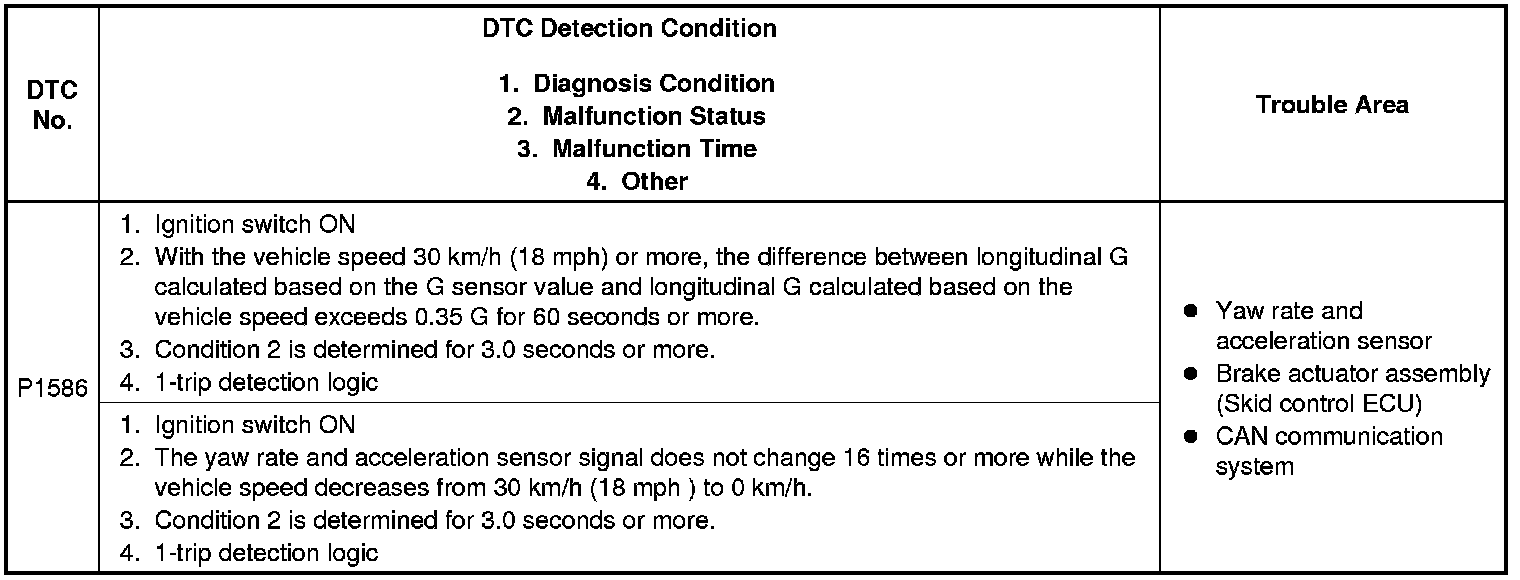

DESCRIPTION

The ECM determines the vehicle inclination based on a signal from the yaw rate and acceleration sensor to perform neutral control. If a malfunction is determined in the yaw rate and acceleration sensor based on a malfunction signal from the brake actuator assembly, the ECM cancels neutral control as a fail-safe function.

HINT
- The ECM receives a yaw rate and acceleration sensor signal from the brake actuator assembly via CAN communication.
If a CAN communication DTC is output, perform troubleshooting for that DTC first.

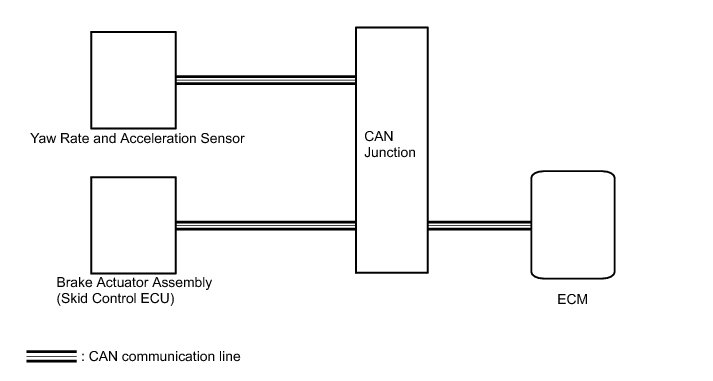

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
Perform the universal trip to clear permanent DTCs Reading and Clearing Diagnostic Trouble Codes.

PROCEDURE

1. CHECK DTC OUTPUT (CAN COMMUNICATION SYSTEM) P1585

B -- GO TO CAN COMMUNICATION SYSTEM How to Proceed With Troubleshooting
A -- Continue to next step.

2. CHECK OTHER DTC OUTPUT (IN ADDITION TO DTC P1586)

(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

(b) Perform a road test where the vehicle is driven at 30 km/ h (18 mph) or more, the brakes are applied at least 16 times and the vehicle is finally stopped.

(c) Connect the Techstream to the DLC3.

(d) Turn the ignition switch to ON.

(e) Turn the Techstream on.

(f) Enter the following menus: Powertrain / Engine and ECT / DTC / Current or Pending.

(g) Read the DTCs using the Techstream.

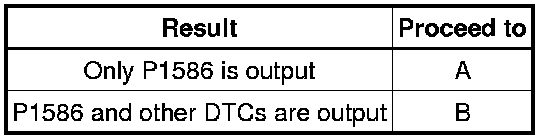

Result





HINT
If any other codes besides DTC P1586 are output, perform troubleshooting for those DTCs first.

B -- GO TO DTC CHART K41B Continuously Variable Transmission/Transaxle, CVT
A -- Continue to next step.

3. READ VALUE USING TECHSTREAM (G SENSOR) P1585

B -- REPLACE BRAKE ACTUATOR ASSEMBLY Removal
A -- Continue to next step.

4. REPLACE YAW RATE AND ACCELERATION SENSOR P1585

NEXT -- Continue to next step.

5. PERFORM INITIALIZATION P0705

NEXT -- END
