SUPPLEMENTAL RESTRAINT SYSTEMS: AIRBAG SYSTEM: B1649/82: Rear Sensor Initialization Incomplete LH
B1649/82 - Rear Sensor Initialization Incomplete LH

DESCRIPTION

The circuit for the rear side collision sensor LH (to determine deployment of the rear window curtain shield airbag) is composed of the center airbag sensor assembly and rear airbag sensor LH.

The rear airbag sensor LH detects impacts to the vehicle and sends signals to the center airbag sensor assembly to determine if the airbag should be deployed.

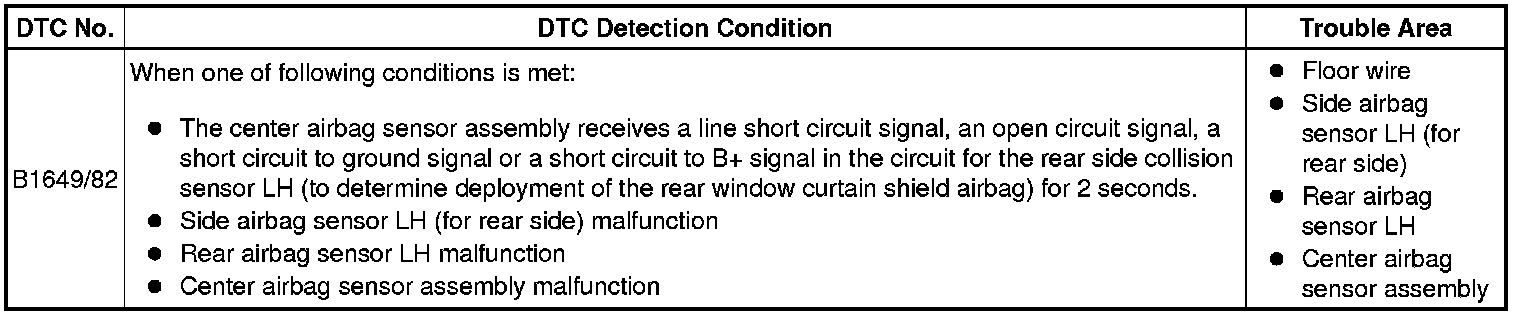

DTC B1649/82 is recorded when a malfunction is detected in the circuit for the rear side collision sensor LH (to determine deployment of the rear window curtain shield airbag).





WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK CONNECTION OF CONNECTORS

(a) Turn the ignition switch off.

(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.

(c) Check that the connectors are properly connected to the side airbag sensor LH (for rear side) and rear airbag sensor LH.

OK:

The connectors are properly connected.

NG -- CONNECT CONNECTORS PROPERLY
OK -- Continue to next step.

2. CHECK CONNECTORS

(a) Disconnect the connectors from the side airbag sensor LH (for rear side) and rear airbag sensor LH.

(b) Check that the connectors (on the side airbag sensor LH (for rear side) side and rear airbag sensor LH side) are not damaged.

OK:

The connectors are not deformed or damaged.

NG -- REPLACE FLOOR WIRE
OK -- Continue to next step.

3. CHECK SIDE AIRBAG SENSOR LH (FOR REAR SIDE)





(a) Interchange the side airbag sensor LH (for rear side) with side airbag sensor RH (for rear side) and connect the connectors to them.

(b) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.

(c) Turn the ignition switch to ON, and wait for at least 60 seconds.

(d) Clear the DTCs stored in the memory Reading and Clearing Diagnostic Trouble Codes.

(e) Turn the ignition switch off.

(f) Turn the ignition switch to ON, and wait for at least 60 seconds.

(g) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.

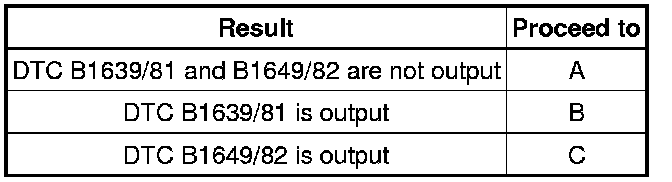

Result





Text in Illustration





(h) Turn the ignition switch off.

(i) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

(j) Return the side airbag sensor LH (for rear side) and side airbag sensor RH (for rear side) to their original positions and connect the connectors to them.

A -- USE SIMULATION METHOD TO CHECK Diagnosis System

B -- REPLACE SIDE AIRBAG SENSOR LH (FOR REAR SIDE) Removal
C -- Continue to next step.

4. CHECK FLOOR WIRE (SIDE AIRBAG SENSOR LH (FOR REAR SIDE) - REAR AIRBAG SENSOR LH)

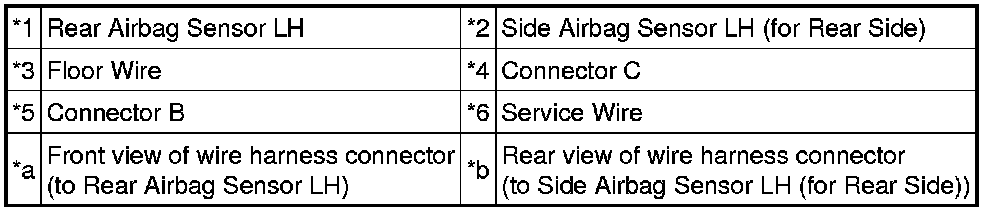

Text in Illustration





(a) Disconnect the connectors from the rear airbag sensor LH and side airbag sensor LH.

(b) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.

(c) Turn the ignition switch to ON.

(d) Measure the voltage according to the value(s) in the table below.

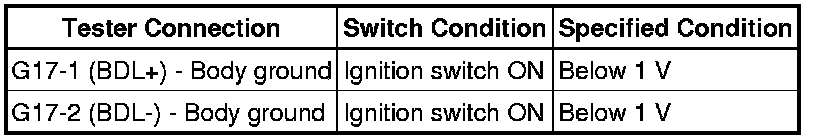

Standard Voltage:





(e) Turn the ignition switch off.

(f) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.

(g) Using a service wire, connect terminals 2 and 1 of connector C.

NOTICE:
Do not forcibly insert a service wire into the terminals of the connector when connecting the wire.

(h) Measure the resistance according to the value(s) in the table below.

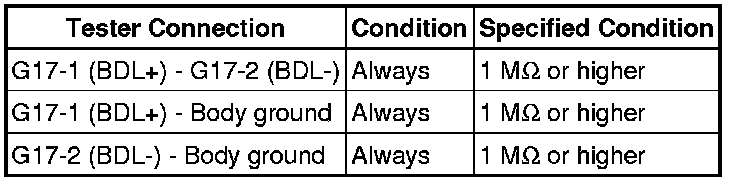

Standard Resistance:





(i) Disconnect the service wire from connector C.

(j) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPLACE FLOOR WIRE
OK -- Continue to next step.

5. CHECK REAR AIRBAG SENSOR LH





(a) Interchange the rear airbag sensor LH with rear airbag sensor RH and connect the connectors to them.

(b) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.

(c) Turn the ignition switch to ON, and wait for at least 60 seconds.

(d) Clear the DTCs stored in the memory Reading and Clearing Diagnostic Trouble Codes.

(e) Turn the ignition switch off.

(f) Turn the ignition switch to ON, and wait for at least 60 seconds.

(g) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.

Result





Text in Illustration





(h) Turn the ignition switch off.

(i) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

(j) Return the rear airbag sensor LH and rear airbag sensor RH to their original positions and connect the connectors to them.

A -- USE SIMULATION METHOD TO CHECK Diagnosis System

B -- REPLACE REAR AIRBAG SENSOR LH Removal

C -- REPLACE CENTER AIRBAG SENSOR ASSEMBLY Removal
