DTC 32

SUPPLEMENTAL RESTRAINT SYSTEMS: AIRBAG SYSTEM: B1650/32: Occupant Classification System Malfunction
B1650/32 - Occupant Classification System Malfunction

DESCRIPTION

The occupant classification system circuit consists of the center airbag sensor assembly and the occupant classification system.

If the center airbag sensor assembly receives signals from the occupant classification ECU, it determines whether the front passenger airbag, the passenger side knee airbag, the front seat side airbag RH and front seat outer belt should be operated.

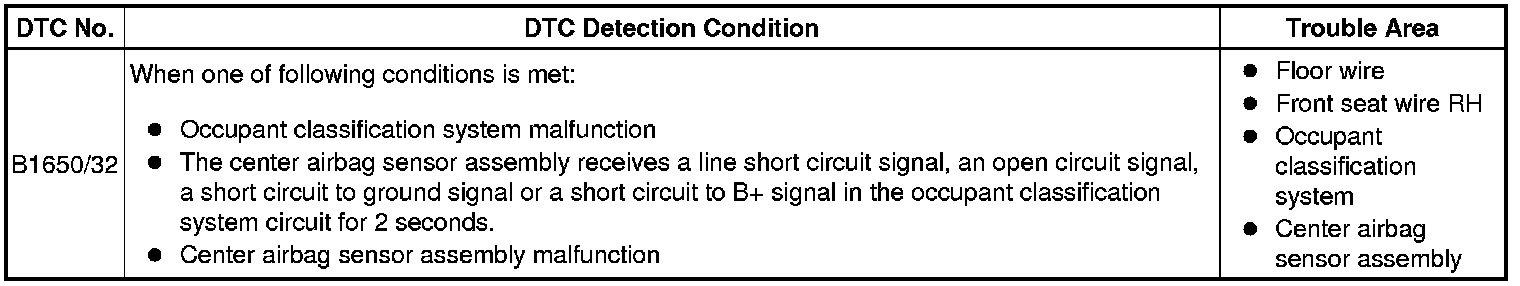

DTC B1650/32 is stored when a malfunction is detected in the occupant classification system circuit.

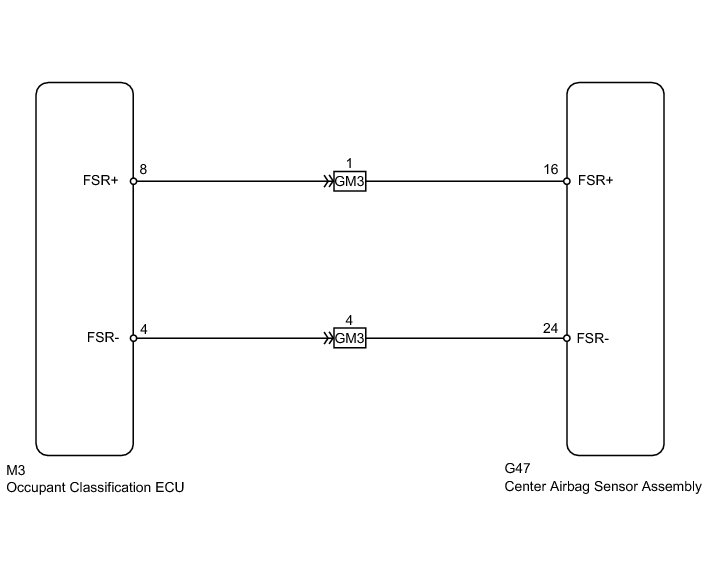

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC (OCCUPANT CLASSIFICATION ECU)

(a) Turn the ignition switch to ON, and wait for at least 10 seconds.

(b) Check for the DTCs of the occupant classification ECU Reading and Clearing Diagnostic Trouble Codes.

OK:

DTC is not output.

NG -- REPAIR CIRCUITS INDICATED BY OUTPUT DTCS Occupant Classification System
OK -- Continue to next step.

2. CHECK DTC (CENTER AIRBAG SENSOR)

(a) Turn the ignition switch to ON, and wait for at least 60 seconds.

(b) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

(c) Turn the ignition switch off.

(d) Turn the ignition switch to ON, and wait for at least 60 seconds.

(e) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.

OK:

DTC B1650/32 is not output.

HINT
Codes other than DTC B1650/32 may be output at this time, but they are not related to this check.

NG -- CHECK CONNECTION OF CONNECTORS

OK -- USE SIMULATION METHOD TO CHECK Diagnosis System

3. CHECK CONNECTION OF CONNECTORS

(a) Turn the ignition switch off.

(b) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

(c) Check that the connectors are properly connected to the center airbag sensor assembly and the occupant classification ECU.

OK:

The connectors are properly connected.

NG -- CONNECT CONNECTORS PROPERLY
OK -- Continue to next step.

4. CHECK CONNECTORS

(a) Disconnect the connectors from the center airbag sensor assembly and the occupant classification ECU.

(b) Check that the connectors (on the center airbag sensor assembly side and occupant classification ECU side) are not damaged.

OK:

The connectors are not deformed or damaged.

NG -- REPLACE HARNESS AND CONNECTOR
OK -- Continue to next step.

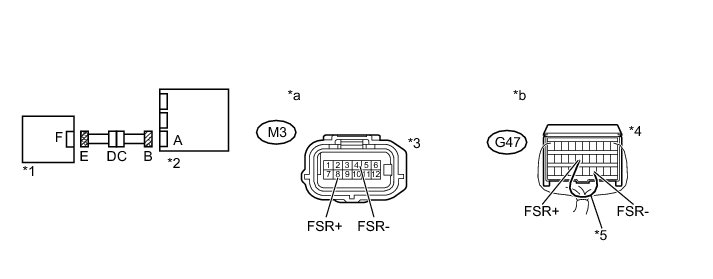

5. CHECK OCCUPANT CLASSIFICATION SYSTEM CIRCUIT

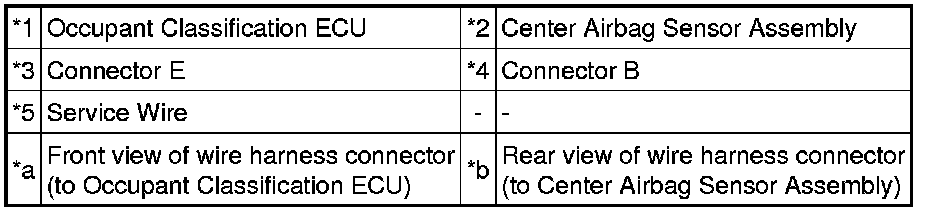

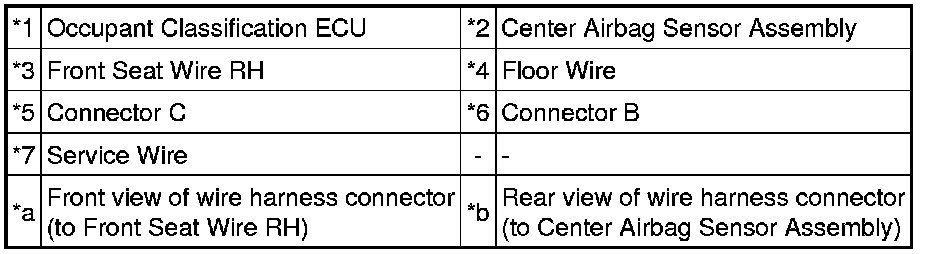

Text in Illustration





(a) Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

(b) Turn the ignition switch to ON.

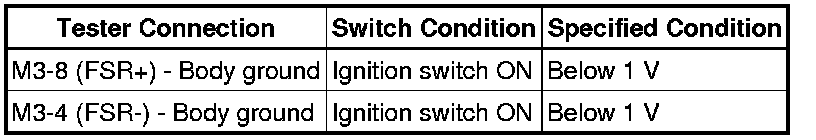

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





(d) Turn the ignition switch off.

(e) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

(f) Using a service wire, connect terminals 16 and 24 of connector B.

NOTICE:
Do not forcibly insert a service wire into the terminals of the connector when connecting the wire.

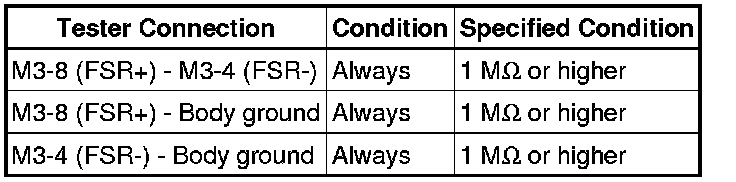

(g) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





(h) Disconnect the service wire from connector B.

(i) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- CHECK FLOOR WIRE (CENTER AIRBAG SENSOR ASSEMBLY - FRONT SEAT WIRE RH)

OK -- REPLACE CENTER AIRBAG SENSOR ASSEMBLY Removal

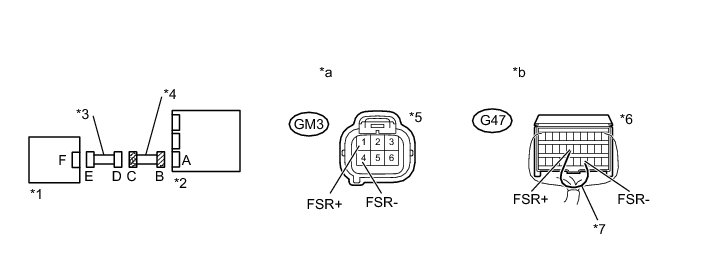

6. CHECK FLOOR WIRE (CENTER AIRBAG SENSOR ASSEMBLY - FRONT SEAT WIRE RH)





Text in Illustration





(a) Disconnect the front seat wire RH connector from the floor wire.

(b) Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

(c) Turn the ignition switch to ON.

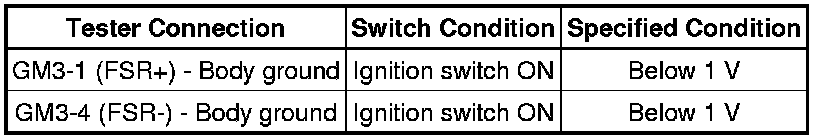

(d) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





(e) Turn the ignition switch off.

(f) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

(g) Using a service wire, connect terminal 16 and 24 of connector B.

NOTICE:
Do not forcibly insert a service wire into the terminals of the connector when connecting the wire.

(h) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





(i) Disconnect the service wire from connector B.

(j) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPLACE FLOOR WIRE

OK -- REPLACE FRONT SEAT WIRE RH
