Front Airbag Sensor LH Malfunction - Airbag System

SUPPLEMENTAL RESTRAINT SYSTEMS: AIRBAG SYSTEM: B1615/14: Front Airbag Sensor LH Malfunction
B1615/14 - Front Airbag Sensor LH Malfunction

DESCRIPTION

The front airbag sensor LH consists of the diagnostic circuit and the frontal deceleration sensor, etc.

If the center airbag sensor assembly receives signals from the frontal deceleration sensor, it determines whether the SRS should be activated.

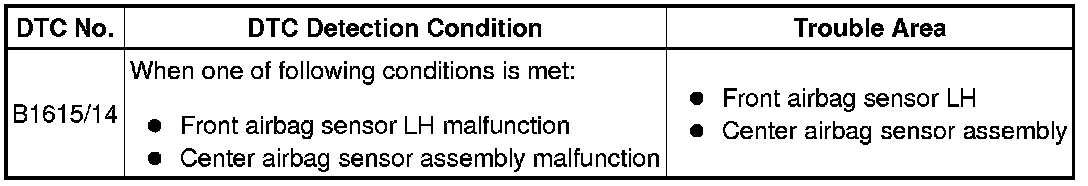

DTC B1615/14 is recorded when a malfunction is detected in the front airbag sensor LH circuit.

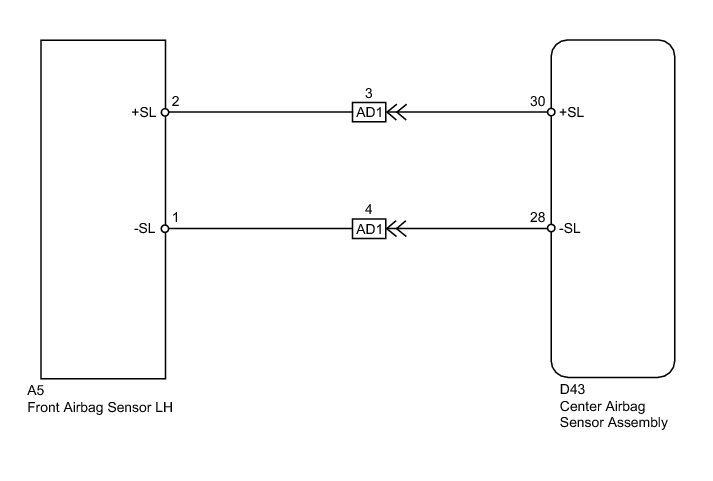

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK FRONT AIRBAG SENSOR LH

(a) Turn the ignition switch off.





(b) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

(c) Interchange the front airbag sensor LH with RH and connect the connectors to them.

(d) Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

(e) Turn the ignition switch to ON, and wait for at least 60 seconds.

(f) Clear the DTCs stored in the memory Reading and Clearing Diagnostic Trouble Codes.

(g) Turn the ignition switch off.

(h) Turn the ignition switch to ON, and wait for at least 60 seconds.

(i) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.

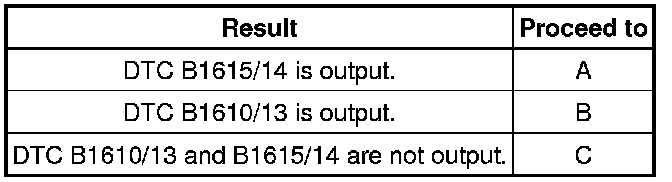

Result





Text in Illustration





HINT
DTCs other than B1610/13 and B1615/14 may be output at this time, but they are not related to this check.

(j) Turn the ignition switch off.

(k) Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

(l) Return the front airbag sensor LH and front airbag sensor RH to their original positions and connect the connectors to them.

B -- REPLACE FRONT AIRBAG SENSOR LH Removal

C -- USE SIMULATION METHOD TO CHECK Diagnosis System

A -- REPLACE CENTER AIRBAG SENSOR ASSEMBLY Removal
