Home >> Scion >> 2012 >> iQ L4-1.3L (1NR-FE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Diagnostic Trouble Code Descriptions >> Power Window Control System

Power Window Control System

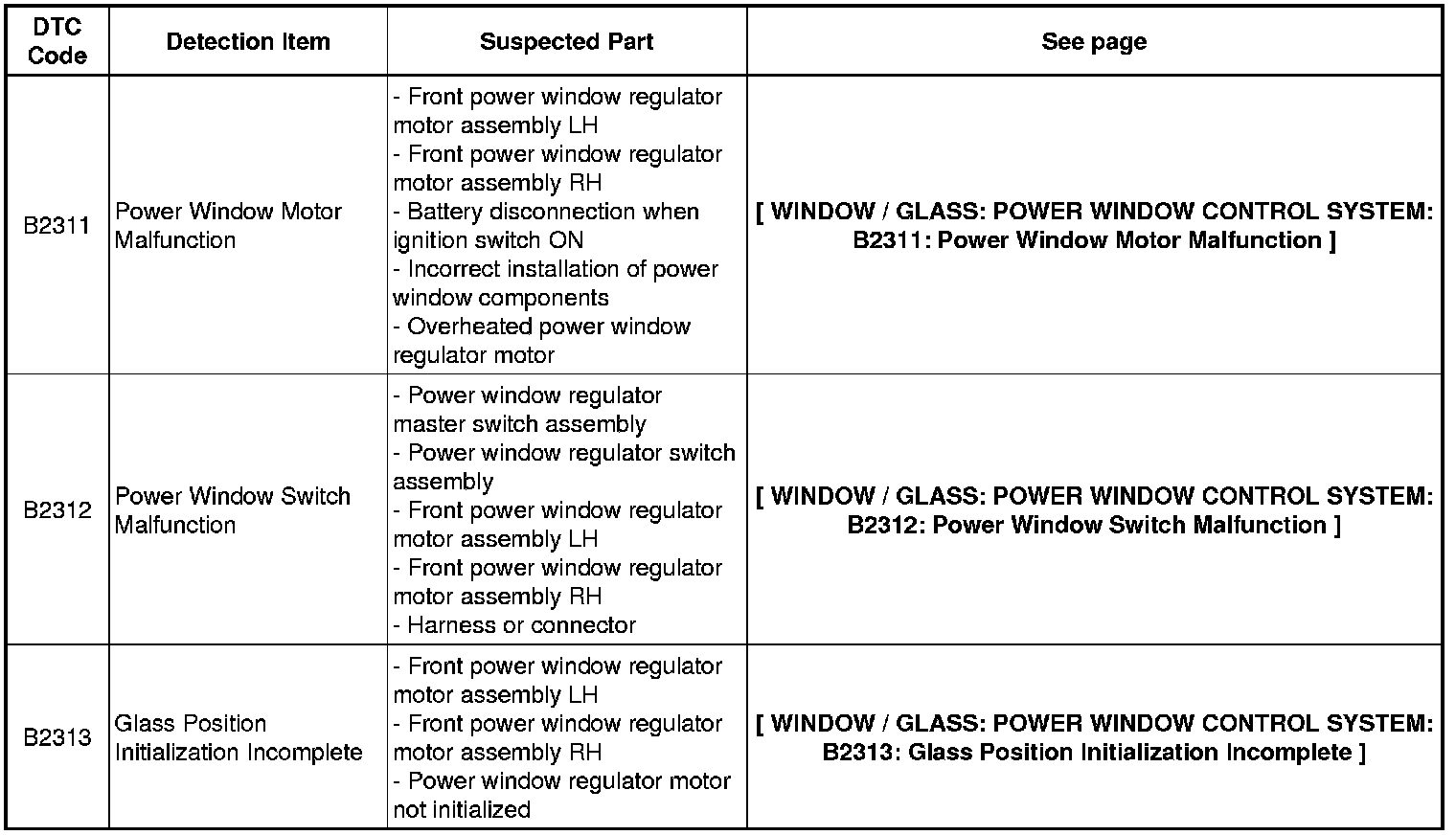

WINDOW / GLASS: POWER WINDOW CONTROL SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

HINT
If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code. For details of the code, refer to "See page" below.
