Power Steering System

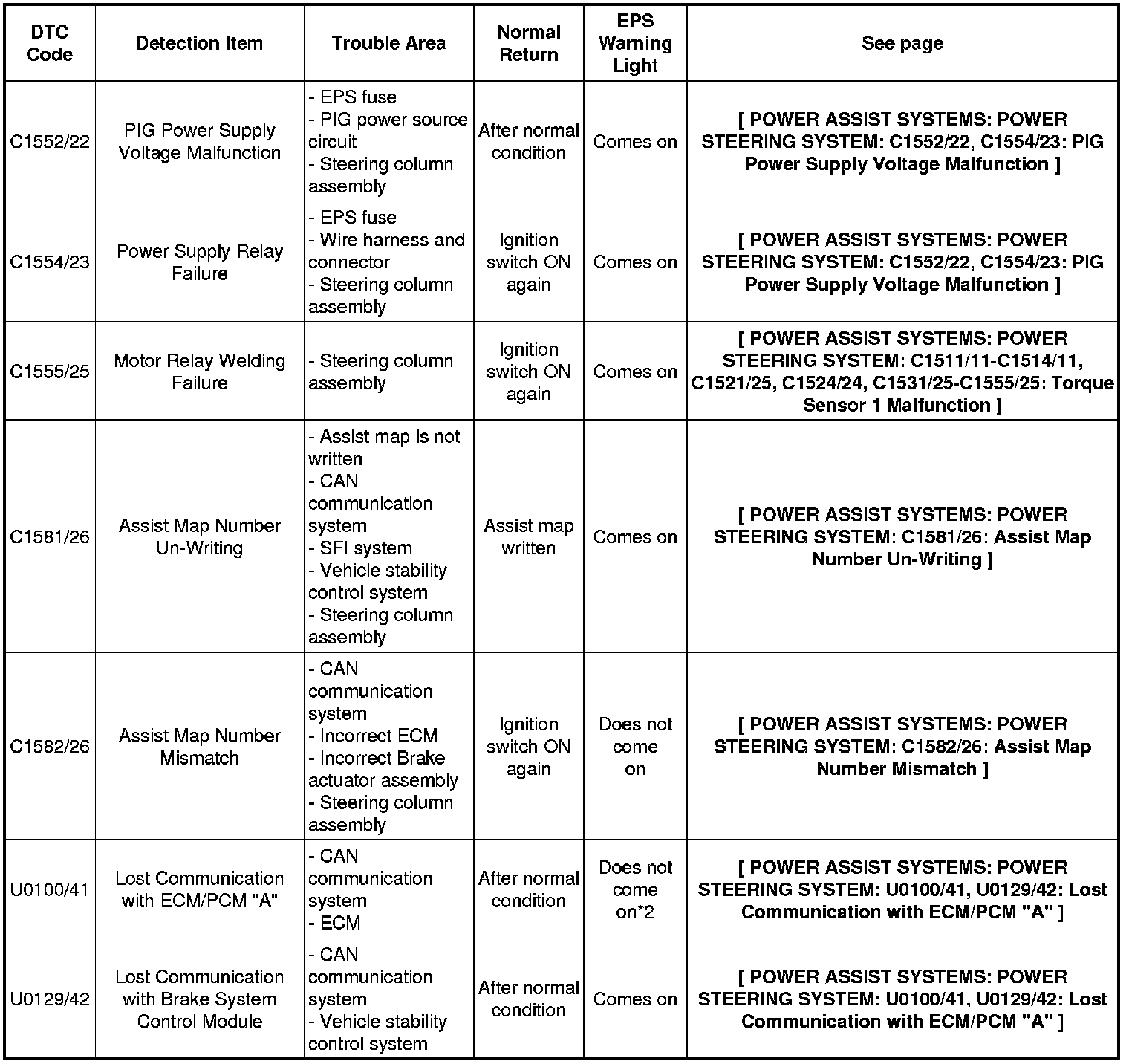

POWER ASSIST SYSTEMS: POWER STEERING SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

HINT
If any DTCs are displayed during the DTC check, inspect the circuit listed for those DTCs. For details of each DTC, refer to the page indicated in the DTC chart.

Power Steering System









*1: The offset is set to the default value and control is continued. In this case, the warning light illuminates.

*2: When an error occurs during steering assist, the warning light does not illuminate. For errors that occur before assist (at the time of the decision to start assist), the warning light illuminates.
