Meter / Gauge System

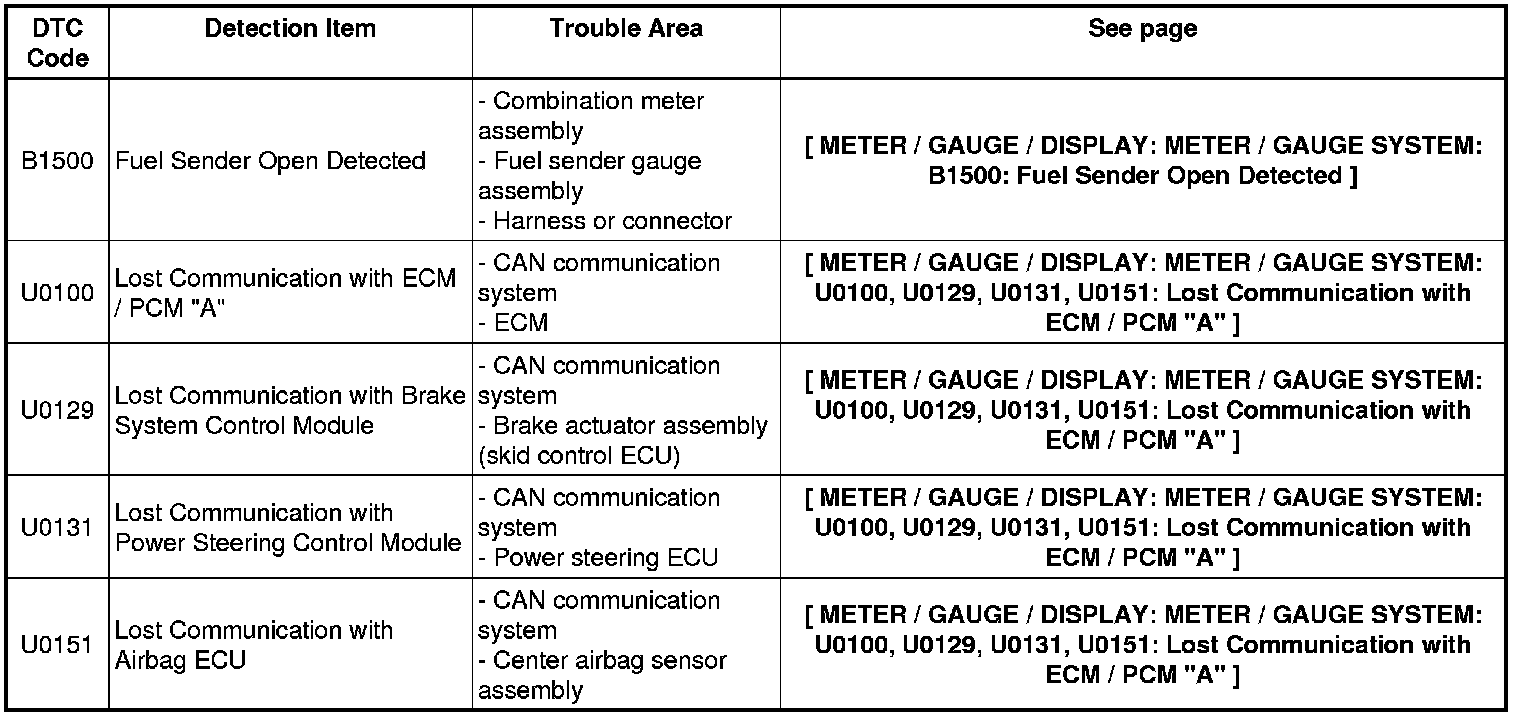

METER / GAUGE / DISPLAY: METER / GAUGE SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

* If a trouble code is displayed during the DTC check, inspect the suspected areas listed for that code. For details of the code, refer to "See page" in the DTC chart.

Meter / Gauge System
