Air Conditioning System

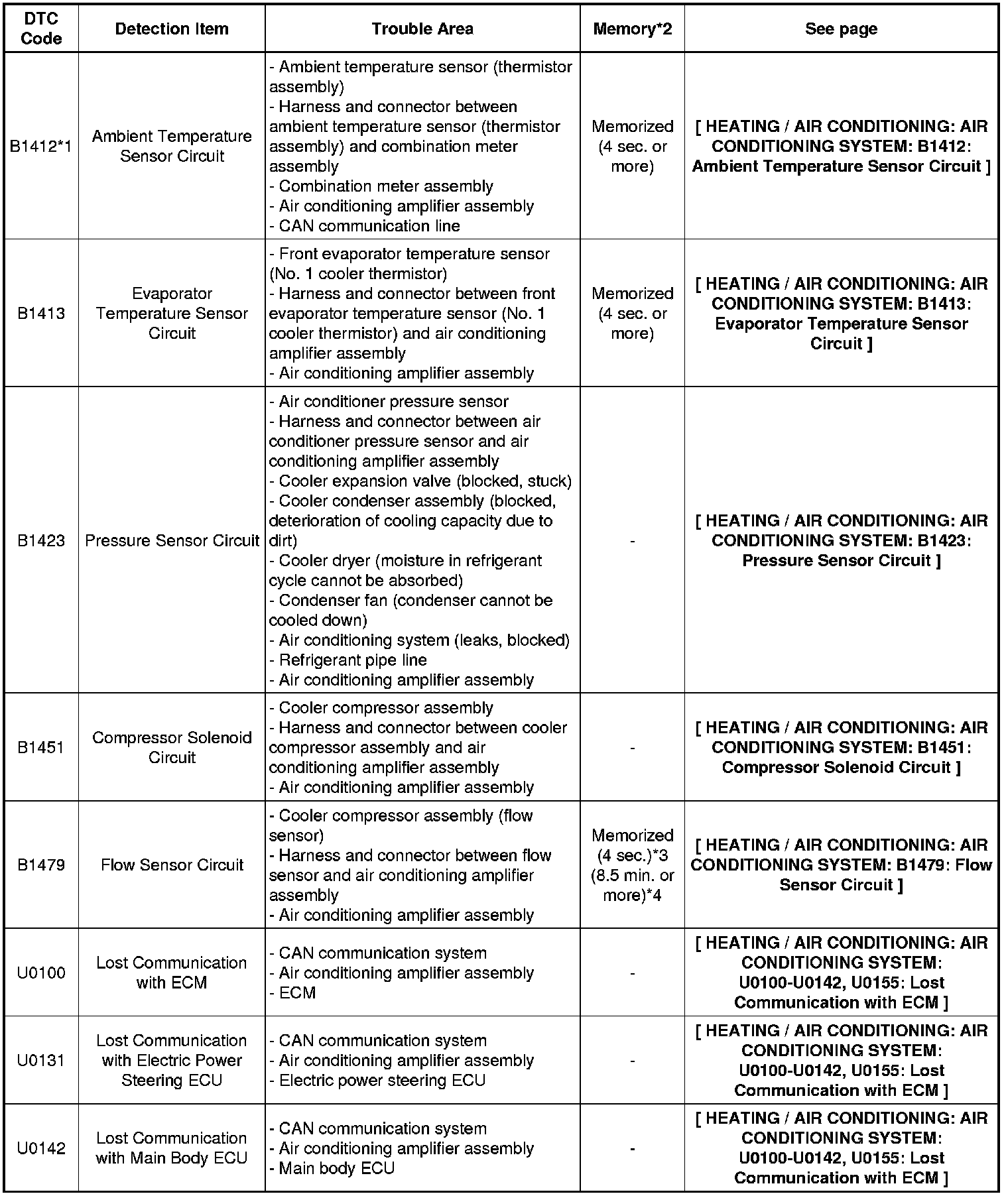

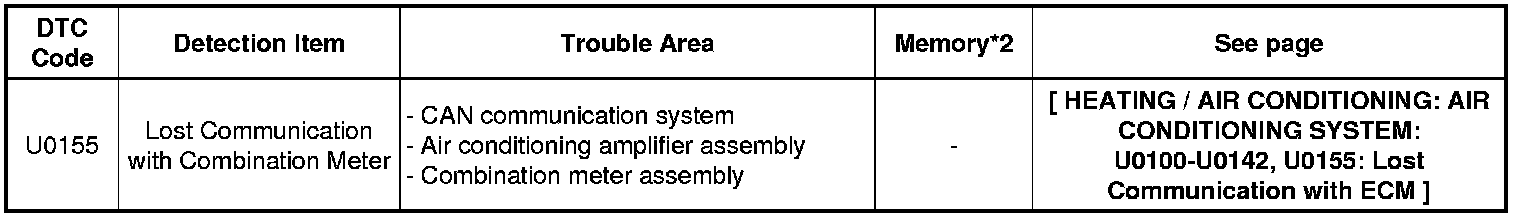

HEATING / AIR CONDITIONING: AIR CONDITIONING SYSTEM: DIAGNOSTIC TROUBLE CODE CHART
HINT
* *1: If the ambient temperature is approximately -52.9°C (-63.22°F) or lower, DTC B1412 may be output even though the system is normal.
* *2: The air conditioning amplifier assembly memorizes the DTC of the respective malfunction if it has occurred for the period of time indicated in the brackets.
* *3: Circuit is open or shorted.
* *4: Sensor is stuck
