C1541





POWER ASSIST SYSTEMS: POWER STEERING SYSTEM: C1541/13: Vehicle Speed Signal
C1541/13 - Vehicle Speed Signal

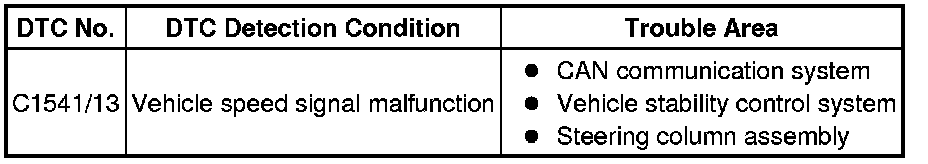

DESCRIPTION

The vehicle speed signal from the brake actuator assembly (skid control ECU) is input to the electronic power steering column assembly (power steering ECU) through CAN communication.

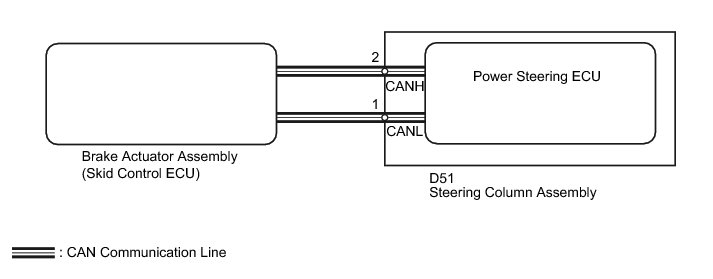

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
When the steering column assembly is replaced, perform the assist map writing Programming and Relearning.

PROCEDURE

1. CHECK DTC OUTPUT (CAN COMMUNICATION SYSTEM)

(a) Check for DTCs of the CAN communication system Diagnosis System.

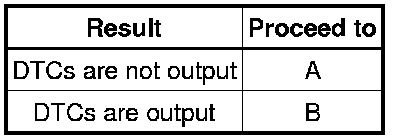

Result





B -- GO TO CAN COMMUNICATION SYSTEM How to Proceed With Troubleshooting
A -- Continue to next step.

2. CHECK DTC OUTPUT (VEHICLE STABILITY CONTROL SYSTEM)

(a) Check for DTCs of the vehicle stability control system Reading and Clearing Diagnostic Trouble Codes.

Result





B -- GO TO VEHICLE STABILITY CONTROL SYSTEM Vehicle Stability Control System

A -- REPLACE STEERING COLUMN ASSEMBLY Removal
