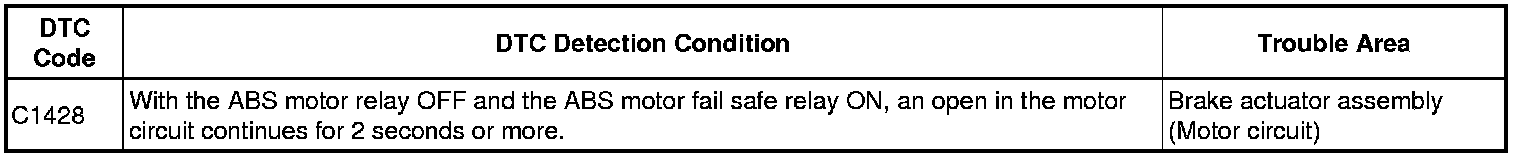

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: VEHICLE STABILITY CONTROL SYSTEM: C1428: Motor Circuit Malfunction
C1428 - Motor Circuit Malfunction

DESCRIPTION





WIRING DIAGRAM

Refer to DTCs C0273, C0274 and C1361 C0273.

INSPECTION PROCEDURE

NOTICE:
* When replacing the brake actuator assembly, perform zero point calibration Programming and Relearning.
* Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE

1. INSPECT SKID CONTROL ECU

(a) Turn the ignition switch off.

(b) Make sure that there is no looseness at the locking part and the connecting part of the connectors.

(c) Disconnect the A16 skid control ECU connector.

(d) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE BRAKE ACTUATOR ASSEMBLY Removal
