C1423

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: VEHICLE STABILITY CONTROL SYSTEM: C1421, C1281, C1423, C1424: Open or Short in Master Cylinder Pressure Sensor
C1424 - Master Cylinder Pressure Sensor Output Malfunction

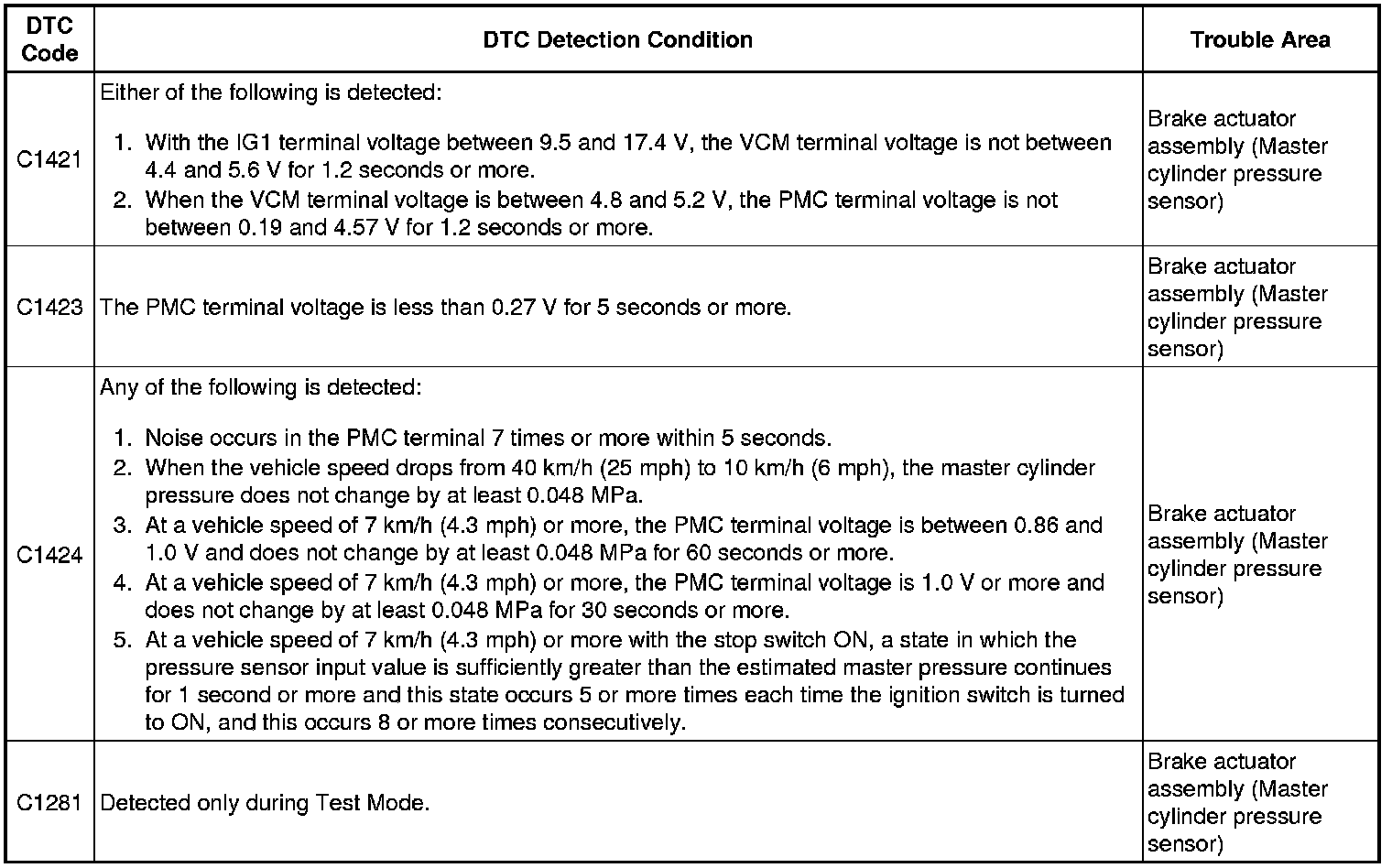

DESCRIPTION

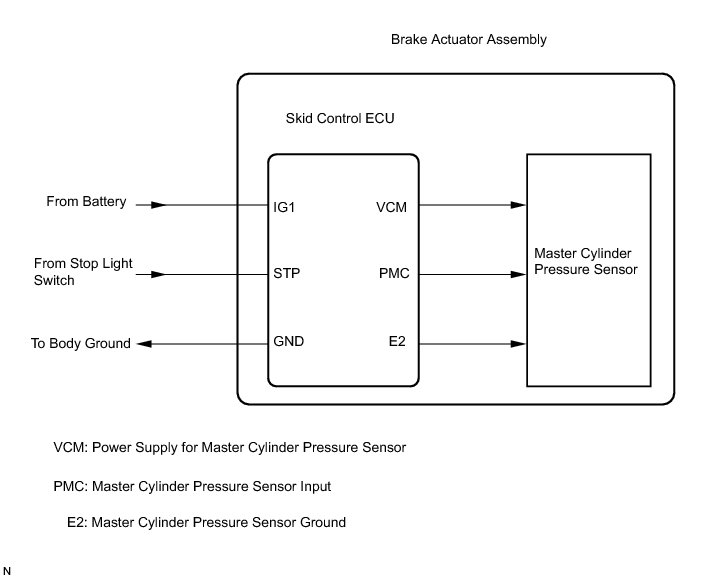

The master cylinder pressure sensor is connected to the skid control ECU in the brake actuator assembly.









WIRING DIAGRAM

Refer to DTC C1425 C1425.

INSPECTION PROCEDURE

NOTICE:
* When replacing the brake actuator assembly, perform zero point calibration Programming and Relearning.
* Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE

1. REPLACE BRAKE ACTUATOR ASSEMBLY

(a) Replace the brake actuator assembly (master cylinder pressure sensor) Removal.

NEXT -- END
