B1242

DOOR LOCK: WIRELESS DOOR LOCK CONTROL SYSTEM: B1242: Wireless Door Lock Tuner Circuit Malfunction
B1242 - Wireless Door Lock Tuner Circuit Malfunction

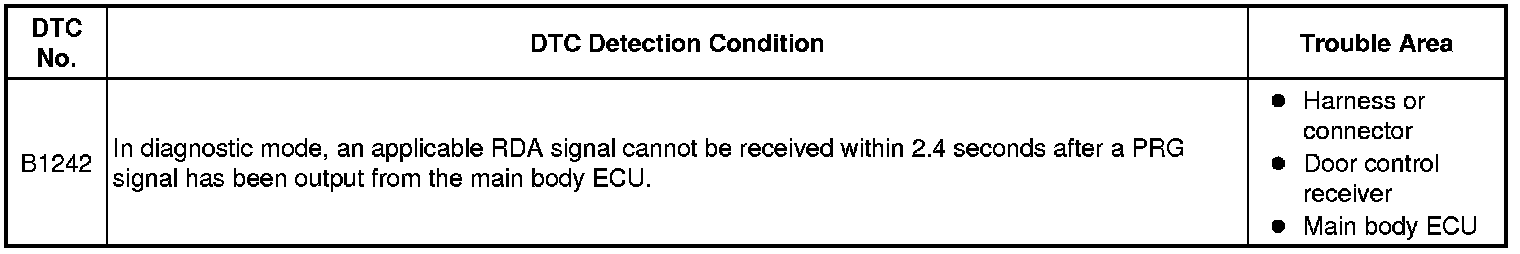

DESCRIPTION

The door control receiver receives signals from the transmitter and sends these signals to the main body ECU.

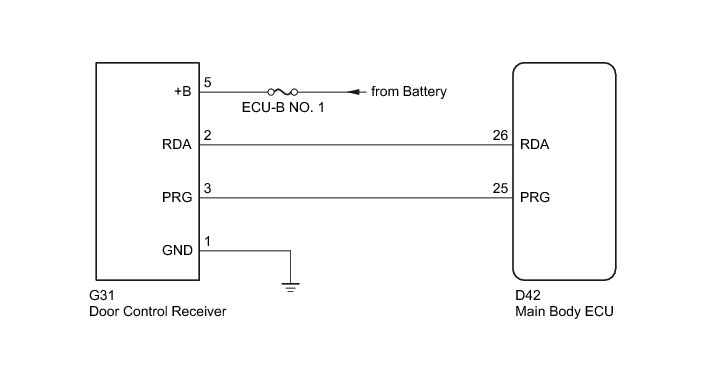

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (MAIN BODY ECU - DOOR CONTROL RECEIVER)

(a) Disconnect the D42 main body ECU connector.

(b) Disconnect the G31 door control receiver connector.

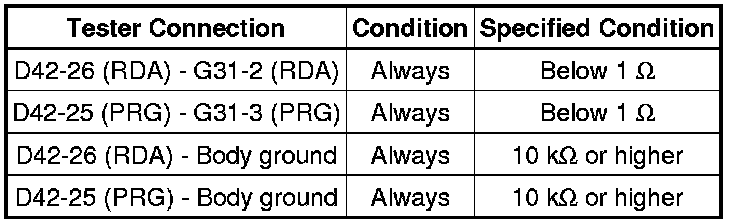

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





(d) Reconnect the door control receiver connector.

(e) Reconnect the main body ECU connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (DOOR CONTROL RECEIVER - BATTERY AND BODY GROUND)

(a) Disconnect the G31 door control receiver connector.





(b) Measure the voltage and resistance according to the value(s) in the table below.

Standard Voltage:





Standard Resistance:





Text in Illustration





(c) Reconnect the door control receiver connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

3. REPLACE DOOR CONTROL RECEIVER

(a) Temporarily replace the door control receiver with a new or known good one Removal.

NEXT -- Continue to next step.

4. REGISTER RECOGNITION CODE

(a) Perform the Registration procedure Registration.

NEXT -- Continue to next step.

5. CONFIRM DTC

(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

(b) Recheck for DTCs.

Result





B -- REPLACE MAIN BODY ECU Removal

A -- END (DOOR CONTROL RECEIVER WAS DEFECTIVE)
