Front Wiper Motor

WIPER AND WASHER: FRONT WIPER MOTOR: INSPECTION

1. INSPECT FRONT WIPER MOTOR





(a) Check the LO operation.

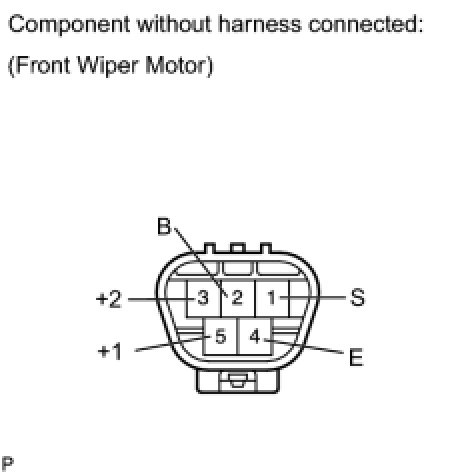

(1) Connect the positive battery (+) lead to terminal 5 (+1) of the connector and the negative battery (-) lead to terminal 4 (E), then check that the motor operates at low speed (LO).

OK:

Motor operates at low speed (LO).

If the result is not as specified, replace the front wiper motor.

(b) Check the HI operation.

(1) Connect the positive battery (+) lead to terminal 3 (+2) of the connector and the negative battery (-) lead to terminal 4 (E), then check that the motor operates at high speed (HI).

OK:

Motor operates at high speed (HI).

If the result is not as specified, replace the front wiper motor.

(c) Check the automatic stop operation.

(1) Connect the positive battery (+) lead to terminal 5 (+1) of the connector and the negative battery (-) lead to terminal 4 (E). With the motor operating at low speed (LO), disconnect terminal 5 (+1) to stop the wiper motor operation at any position other than the automatic stop position.

(2) Using SST, connect terminals 1 (S) and 5 (+1). Connect the positive battery (+) lead to terminal 2 (B) of the connector to restart the motor operation at low speed (LO).

SST : 09843-18040

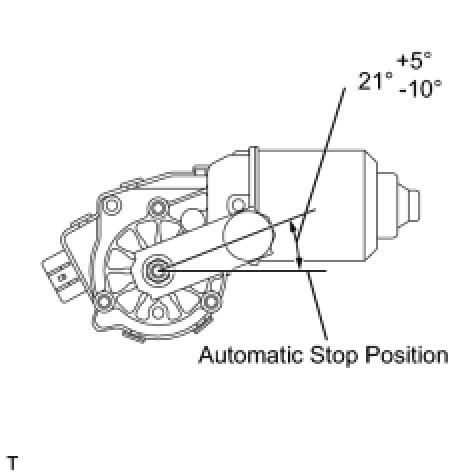

(3) Check that the front wiper motor stops automatically at the automatic stop position.

HINT
The stop position is a line parallel to the motor.





OK:

Refer to the illustration.

If the result is not as specified, replace the front wiper motor.
