Washer Fluid Level Switch: Testing and Inspection

WIPER AND WASHER: WASHER LEVEL WARNING SWITCH: ON-VEHICLE INSPECTION

1. INSPECT WASHER LEVEL WARNING SWITCH





(a) Check the operation of the washer level warning switch.

(1) Fill the washer jar with washer fluid.

HINT
The operation should be performed with the washer level warning switch installed on the washer jar assembly.

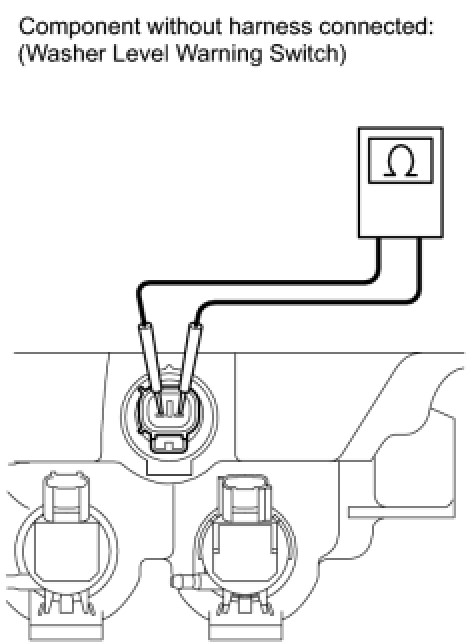

(2) Check the resistance.

HINT
Pull out the washer hose connected to the washer motor. Perform the inspection while draining the washer fluid.

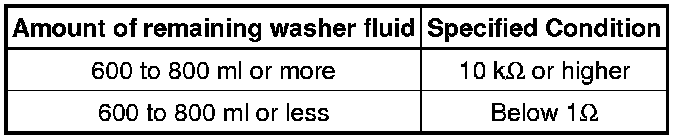

Standard resistance:





If the result is not as specified, replace the washer level warning switch.
