Removal





CLUTCH: CLUTCH PEDAL SWITCH: REMOVAL

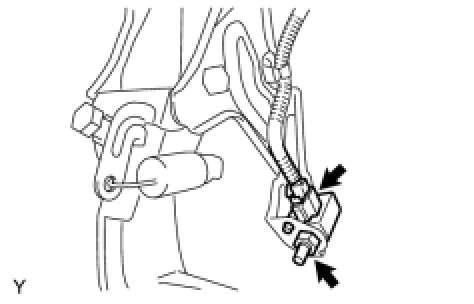

1. REMOVE CLUTCH START SWITCH ASSEMBLY





(a) Disconnect the clutch start switch connector.

(b) Remove the nut and clutch start switch from the bracket.
