Reassembly

U341E AUTOMATIC TRANSAXLE: VALVE BODY ASSEMBLY: REASSEMBLY

1. REMOVE MANUAL VALVE

(a) Coat the manual valve with Toyota Genuine ATF WS or equivalent, and install it to the valve body.





2. INSTALL NO. 3 SOLENOID LOCK PLATE

(a) Install the shift solenoid valve SLT to the valve body.

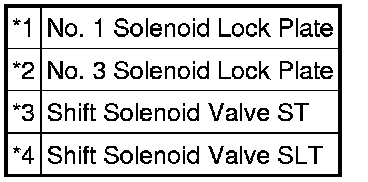

Text in Illustration





(b) Install the No. 1 solenoid lock plate to the shift solenoid valve SLT.

(c) Install the shift solenoid valve ST to the valve body.

(d) Install the No. 3 solenoid lock plate to the valve body with the 2 bolts.

Torque : 11 Nm (110 kgf-cm, 8 ft-lbf)

3. INSTALL SHIFT SOLENOID VALVE SLU

(a) Install the shift solenoid valve SLU onto the valve body.





Text in Illustration





(b) Install the solenoid lock plate with the bolt.

Torque : 11 Nm (110 kgf-cm, 8 ft-lbf)

4. INSTALL SHIFT SOLENOID VALVE S2

(a) Install the shift solenoid valve S2 to the valve body with the bolt.





Torque : 11 Nm (110 kgf-cm, 8 ft-lbf)

5. INSTALL SHIFT SOLENOID VALVE S1

(a) Install the shift solenoid valve S1 to the valve body with the bolt.





Torque : 11 Nm (110 kgf-cm, 8 ft-lbf)
