Installation

U341E AUTOMATIC TRANSAXLE: SHIFT LEVER: INSTALLATION

1. INSTALL FLOOR SHIFT ASSEMBLY

(a) Provisionally install the shift lever with the 4 bolts.





NOTICE:
Do not jam the wiring of the indicator light or shift lock.

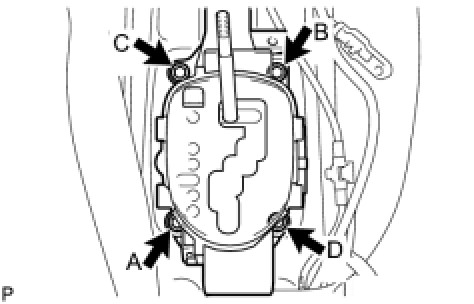

(b) Tighten the 4 bolts in order, from A to D.

Torque : 12 Nm (122 kgf-cm, 9 ft-lbf)

(c) Install the shift lock control computer connector and indicator light connector.

2. CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

(a) Turn the nut on the control cable and push in the lock.





(b) Install the control cable onto the shift lever retainer.





CAUTION:
* Install the cable with the projection of the cable outer facing upward.
* After installing, check that the lock of the cable outer is protruding beyond portion A-A, as shown in the illustration.
(c) Connect the control cable to the shift lever.





NOTICE:
Connect the control cable so that the adjusting mechanism lock of the control cable is installed on the left side of the vehicle.

3. INSPECT SHIFT LEVER POSITION Initial Inspection and Diagnostic Overview

4. ADJUST SHIFT LEVER POSITION

(a) Shift the shift lever to the N position.

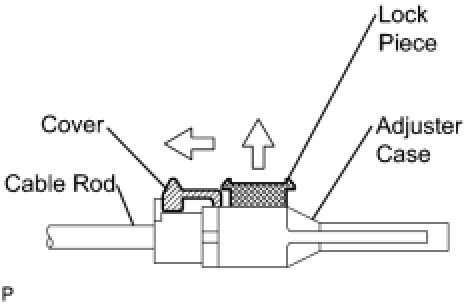

(b) Slide the adjuster case cover in the direction shown in the illustration and pull out the lock piece.





(c) Gently pull the cable rod toward the rear of the vehicle by hand to pull the cable taut.

(d) Press the lock piece into the adjuster case and lock it.

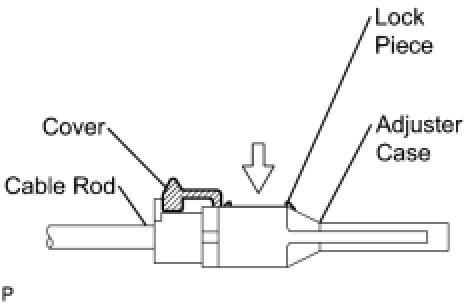

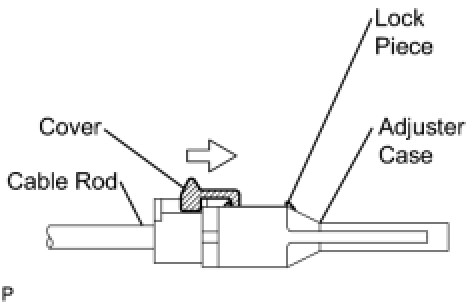

(e) Slide the cover in the direction shown in the illustration.





NOTICE:
Slide the cover past the protrusion on the lock piece.

(f) Inspect the operation after the adjustment.

5. INSTALL FRONT CONSOLE BOX Installation

6. INSTALL REAR CONSOLE BOX SUB-ASSEMBLY Installation

7. INSTALL CONSOLE BOX CARPET Installation

8. INSTALL REAR CONSOLE BOX COVER Installation

9. INSTALL UPPER CONSOLE PANEL Installation

10. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY

(a) Install the shift lever knob sub-assembly onto the shift lever.
