TS and CG Terminal Circuit

POWER STEERING: POWER STEERING SYSTEM: TS and CG Terminal Circuit
- TS and CG Terminal Circuit

DESCRIPTION

The power steering ECU can be changed from normal mode to the mode for the torque sensor zero point calibration by turning the ignition switch to ON after the DLC3 TS and CG terminals have been connected.

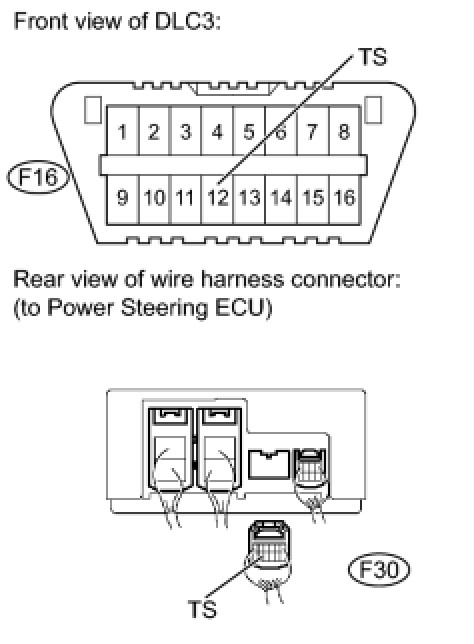

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT DLC3 TERMINAL VOLTAGE





(a) Turn the ignition switch to ON.

(b) Measure the voltage according to the value(s) in the table below.

Standard voltage:





NG -- CHECK HARNESS AND CONNECTOR (DLC3 - BODY GROUND)

OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE Power Steering System

2. CHECK HARNESS AND CONNECTOR (DLC3 - BODY GROUND)





(a) Measure the resistance according to the value(s) in the table below.

Standard resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

3. CHECK HARNESS AND CONNECTOR (POWER STEERING ECU - DLC3)

(a) Disconnect the connector from the power steering ECU.

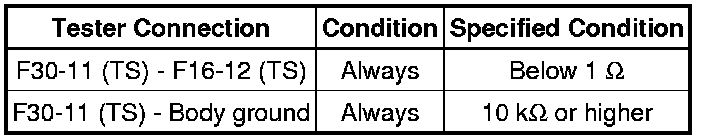

(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE POWER STEERING ECU Removal
