Steering Mounted Controls Transmitter: Testing and Inspection

AUDIO / VISUAL: STEERING PAD SWITCH: INSPECTION

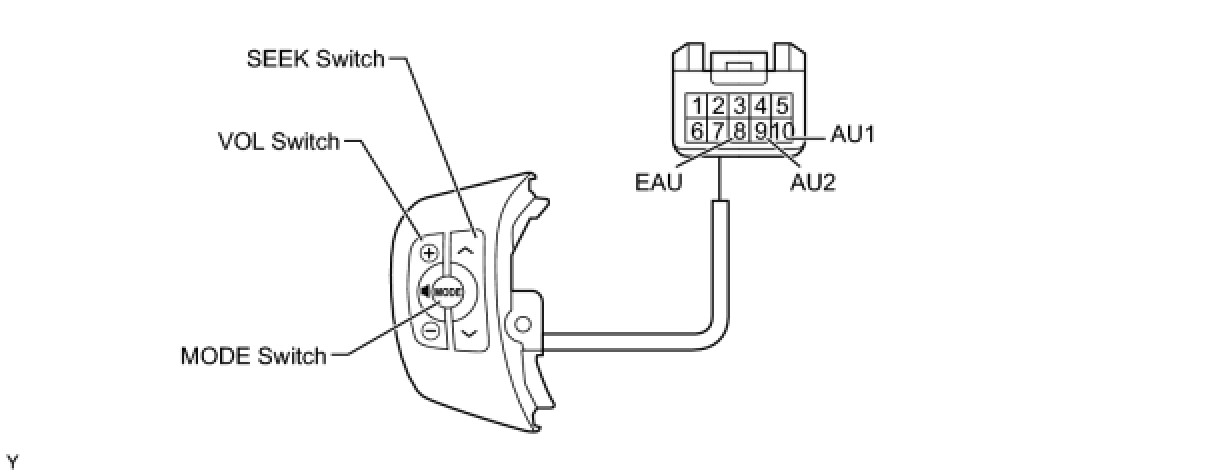

1. INSPECT STEERING PAD SWITCH LH





(a) Check the resistance of the steering pad switch.

(1) Using an ohmmeter, measure the resistance and check the results in accordance with the value(s) in the table below.

Standard resistance:





If the result is not as specified, replace the steering pad switch LH.
