Front Passenger Side Seat Belt Warning Light Malfunction

SEAT BELT: SEAT BELT WARNING SYSTEM: Front Passenger Side Seat Belt Warning Light Malfunction
- Front Passenger Side Seat Belt Warning Light Malfunction

DESCRIPTION

The occupant classification ECU detects the state of the front seat inner belt RH when the front passenger seat is occupied with the ignition switch ON. The occupant classification ECU transmits the front passenger seat belt state signal to the combination meter. If the front passenger seat belt is not fastened, the combination meter blinks the front seat belt warning light on the passenger seat belt warning light. If the seat belt is fastened, the warning light goes off.

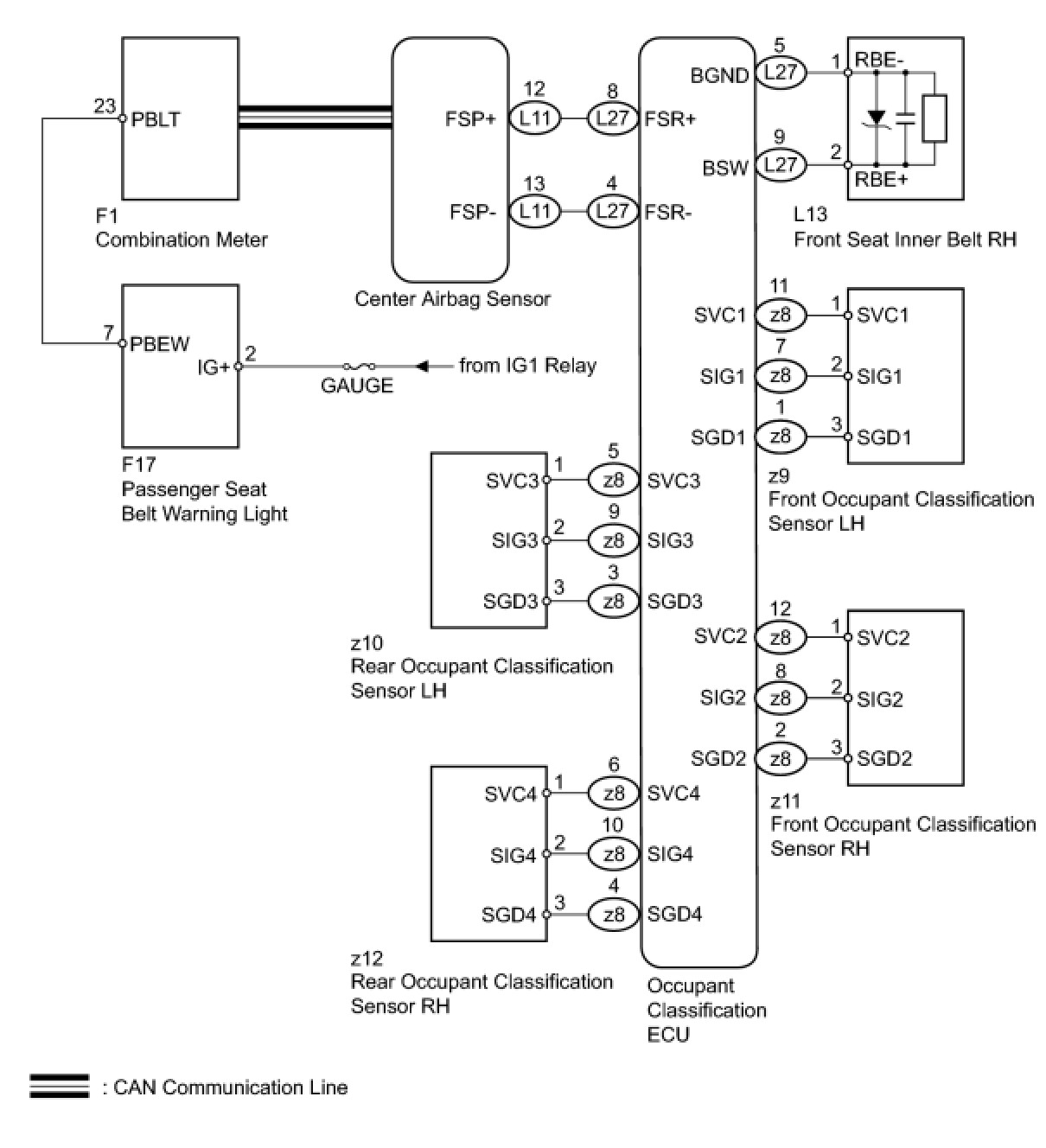

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK FOR DTC

(a) Check for DTCs.

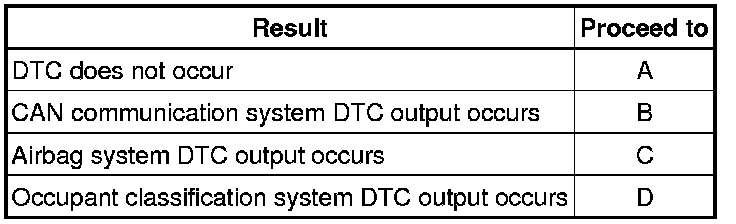

Result:





D -- GO TO OCCUPANT CLASSIFICATION SYSTEM Occupant Classification System

C -- GO TO AIRBAG SYSTEM Airbag System

B -- GO TO CAN COMMUNICATION SYSTEM Diagnosis System
A -- Continue to next step.

2. INSPECT FUSE (GAUGE)

(a) Remove the GAUGE fuse from the main body ECU.





(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





NG -- REPLACE FUSE
OK -- Continue to next step.

3. PERFORM ACTIVE TEST USING TECHSTREAM

(a) Operate a Techstream according to the steps on the display and select "Active Test".

Combination Meter





OK:

Passenger seat belt warning light condition can be switched by "Active Test".

NG -- CHECK HARNESS AND CONNECTOR (PASSENGER SEAT BELT WARNING LIGHT - COMBINATION METER)
OK -- Continue to next step.

4. REPLACE FRONT SEAT INNER BELT ASSEMBLY RH

(a) Temporarily replace the front seat inner belt RH with a new or correctly functioning one Removal.

NEXT -- Continue to next step.

5. CHECK PASSENGER SEAT BELT WARNING LIGHT

(a) Check the passenger seat belt warning light function Operation Check.

OK:

Passenger seat belt warning light operates normally.

NG -- REPLACE COMBINATION METER Removal

OK -- END (FRONT SEAT INNER BELT RH IS DEFECTIVE)

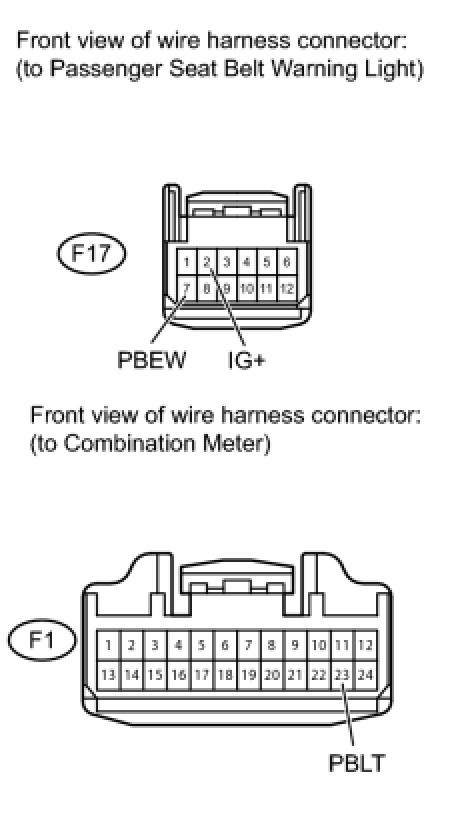

6. CHECK HARNESS AND CONNECTOR (PASSENGER SEAT BELT WARNING LIGHT - COMBINATION METER)

(a) Disconnect the F17 passenger seat belt warning light connector.





(b) Disconnect the F1 combination meter connector.

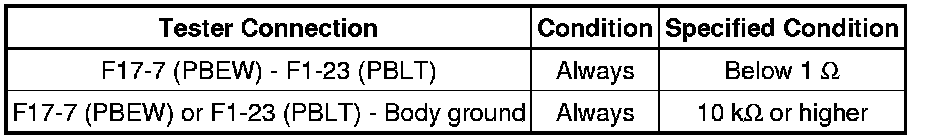

(c) Measure the resistance and voltage according to the value(s) in the table below.

Standard resistance:

Standard voltage










NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

7. INSPECT PASSENGER SEAT BELT WARNING LIGHT ASSEMBLY

(a) Remove the passenger seat belt warning light Removal.

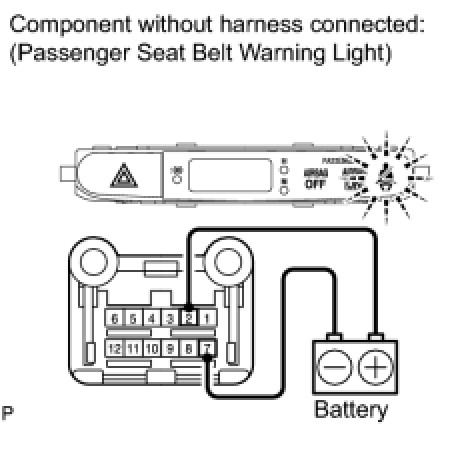

(b) Connect the positive (+) battery lead to terminal 2 (IG+), and the negative (-) battery lead to terminal 7 (PBEW).

(c) Check that the seat belt warning light (for passenger side) comes on.

OK:

Seat belt warning light (for passenger side) comes on.

NG -- REPLACE PASSENGER SEAT BELT WARNING LIGHT ASSEMBLY Removal

OK -- REPLACE COMBINATION METER Removal
