Seat Belt: Testing and Inspection

SEAT BELT: FRONT SEAT INNER BELT ASSEMBLY: INSPECTION

1. INSPECT FRONT SEAT INNER BELT ASSEMBLY LH

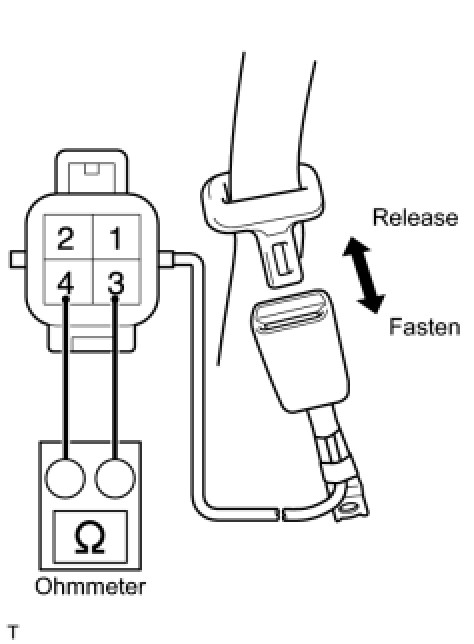

(a) for Driver Side:





(1) Check the resistance.

1 Using an ohmmeter, measure the resistance between the terminals.

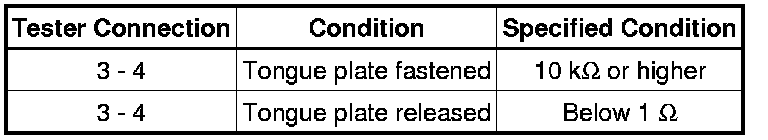

Standard resistance:





If the result is not as specified, replace the front seat inner belt.

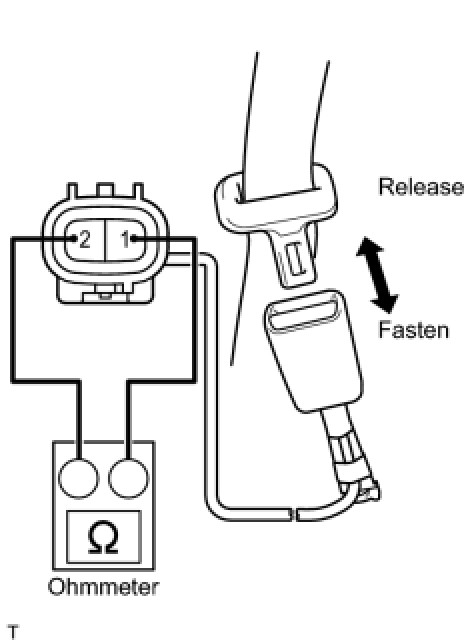

(b) for Front Passenger Side:





(1) Check the resistance.

1 Using an ohmmeter, measure the resistance between the terminals.

Standard resistance:





If the result is not as specified, replace the front seat inner belt.
