How To Proceed With Troubleshooting

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HINT
* Use these procedures to troubleshoot the airbag system.
* *: Use the Techstream.

1. VEHICLE BROUGHT TO WORKSHOP

NEXT -- Continue to next step.

2. INSPECT BATTERY VOLTAGE

Standard voltage:

11 to 14 V

If the voltage is below 11 V, recharge or replace the battery before proceeding.

NEXT -- Continue to next step.

3. CHECK CAN COMMUNICATION SYSTEM*

(a) Check for DTC Reading and Clearing Diagnostic Trouble Codes.

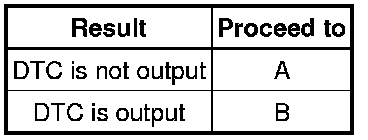

Result





B -- CHECK CAN COMMUNICATION CIRCUIT
A -- Continue to next step.

4. WARNING LIGHT CHECK

NEXT -- Continue to next step.

5. CHECK DTC (Present and Past DTCs)*

(a) Check for DTC Reading and Clearing Diagnostic Trouble Codes.

Result





B -- PROBLEM SYMPTOMS TABLE
A -- Continue to next step.

6. DTC CHART

NEXT -- Continue to next step.

7. CIRCUIT INSPECTION*

NEXT -- Continue to next step.

8. REPAIR

NEXT -- Continue to next step.

9. CLEAR DTC (Present and Past DTCs)*

NEXT -- Continue to next step.

10. CHECK DTC (Present and Past DTCs)*

(a) Check for DTC Reading and Clearing Diagnostic Trouble Codes.

Result





B -- DIAGNOSTIC TROUBLE CODE CHART
A -- Continue to next step.

11. CONFIRMATION TEST*

NEXT -- END
