Blower Motor Relay: Testing and Inspection

AIR CONDITIONING: HEATER BLOWER MOTOR RELAY: ON-VEHICLE INSPECTION

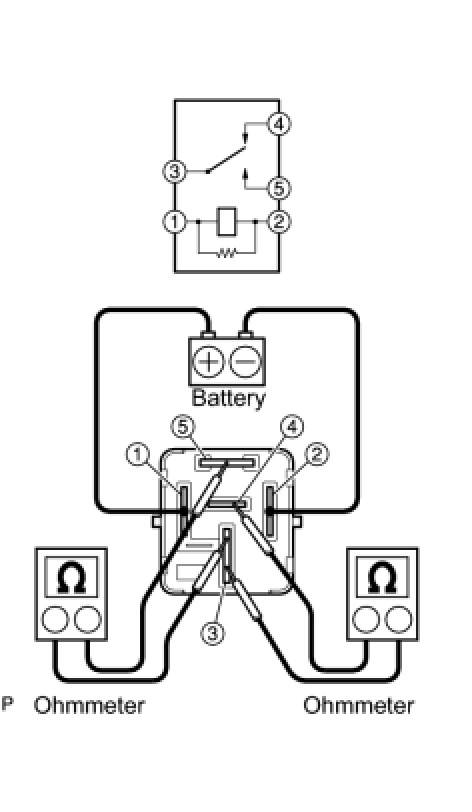

1. INSPECT HEATER BLOWER MOTOR RELAY





(a) Check the resistance.

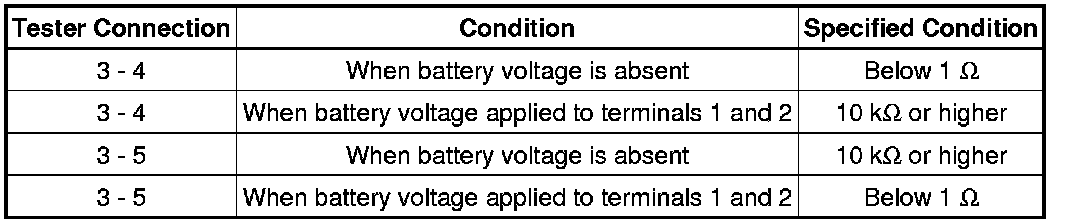

(1) Measure the resistance according to the value(s) in the table below.

Standard resistance:





If the result is not as specified, replace the relay.
