Symptom Related Diagnostic Procedures

U341E AUTOMATIC TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: PROBLEM SYMPTOMS TABLE

HINT
* If a normal code is displayed during the diagnostic trouble code check although the trouble still occurs, check the electrical circuits for each symptom in the order given in the charts on the following pages and proceed to the page given for troubleshooting.
* The Matrix Chart is divided into 2 chapters.
* When the circuit on which mark *1 is attached is a malfunction, DTC could be output.

Chapter 1:

Refer to the table below when the trouble cause is considered to be electrical. If the instruction PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE is given in the flowchart of each circuit, inspect the suspected areas in descending order for each symptom. If the trouble still occurs even though there are no abnormalities in the inspections listed for the symptoms, check and replace the ECM.

HINT
*1: When a circuit with mark *1 is defective, a DTC may be output.

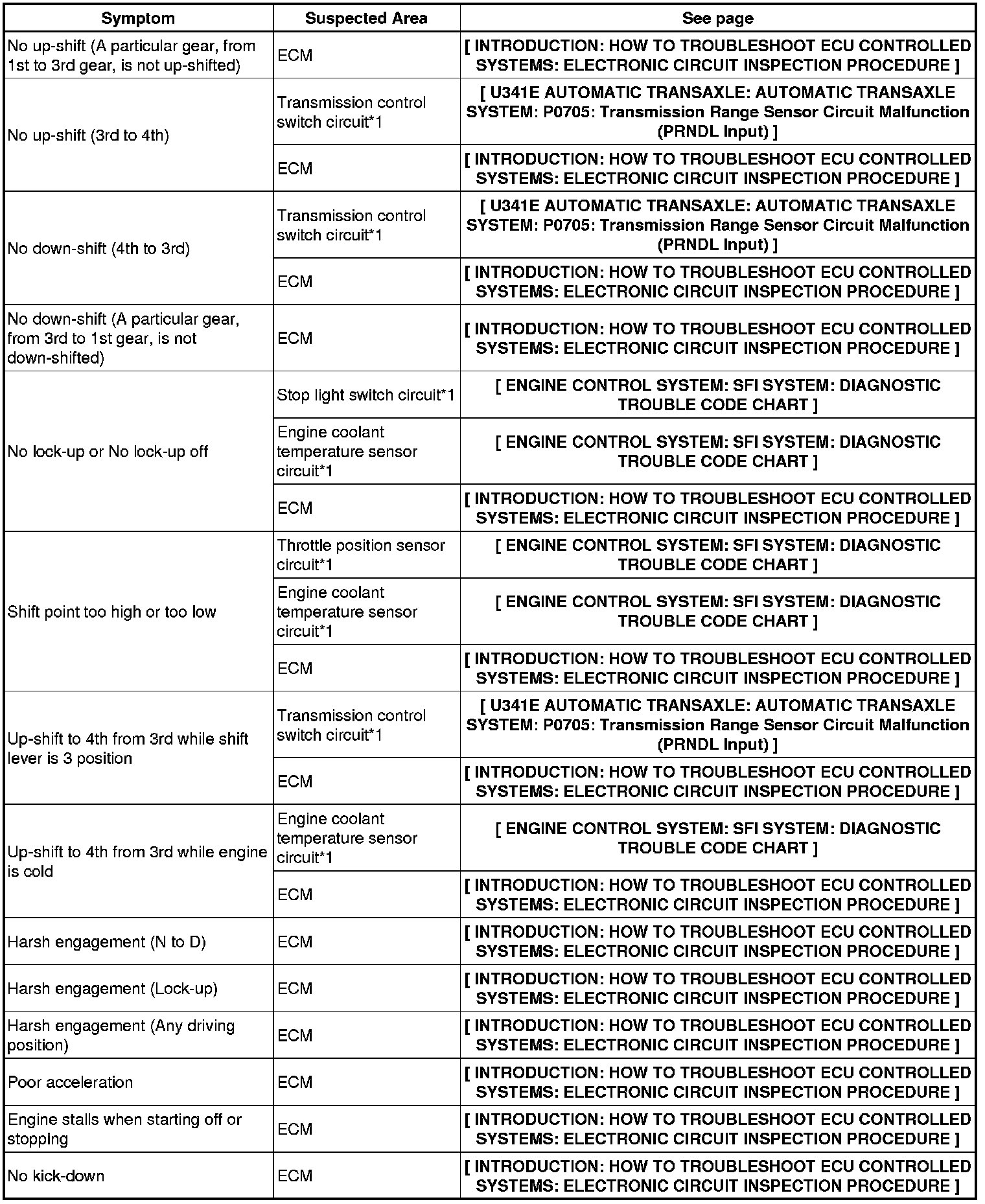

1. Chapter 1: Electronic Circuit Matrix Chart:

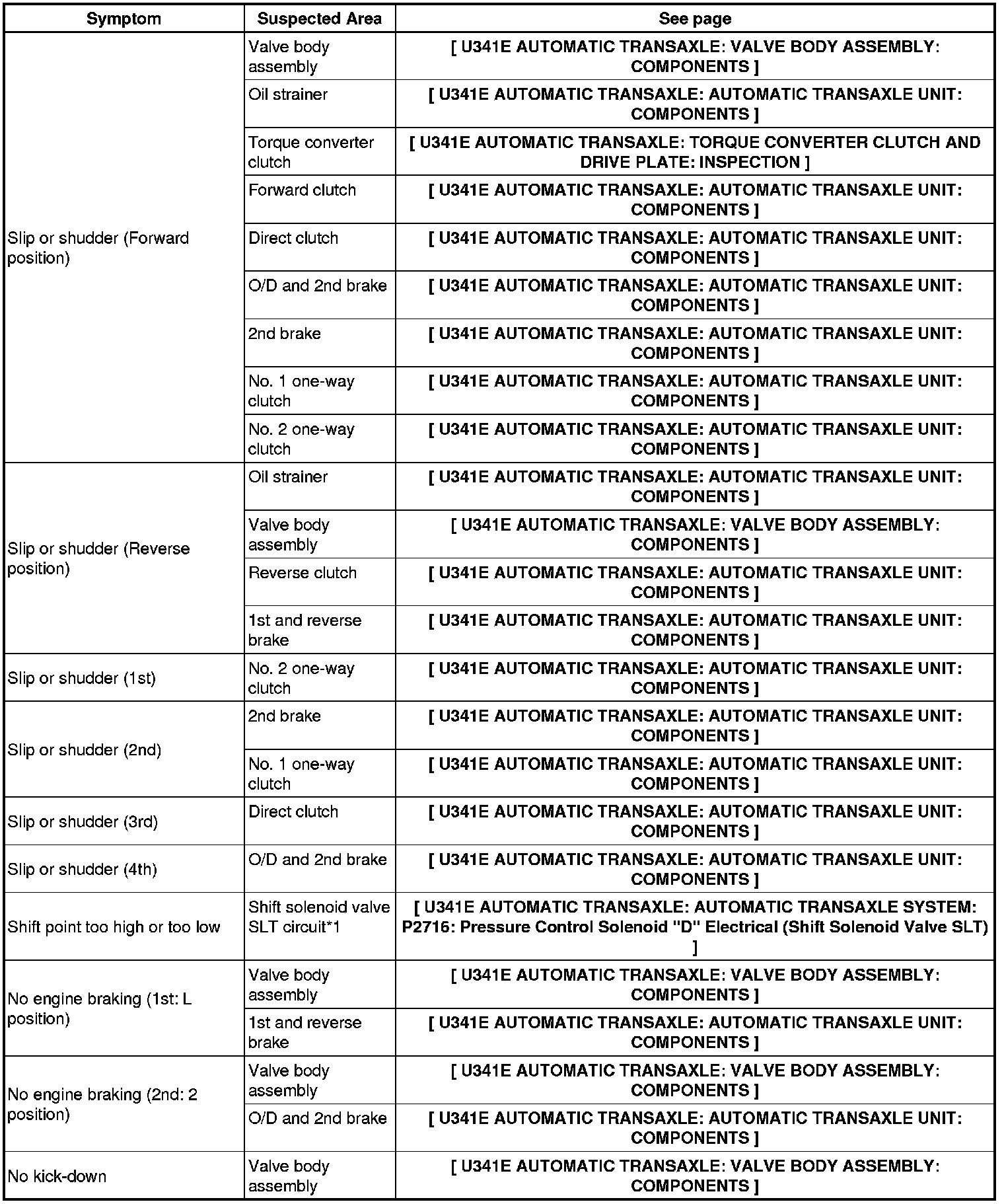

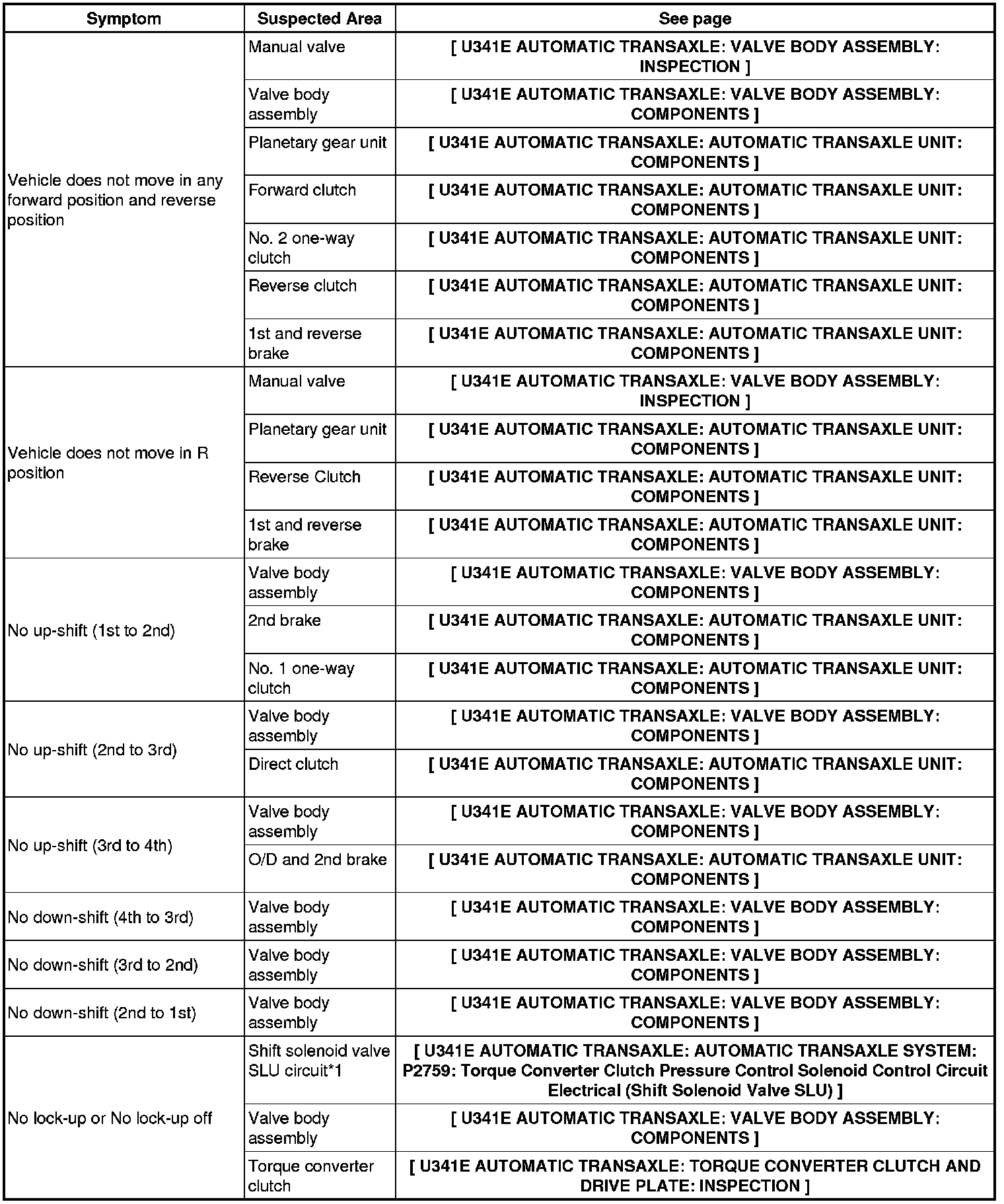

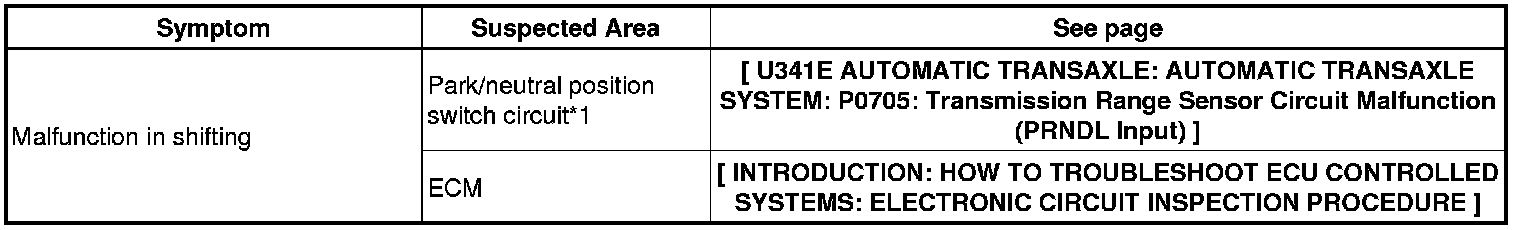

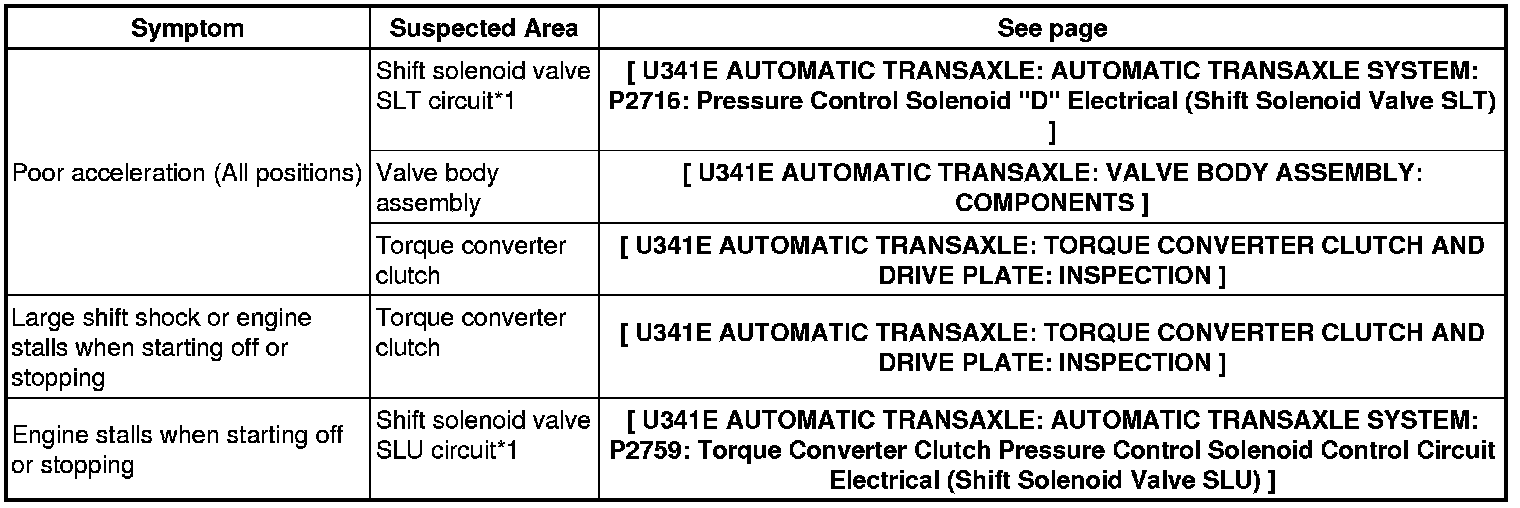

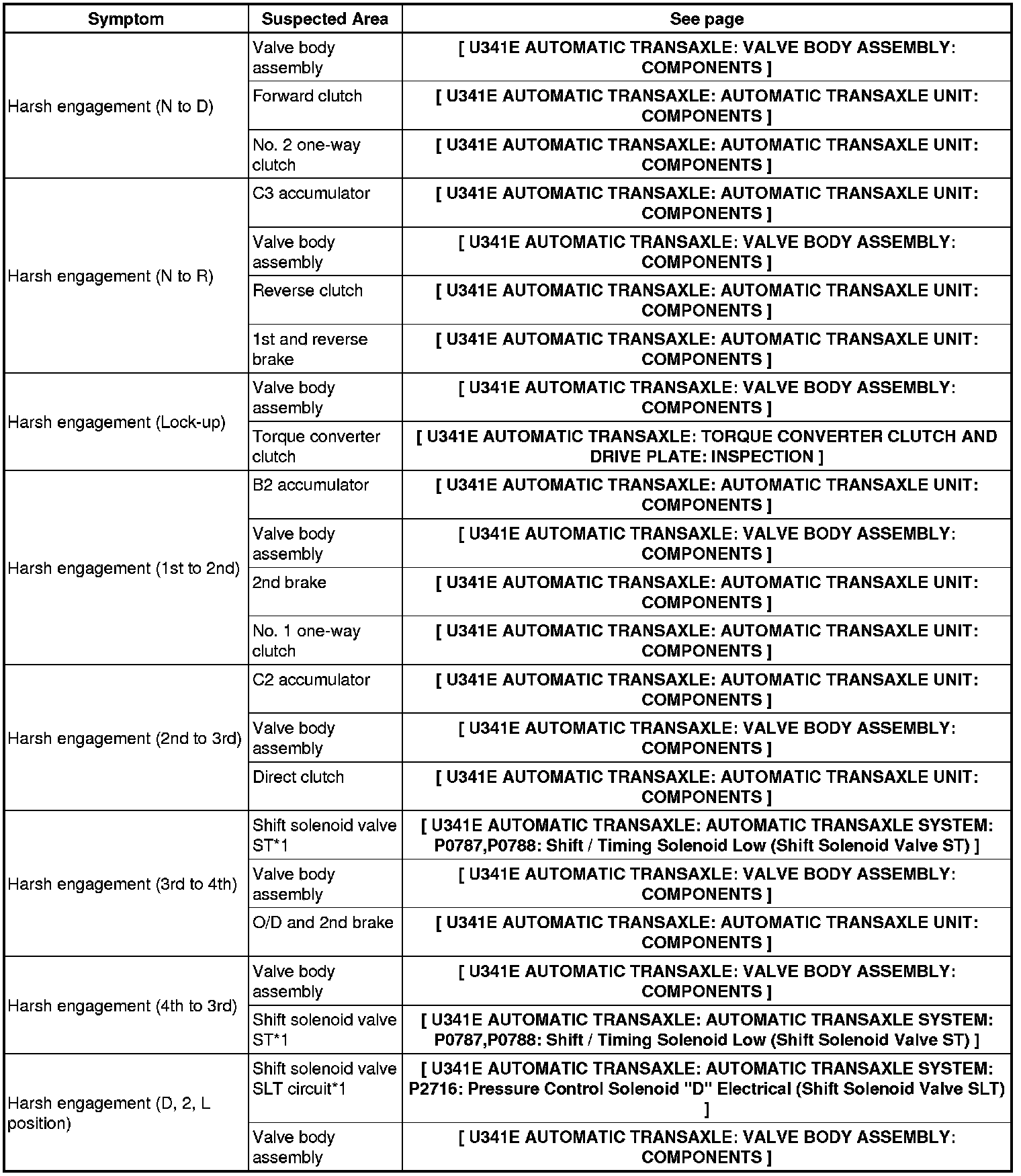

2. Chapter 2: On-Vehicle Repair and Off-Vehicle Repair:
