Intake System





2ZR-FE INTAKE: INTAKE SYSTEM: ON-VEHICLE INSPECTION

1. INSPECT INTAKE SYSTEM

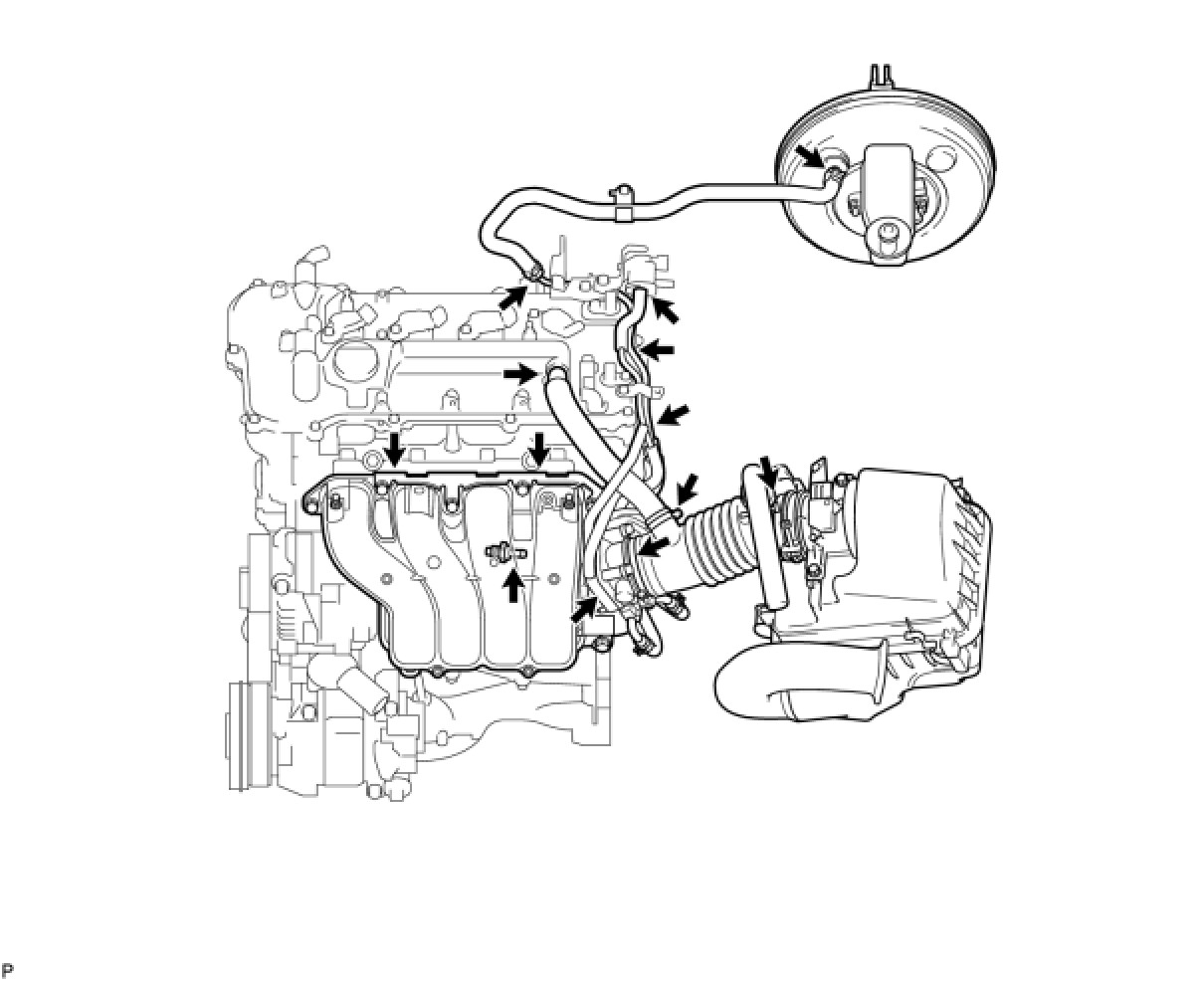

(a) Check that there is no air suction at the points shown in the illustration.
