Removal

2ZR-FE FUEL: FUEL PRESSURE REGULATOR: REMOVAL

1. DISCHARGE FUEL SYSTEM PRESSURE

Fuel System: Precaution

2. REMOVE FUEL PUMP

Refer to the procedures under "REMOVE FUEL PUMP" Removal.

3. REMOVE FUEL PRESSURE REGULATOR ASSEMBLY

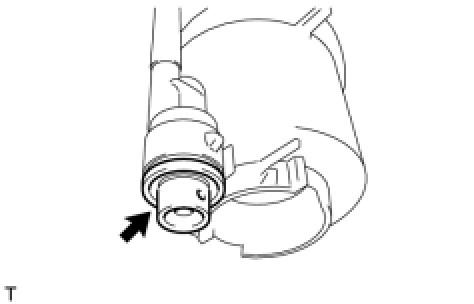

(a) Using a screwdriver with its tip wrapped in protective tape, remove the pressure regulator.

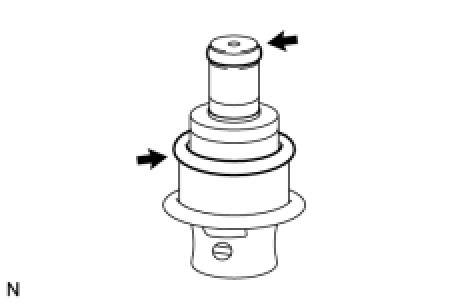

(b) Remove the 2 O-rings from the pressure regulator assembly.
