Installation

2ZR-FE EMISSION CONTROL: PCV VALVE: INSTALLATION

1. INSTALL VENTILATION VALVE SUB-ASSEMBLY

(a) Apply adhesive to 2 or 3 threads of the ventilation valve.





Adhesive:

Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

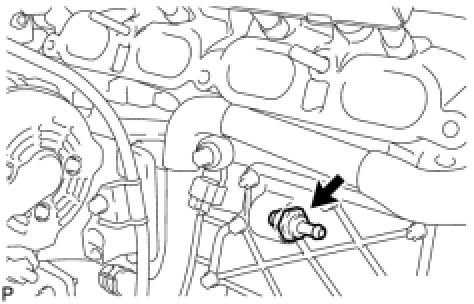

(b) Install the ventilation valve.





Torque : 20 Nm (204 kgf-cm, 15 ft-lbf)

(c) Connect the ventilation hose.

2. INSTALL INTAKE MANIFOLD Installation

3. INSTALL ENGINE OIL LEVEL DIPSTICK

4. INSTALL TRANSMISSION OIL LEVEL GAUGE SUB-ASSEMBLY (for Automatic Transaxle) Installation

5. INSTALL OIL COOLER TUBE (for Automatic Transaxle) Installation

6. INSTALL STARTER ASSEMBLY Installation

7. INSTALL INJECTOR VIBRATION INSULATOR Installation

8. INSTALL NO. 1 DELIVERY PIPE SPACER Installation

9. INSTALL FUEL DELIVERY PIPE SUB-ASSEMBLY Installation

10. CONNECT FUEL TUBE SUB-ASSEMBLY Installation

11. INSTALL FUEL PIPE CLAMP Installation

12. CONNECT VACUUM HOSE Installation

13. CONNECT NO. 1 FUEL VAPOR FEED HOSE Installation

14. INSTALL HARNESS BRACKET Installation

15. INSTALL ENGINE WIRE HARNESS Installation

16. INSTALL AIR CLEANER CAP SUB-ASSEMBLY WITH HOSE Installation

17. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)

18. ADD ENGINE COOLANT Service and Repair

19. INSPECT FOR COOLANT LEAK Testing and Inspection

20. INSPECT FOR FUEL LEAK

Fuel System: Precaution

21. INSTALL NO. 2 CYLINDER HEAD COVER Installation

22. INSTALL ENGINE UNDER COVER RH

Torque : 5.0 Nm (51 kgf-cm, 44 in-lbf)

23. INSTALL ENGINE UNDER COVER LH

Torque : 5.0 Nm (51 kgf-cm, 44 in-lbf)
