Symptom Related Diagnostic Procedures
2ZR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: PROBLEM SYMPTOMS TABLE
HINT

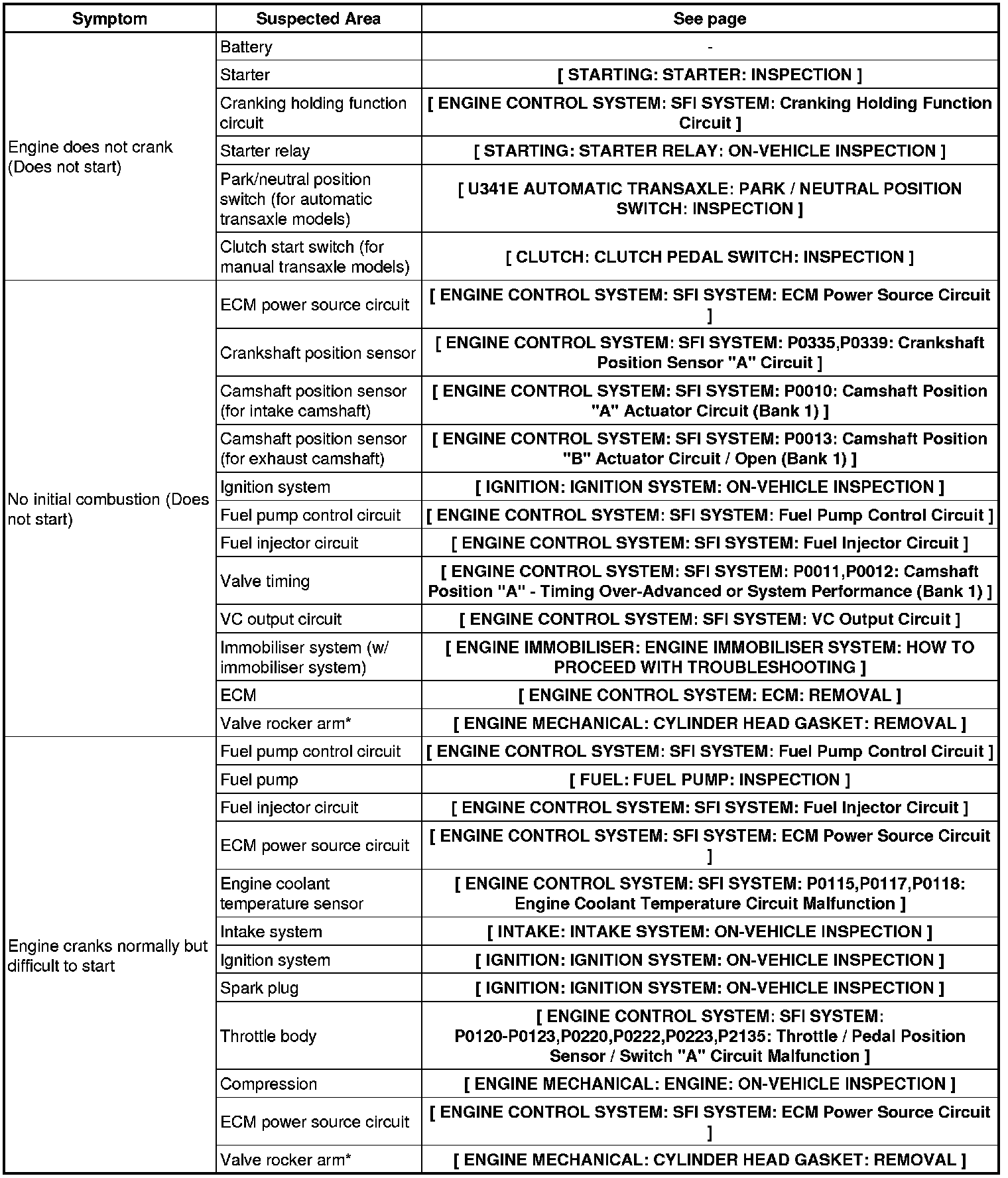

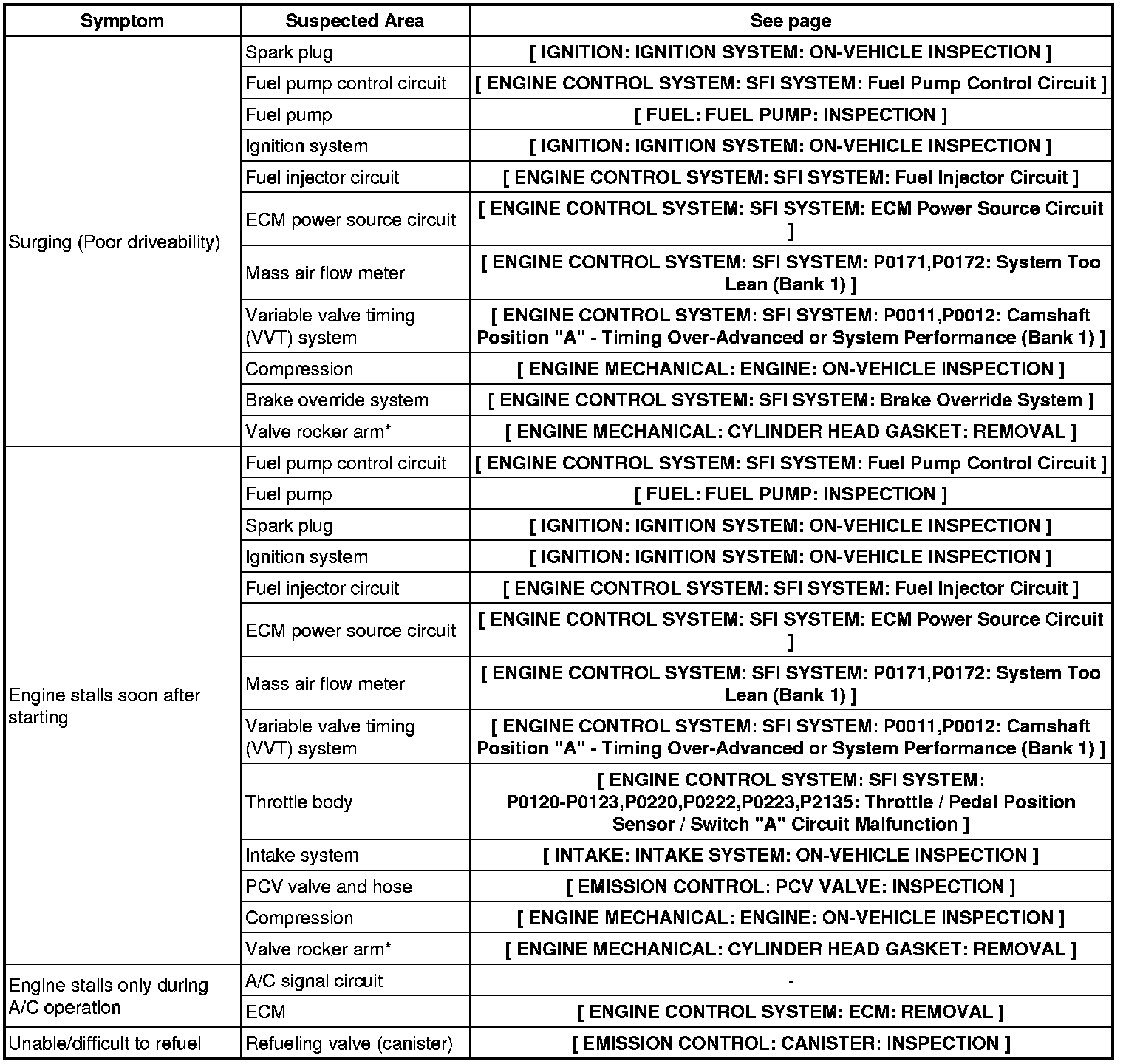

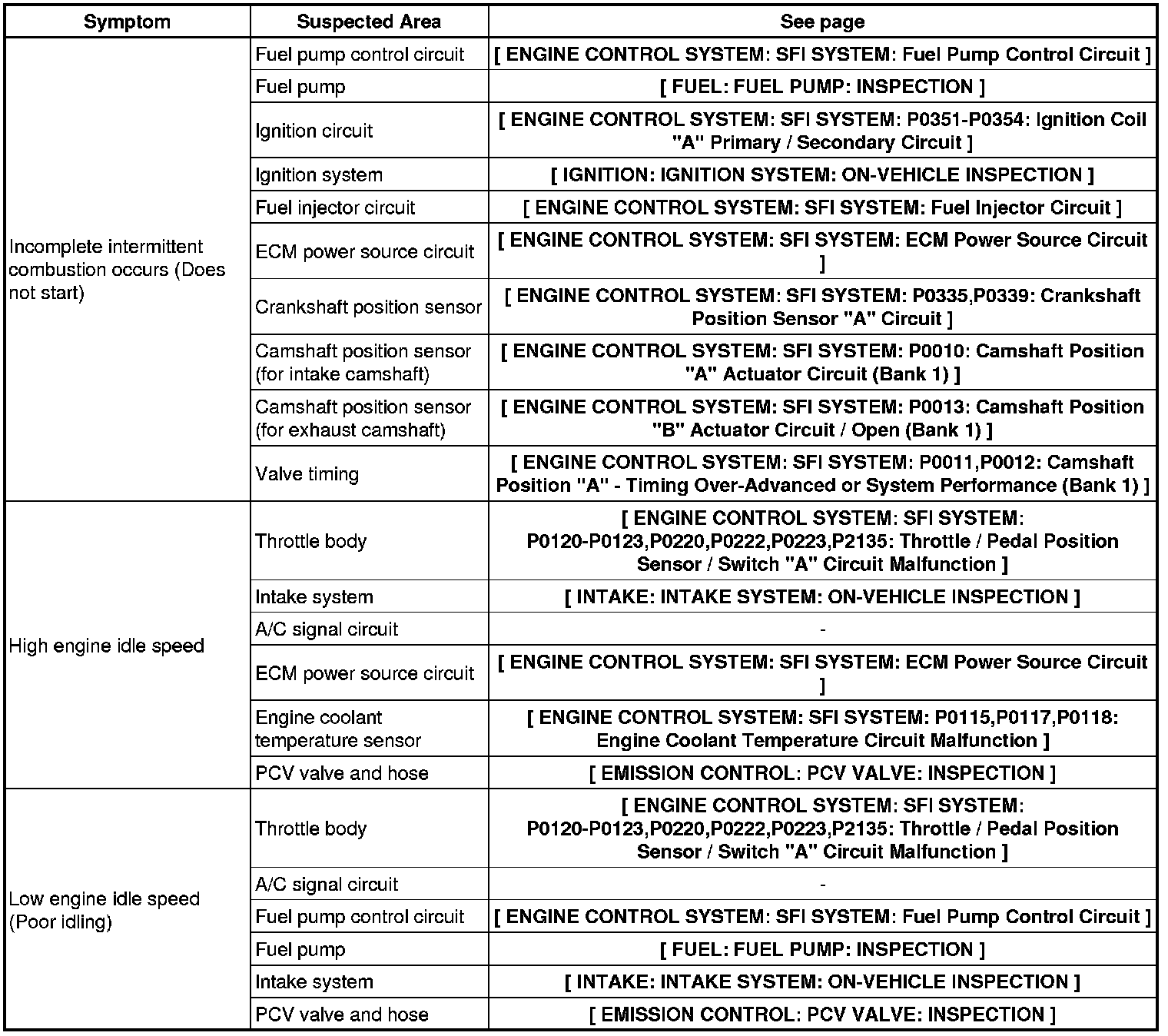

* Use the table below to help determine the cause of problem symptoms. If multiple suspected areas are listed, the potential causes of the symptoms are listed in order of probability in the "Suspected Area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.
* Inspect the fuses and relays related to this system before inspecting the suspected areas below.
SFI system
HINT
*: Check the "Fuel Cut Elps Time" value in the Data List or the freeze frame data which were present when the malfunction occurred. If the value is more than 0 seconds, a high engine speed (8000 rpm or more) has occurred in the past. Since the misfire may be caused by valve rocker arm detaching due to an extremely high engine speed, check that the valve rocker arms are properly attached Removal. By clearing the DTC, "Fuel Cut Elps Time" will be cleared.
