Removal





LIGHTING: TURN SIGNAL FLASHER ASSEMBLY: REMOVAL

1. REMOVE INSTRUMENT PANEL BOX Removal

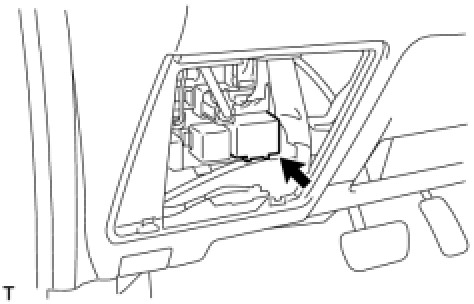

2. REMOVE TURN SIGNAL FLASHER ASSEMBLY





(a) Remove the turn signal flasher.
