Door Lock Position Circuit

LIGHTING: LIGHTING SYSTEM: Door LOCK Position Circuit
- Door LOCK Position Circuit

DESCRIPTION

The main body ECU receives door unlock detection switch signals to control the illuminated entry system.

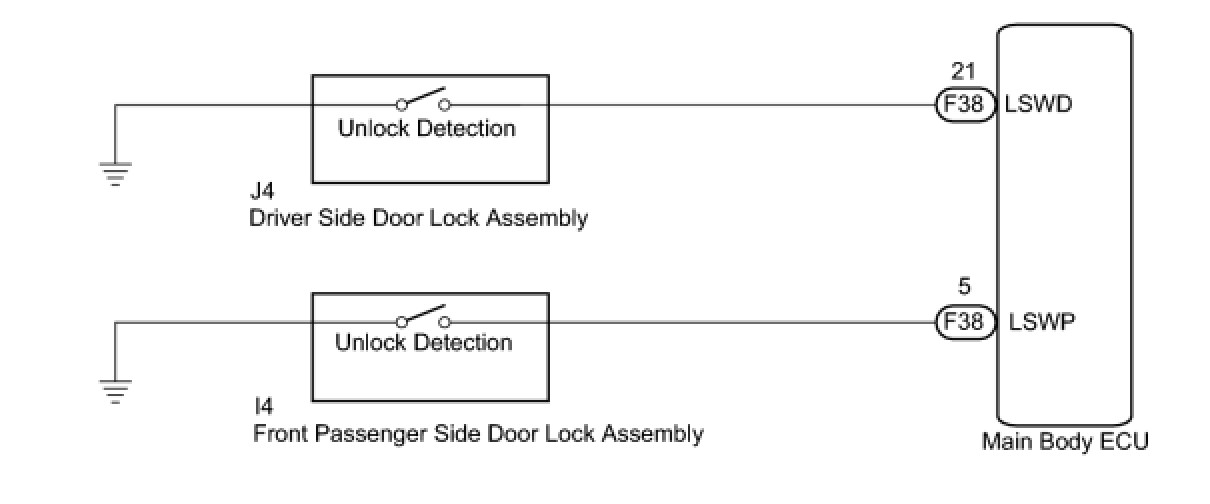

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. READ VALUE USING TECHSTREAM (DOOR LOCK POS SW)

(a) Connect a Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the tester on.

(d) Select the following menus: Body Electrical / Main Body / Data List /

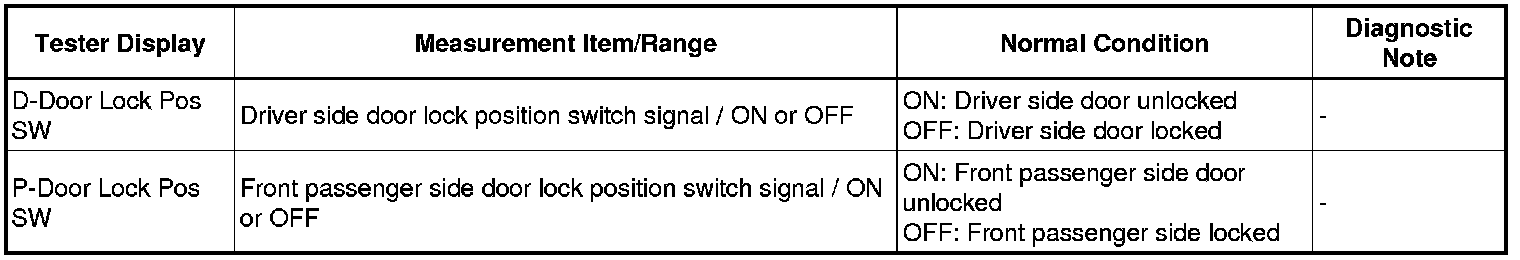

(e) According to the display on tester, read the "Data List".

Main Body (Main Body ECU)





OK:

Normal conditions listed above are displayed.

NG -- GO TO POWER DOOR LOCK CONTROL SYSTEM Symptom Related Diagnostic Procedures

OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE Symptom Related Diagnostic Procedures
