Meter / Gauge System

METER: METER / GAUGE SYSTEM: DATA LIST / ACTIVE TEST

1. READ DATA LIST

HINT
Using the tester's "Data List" allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the "Data List" early in troubleshooting is one way to save time.

(a) Connect a Techstream to the DLC3.

(b) Turn the ignition switch on and turn the tester on.

(c) Enter the following menu items: Body Electrical / Combination Meter / Data List.

(d) Check the results by referring to the table below.

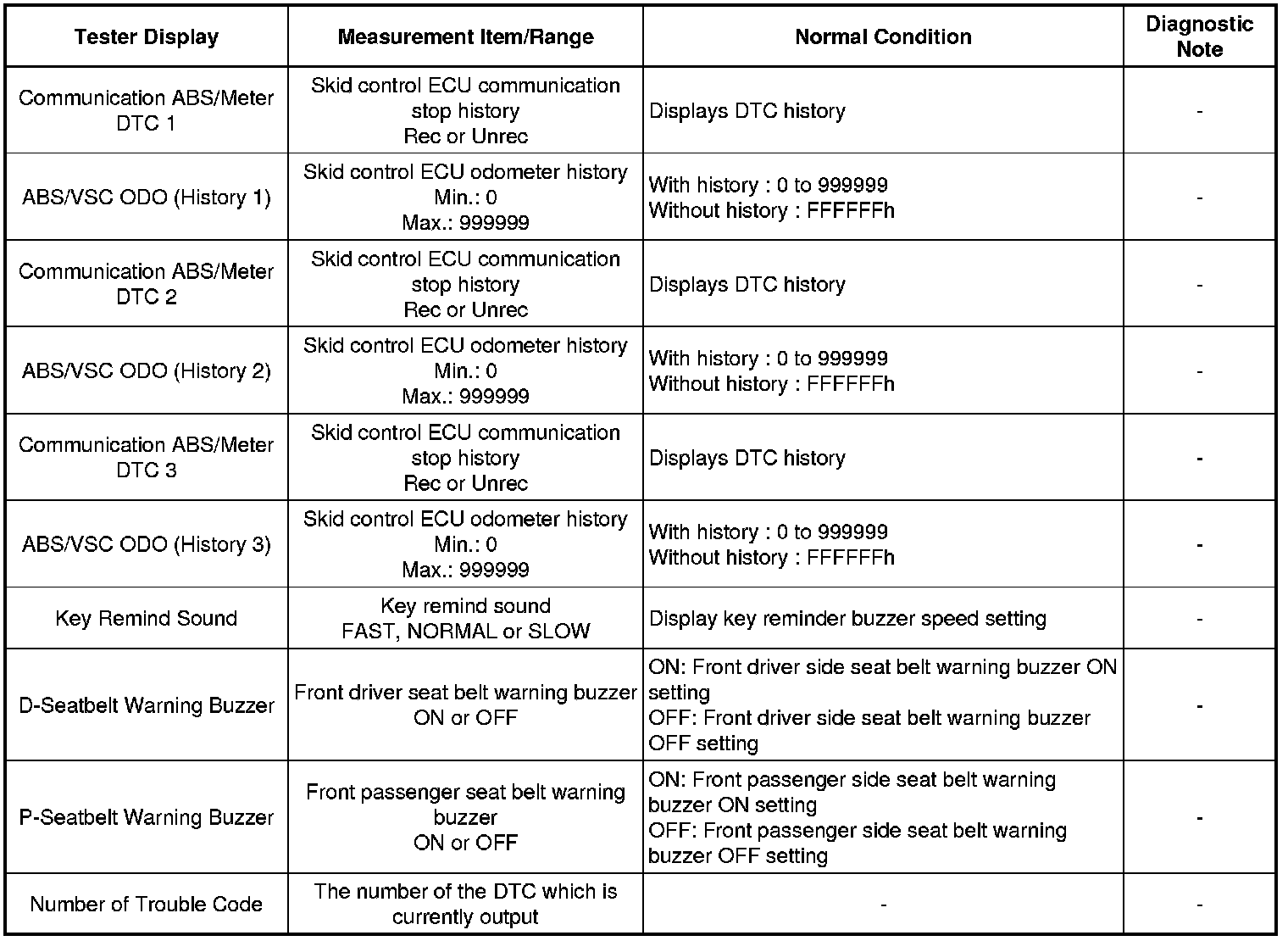

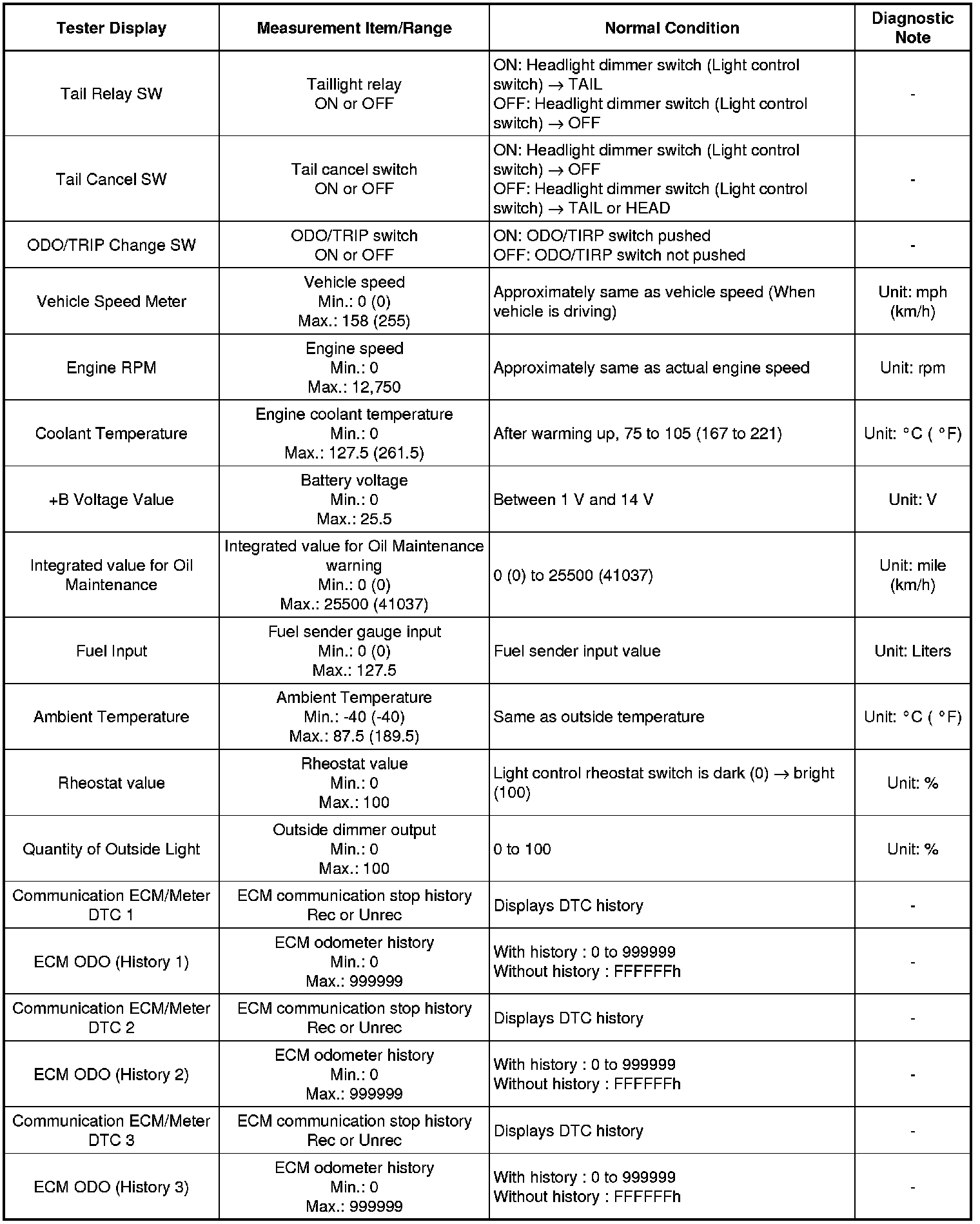

Body Electrical / Combination Meter / Data List:

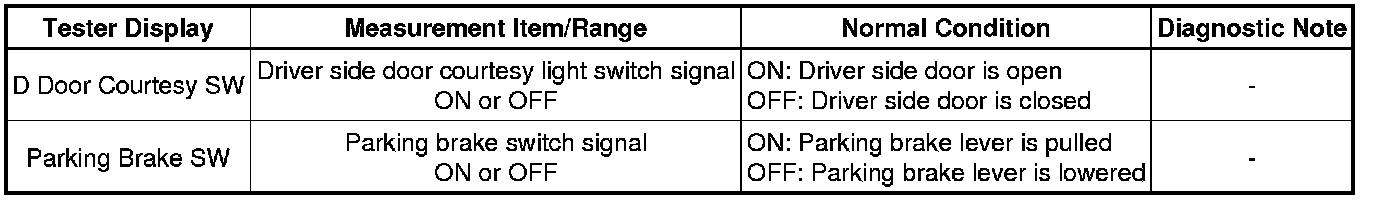

Body Electrical / Main Body / Data List:





2. PERFORM ACTIVE TEST

HINT
Performing the tester's "Active Test" allows relay, VSV, actuator and other items to be operated without removing any parts.

Performing the "Active Test" early in troubleshooting is one way to save time.

The "Data List" can be displayed during the "Active Test".

(a) Connect a Techstream to the DLC3.

(b) Turn the ignition switch on and turn the tester on.

(c) Enter the following menu items: Body Electrical / Combination Meter / Active Test.

(d) Perform the "Active Test" by referring to the table below.

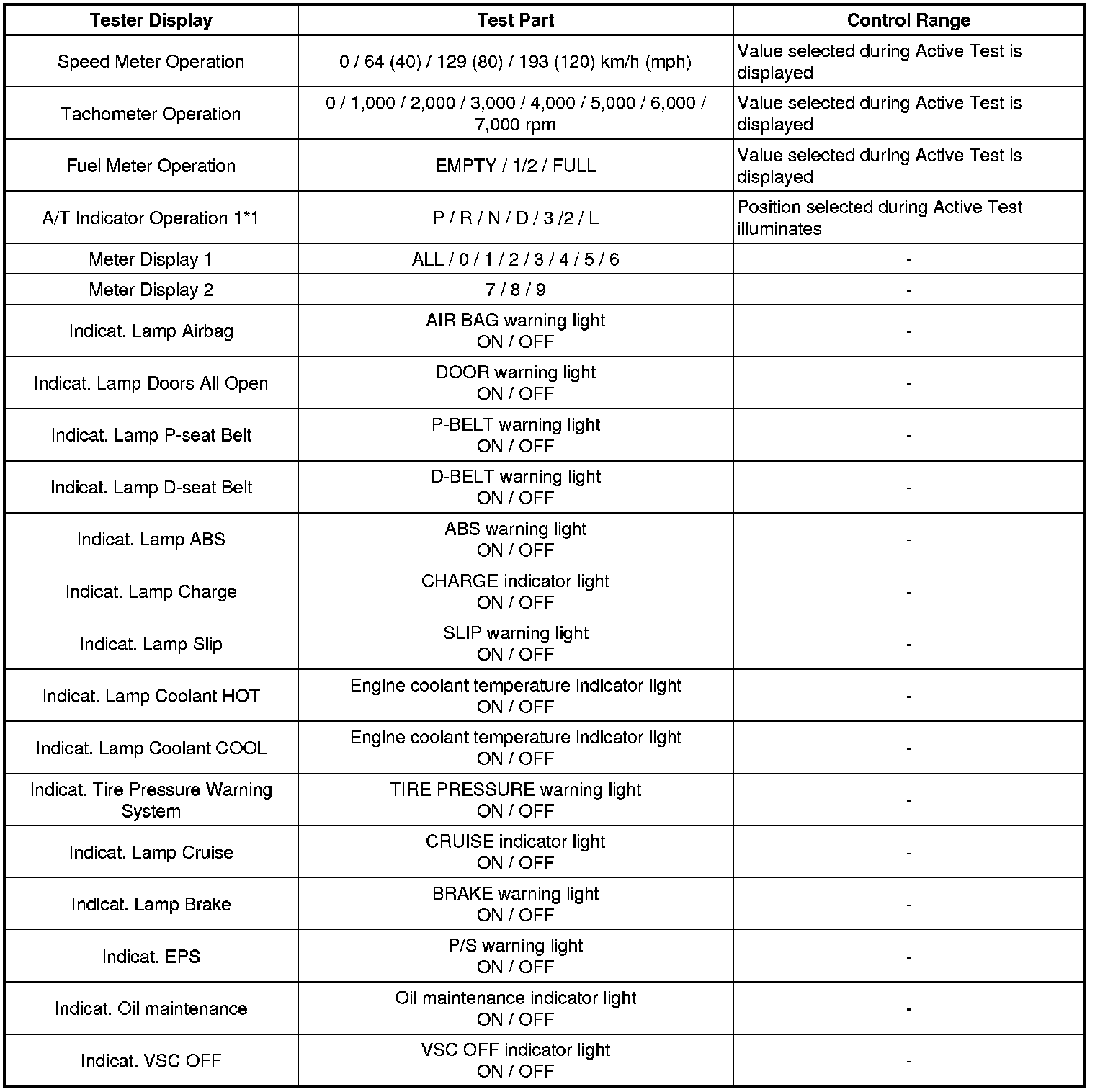

Body Electrical / Combination Meter / Active Test:





* *1: for Automatic Transaxle
