Meter / Gauge System

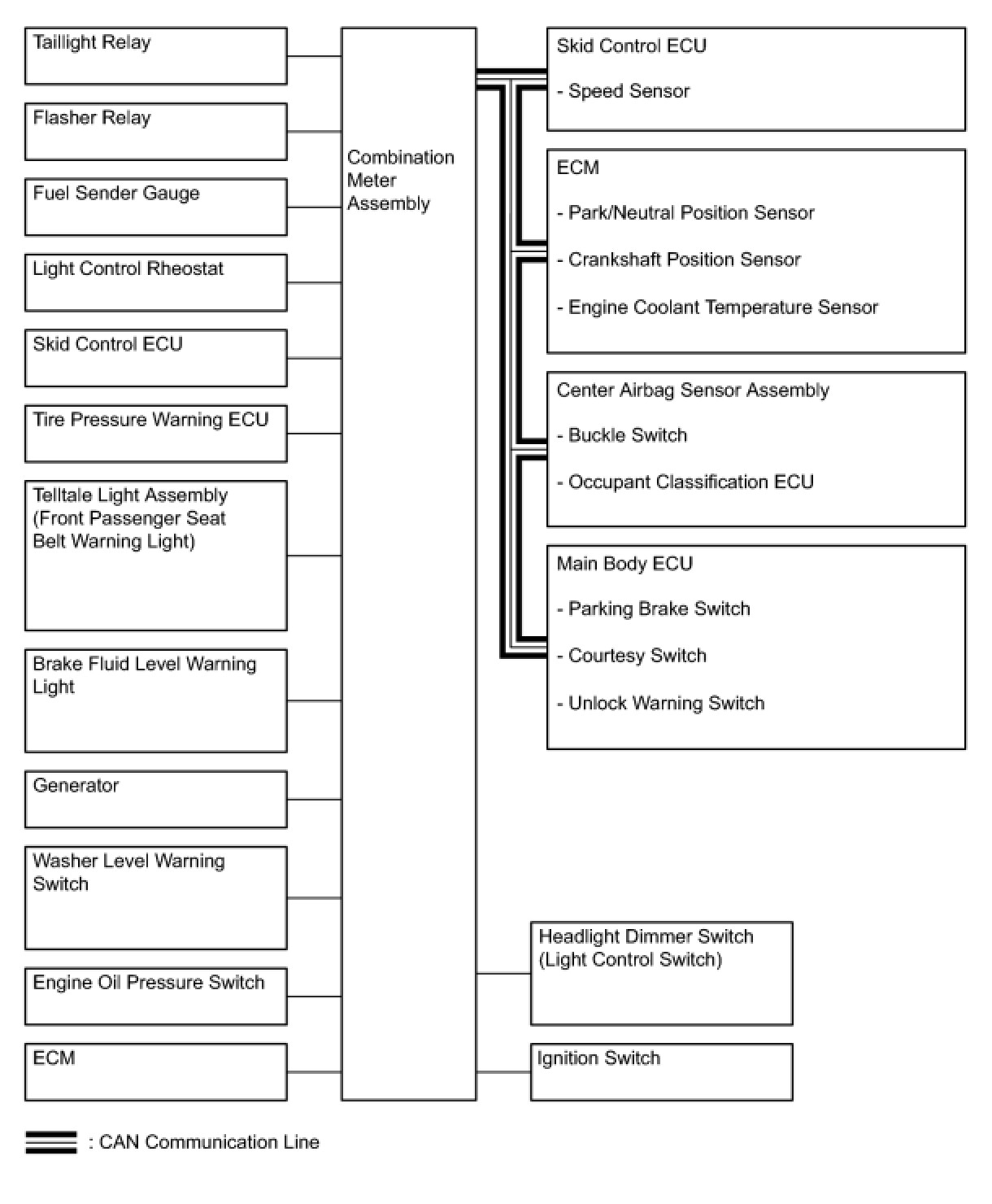

METER: METER / GAUGE SYSTEM: SYSTEM DIAGRAM






SYSTEM DESCRIPTION

1. METER GAUGE AND WARNING INDICATOR

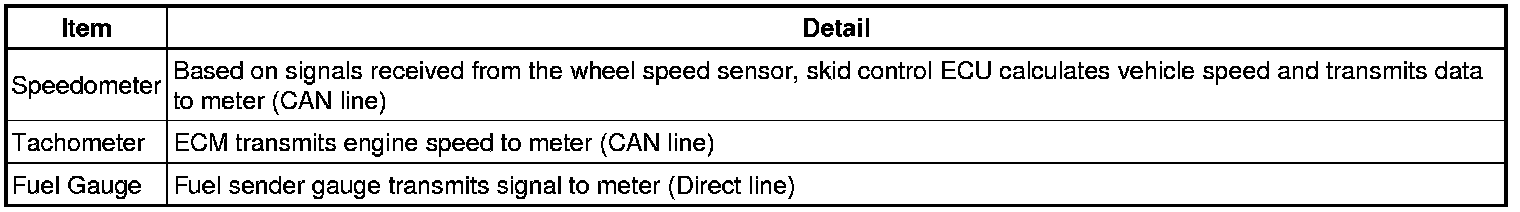

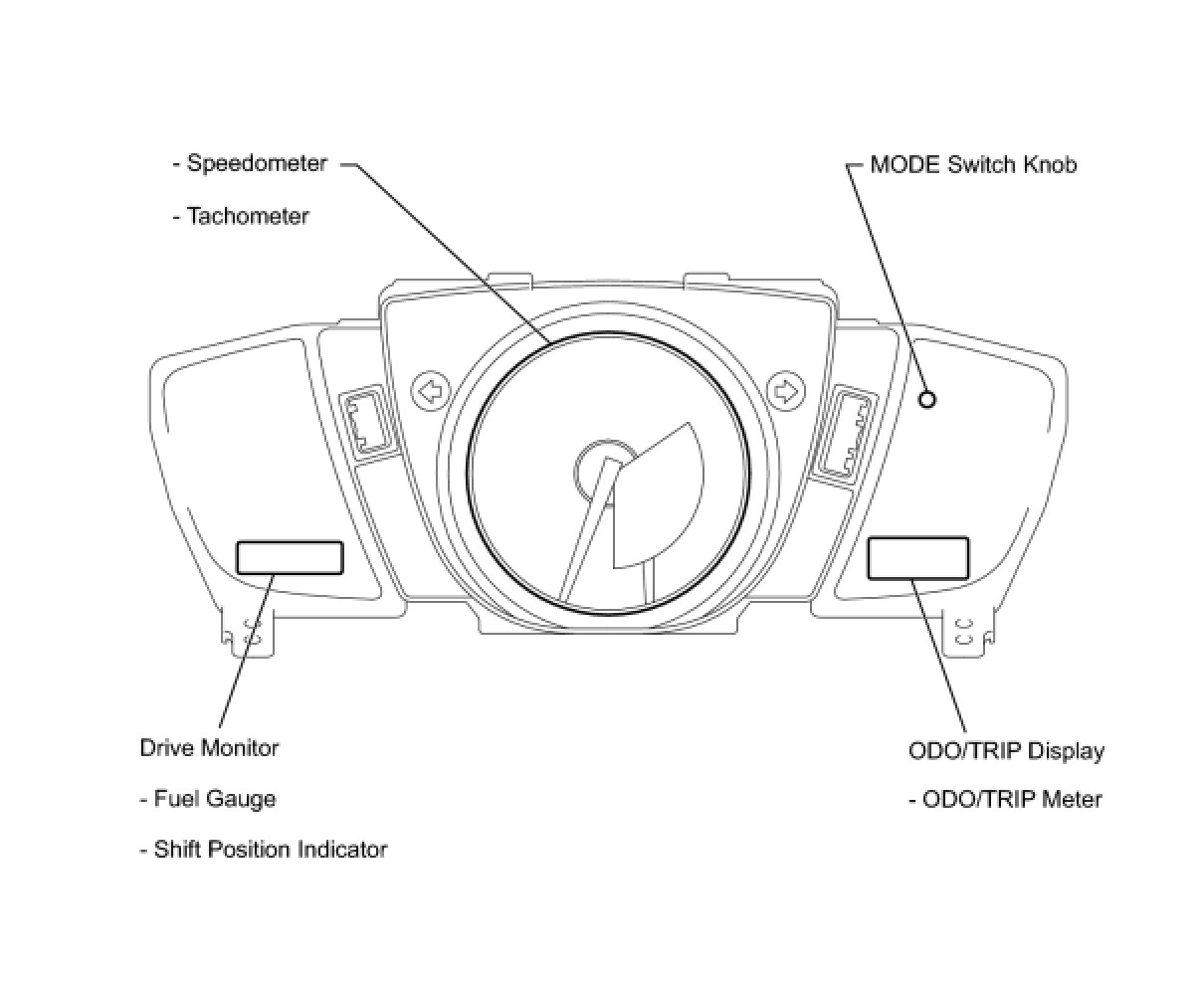

Meter/Gauge

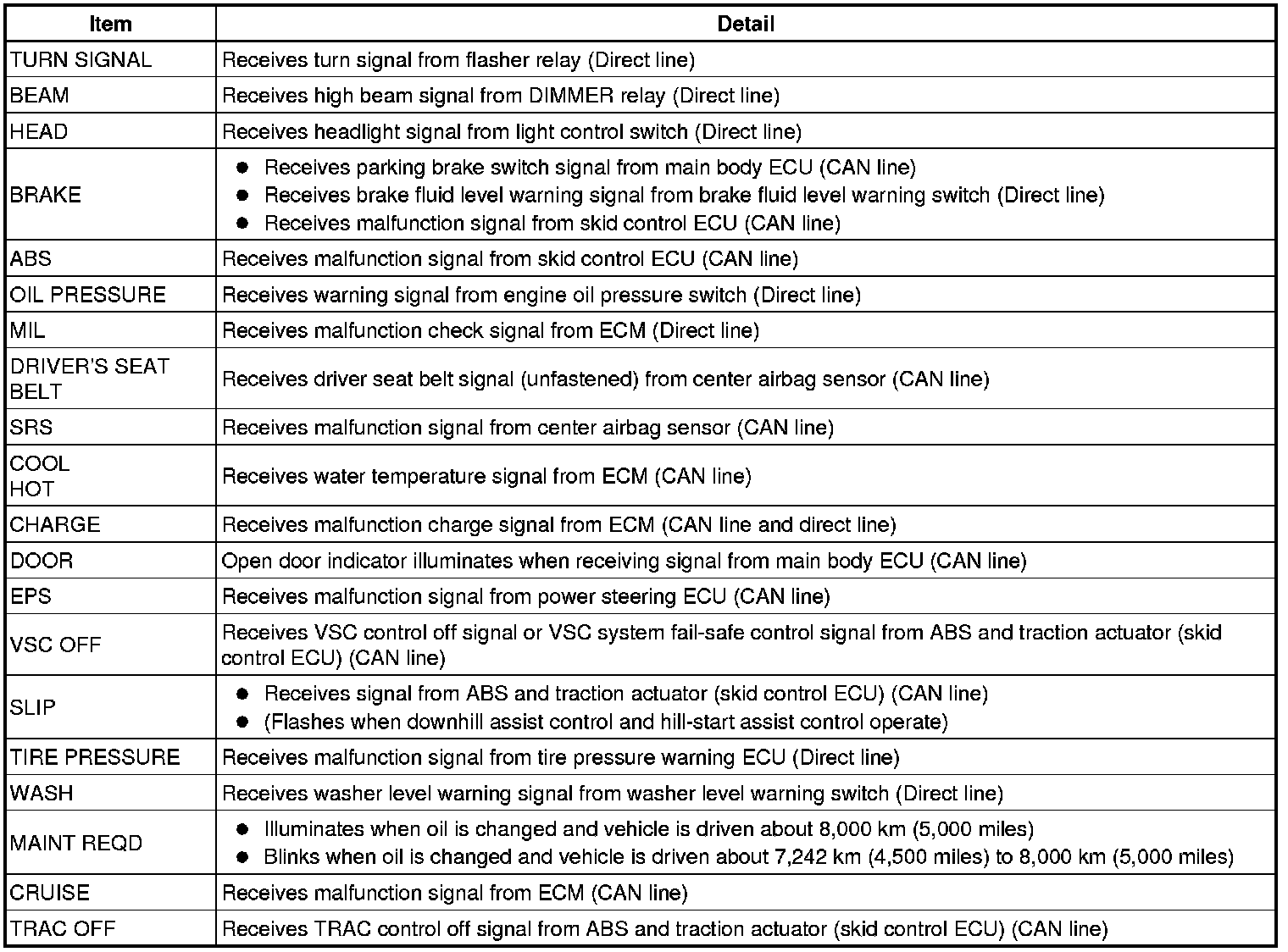

Warning/Indicator

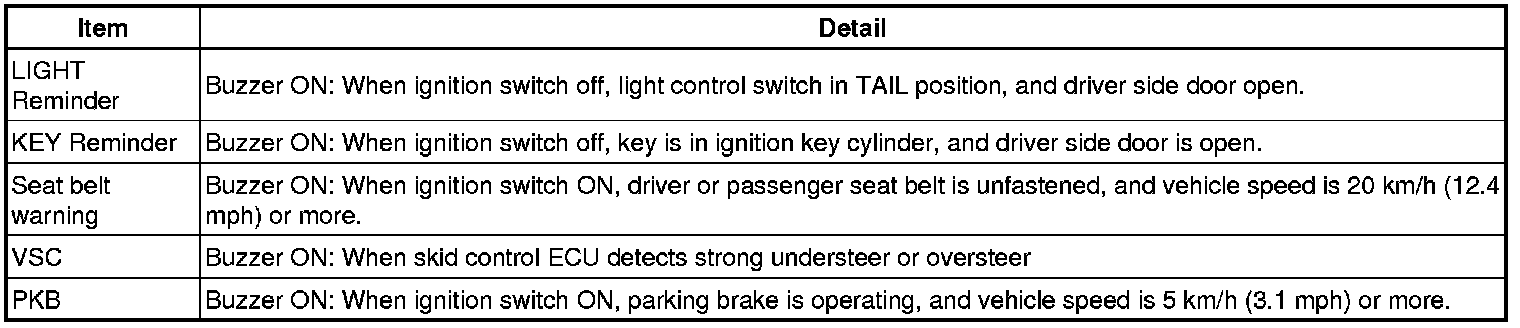

Buzzer
