Pinout Values and Diagnostic Parameters





OTHER SYSTEM: CLOCK SYSTEM: TERMINALS OF ECU

1. CLOCK

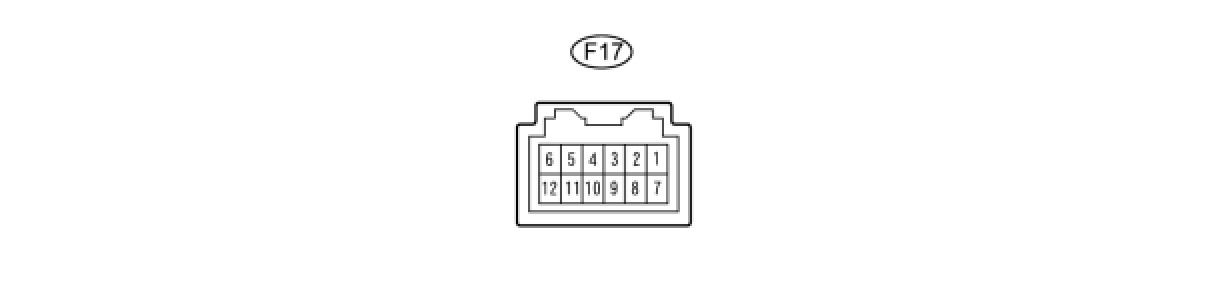

(a) Disconnect the clock connector.

(b) Measure the voltage of the wire harness side connector.

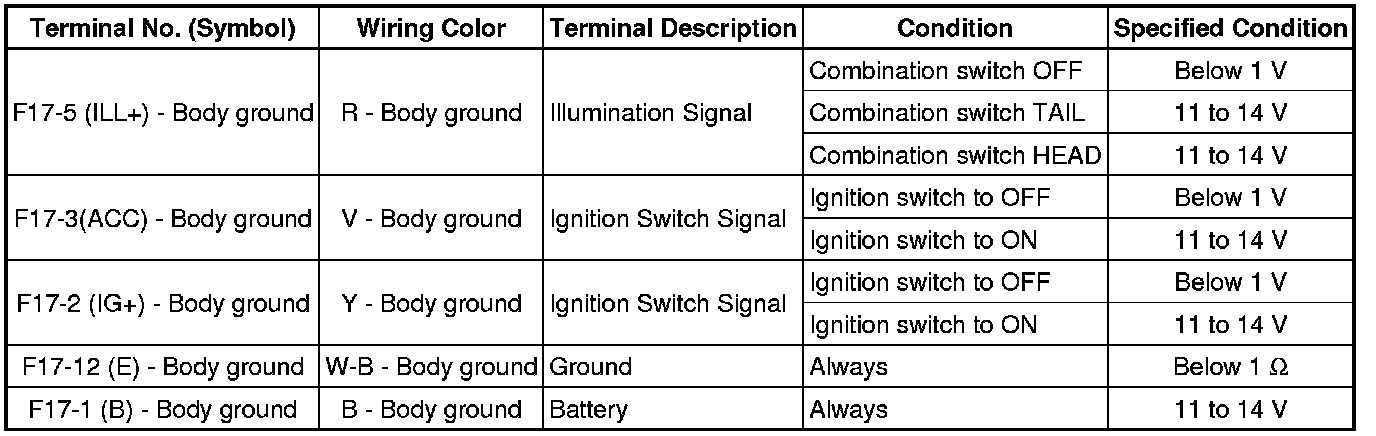

Standard voltage:





If the result is not as specified, there may be a malfunction on the wire harness side.
