Torque Specifications





SERVICE SPECIFICATIONS: AIR CONDITIONING: TORQUE SPECIFICATIONS

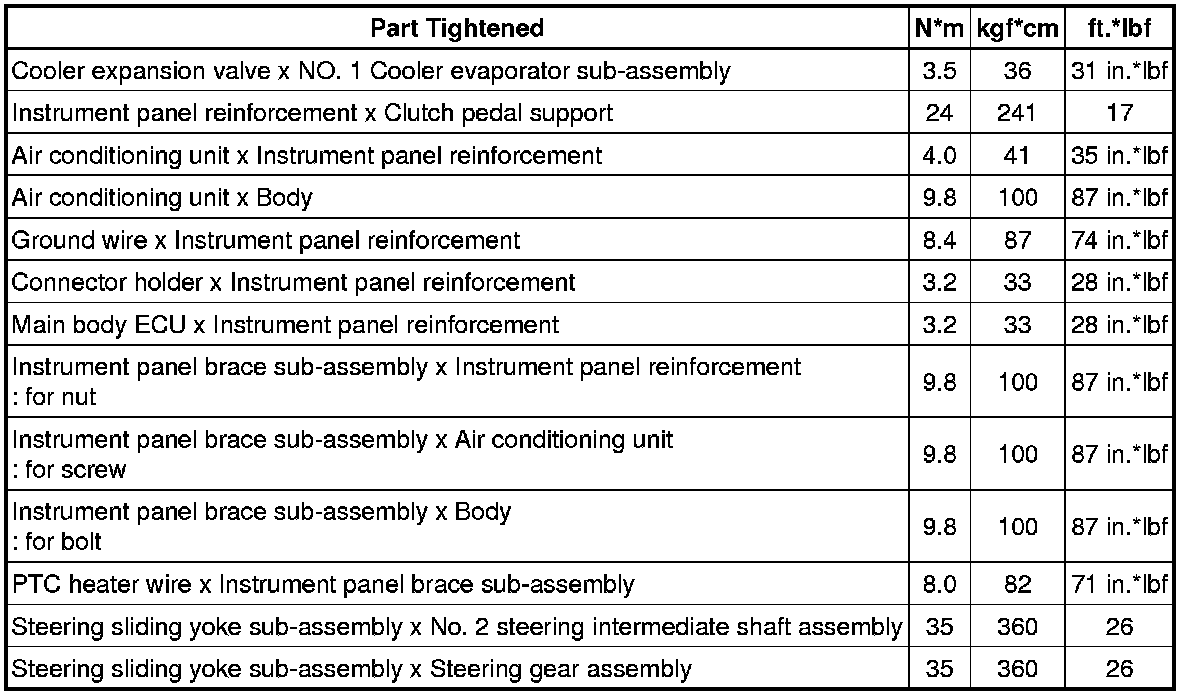

AIR CONDITIONING UNIT





COMPRESSOR

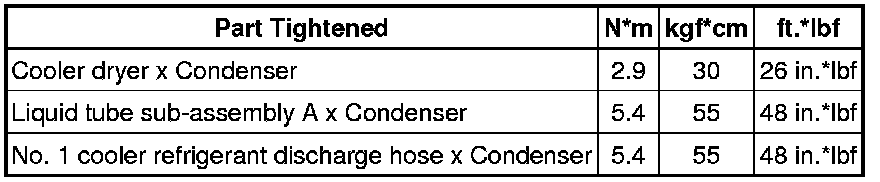

CONDENSER





AIR CONDITIONING PRESSURE SENSOR
