Removal

2ZR-FE EXHAUST: EXHAUST MANIFOLD: REMOVAL

1. REMOVE AIR FUEL RATIO SENSOR

Refer to the procedures under "REMOVE AIR FUEL RATIO SENSOR" Removal.

2. REMOVE ENGINE UNDER COVER RH

3. REMOVE FRONT EXHAUST PIPE ASSEMBLY

Refer to the procedures under "REMOVE FRONT EXHAUST PIPE ASSEMBLY" Removal.

4. DRAIN AUTOMATIC TRANSAXLE FLUID (for Automatic Transaxle)

5. DRAIN MANUAL TRANSAXLE OIL (for Manual Transaxle)

6. REMOVE FRONT WHEEL

7. REMOVE FRONT AXLE SHAFT RH NUT Removal

8. REMOVE FRONT SPEED SENSOR RH Removal

9. REMOVE TIE ROD END SUB-ASSEMBLY RH Removal

10. REMOVE FRONT STABILIZER LINK ASSEMBLY RH Removal

11. REMOVE NO. 1 FRONT LOWER SUSPENSION ARM SUB-ASSEMBLY RH Removal

12. SEPARATE FRONT AXLE ASSEMBLY RH Removal

13. REMOVE DRIVE SHAFT ASSEMBLY RH Removal

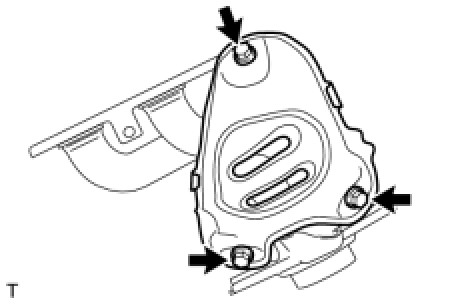

14. REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR





(a) Remove the 4 bolts and remove the No. 1 exhaust manifold heat insulator.

15. REMOVE MANIFOLD STAY





(a) Remove the 3 bolts and remove the manifold stay.

16. REMOVE EXHAUST MANIFOLD





(a) Remove the 5 nuts and remove the exhaust manifold.

17. REMOVE NO. 2 EXHAUST MANIFOLD HEAT INSULATOR





(a) Remove the 3 bolts and remove the No. 2 exhaust manifold heat insulator.
