Removal

2ZR-FE COOLING: COOLING FAN RESISTOR: REMOVAL

1. REMOVE FRONT WHEEL LH

2. SEPARATE FRONT FENDER LINER LH

(a) Remove the 3 screws and 3 clips and separate the front fender liner LH.

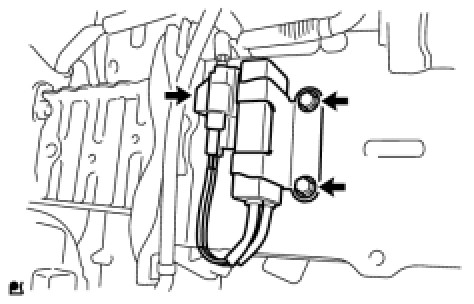

3. REMOVE COOLING FAN RESISTOR





(a) Disconnect the connector from the cooling fan resistor.

(b) Remove the 2 bolts and cooling fan resistor.
