Position of Parts In Engine Compartment
Position of Parts In Engine Compartment

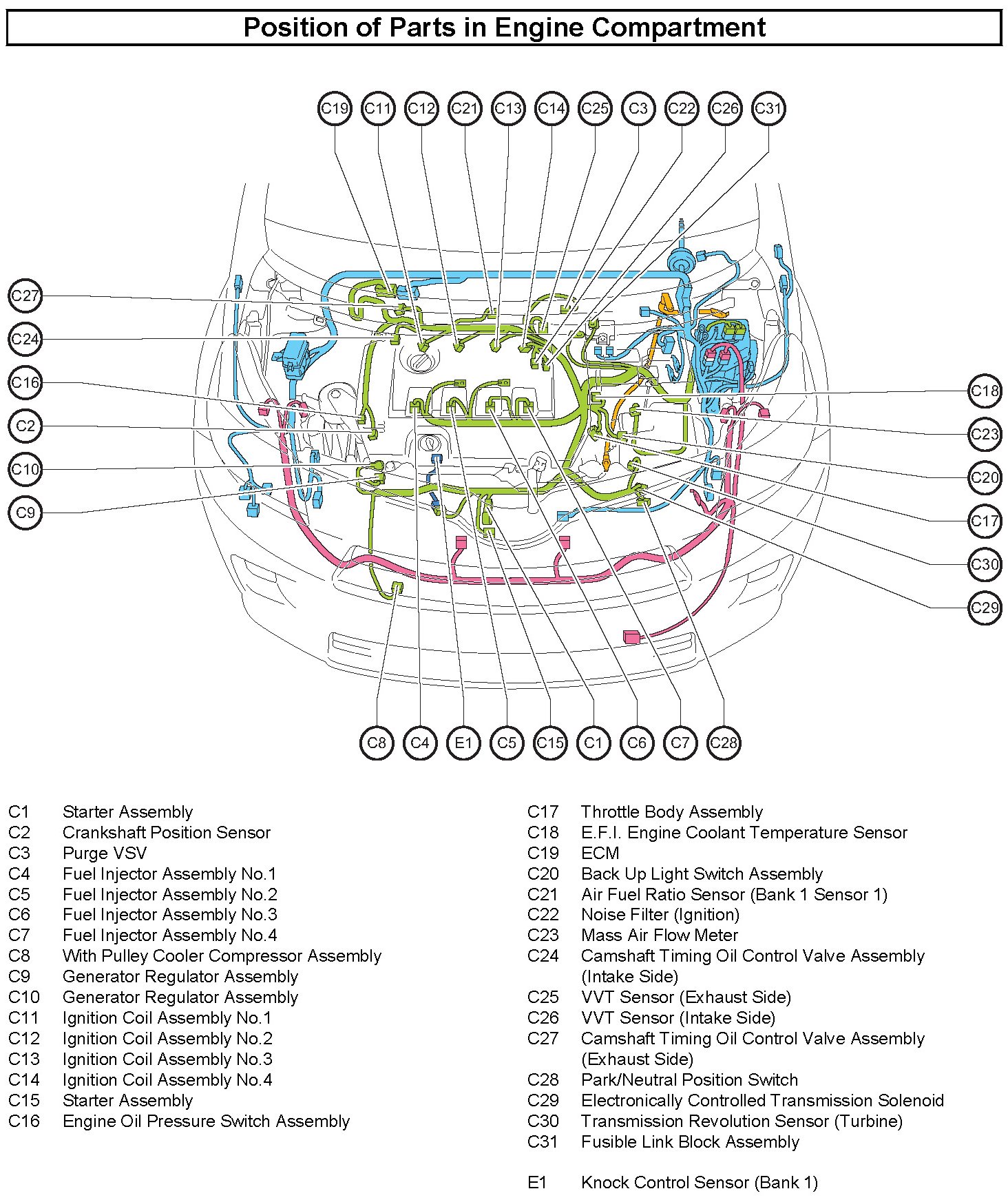

Position of Parts in Engine Compartment:

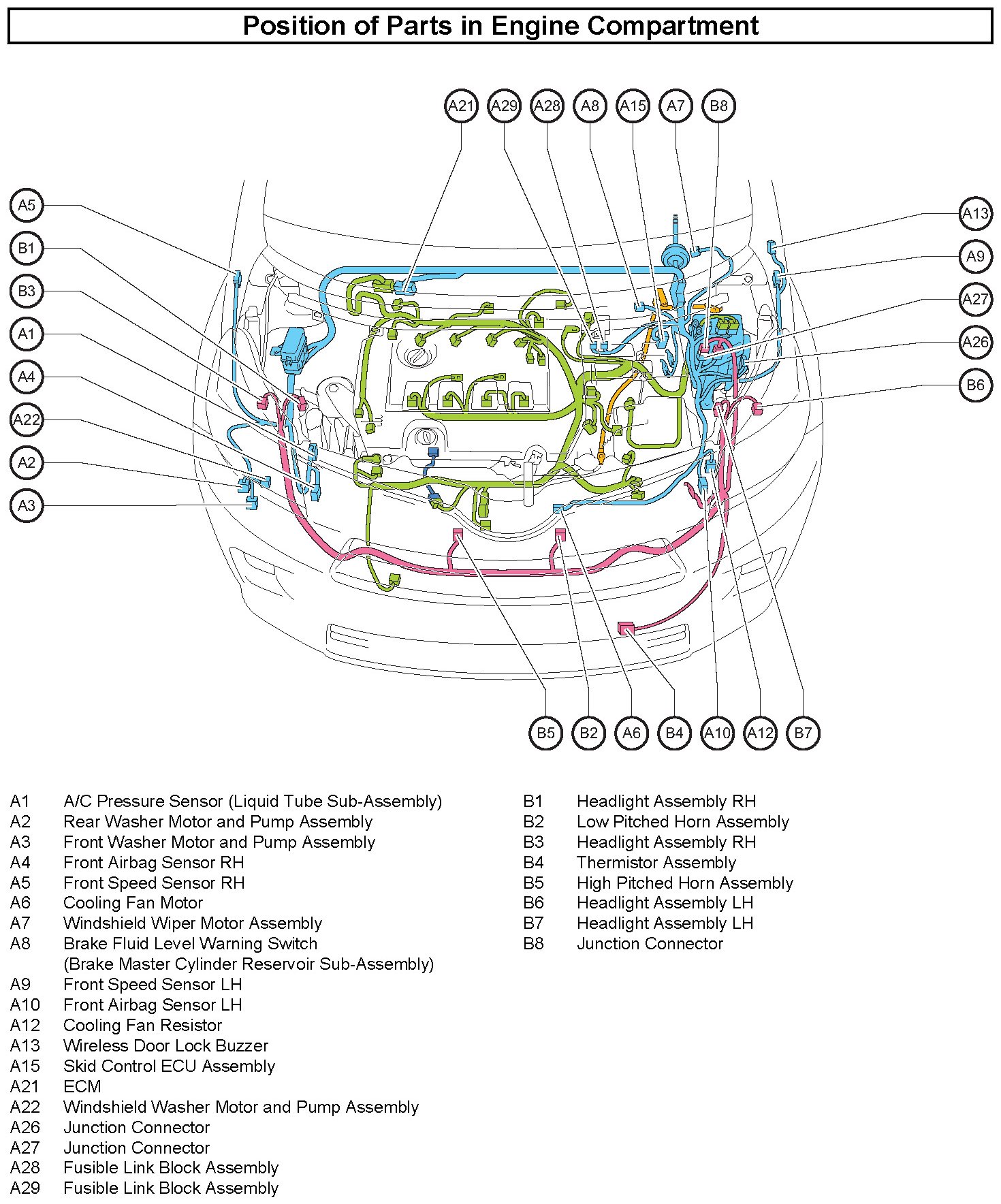

Position of Parts in Engine Compartment:
