Removal

MIRROR: OUTER MIRROR SWITCH: REMOVAL

1. REMOVE INSTRUMENT PANEL BOX Removal

2. REMOVE OUTER MIRROR SWITCH





(a) Disconnect the connector.

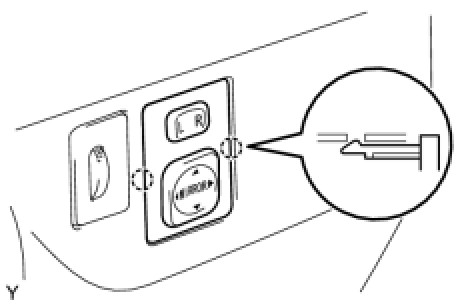

(b) Disengage the 2 claws and remove the outer mirror switch.
