Installation

DOOR LOCK: DOOR CONTROL SWITCH: INSTALLATION

1. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (for Driver Side)





(a) Install the power window regulator master switch assembly with the 3 screws.

2. INSTALL DOOR CONTROL SWITCH (for Front Passenger Side)

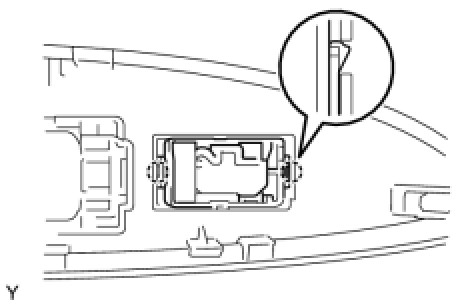

(a) Engage the 2 claws and install the door control switch.





3. INSTALL FRONT DOOR ARMREST BASE UPPER PANEL Reassembly
