Torque Specifications





SERVICE SPECIFICATIONS: SEAT: TORQUE SPECIFICATIONS

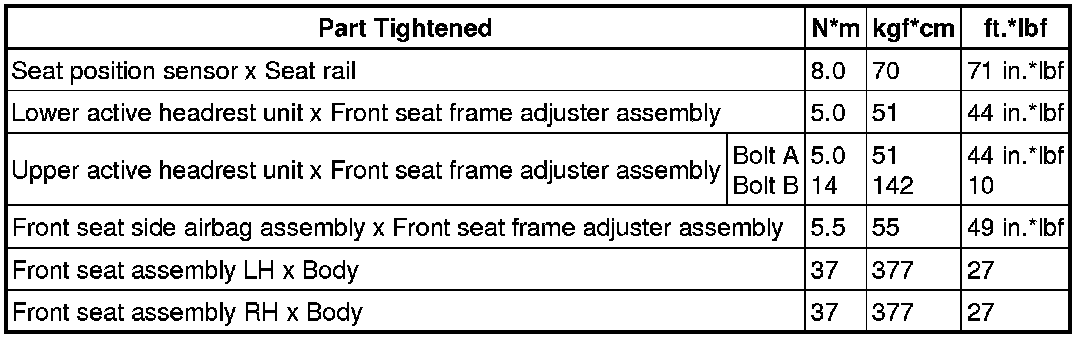

FRONT SEAT ASSEMBLY:

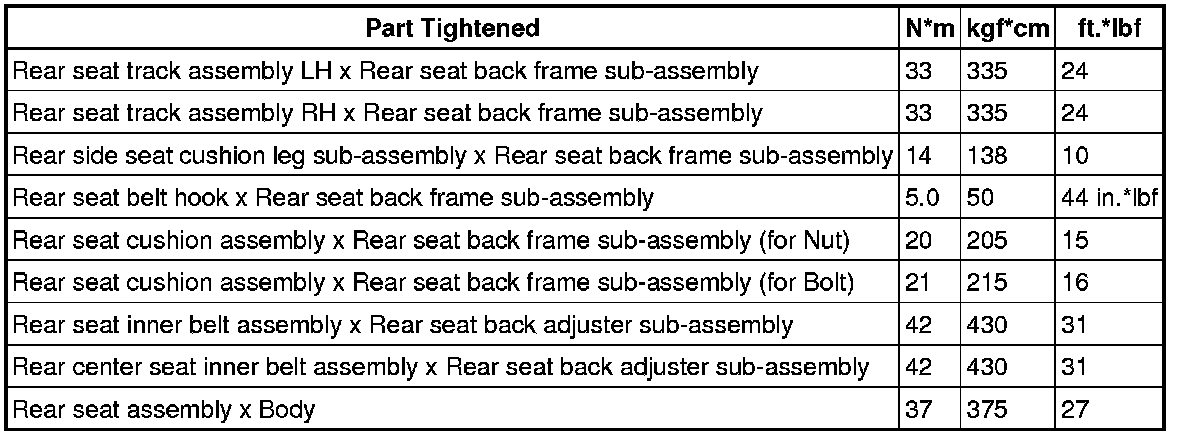

REAR SEAT ASSEMBLY (for LH Side):





REAR SEAT ASSEMBLY (for RH Side):
