Back Door Lock Motor Circuit

DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM: Back Door Lock Motor Circuit
- Back Door Lock Motor Circuit

DESCRIPTION

The back door lock motor is built into the back door lock assembly. The main body ECU controls the back door lock to lock/unlock the back door lock assembly. This main body ECU applies current from terminal ACT+ to terminal ACT- to operate the motor to lock the door. It reverses the direction of the current flow to operate the motor to unlock the door.

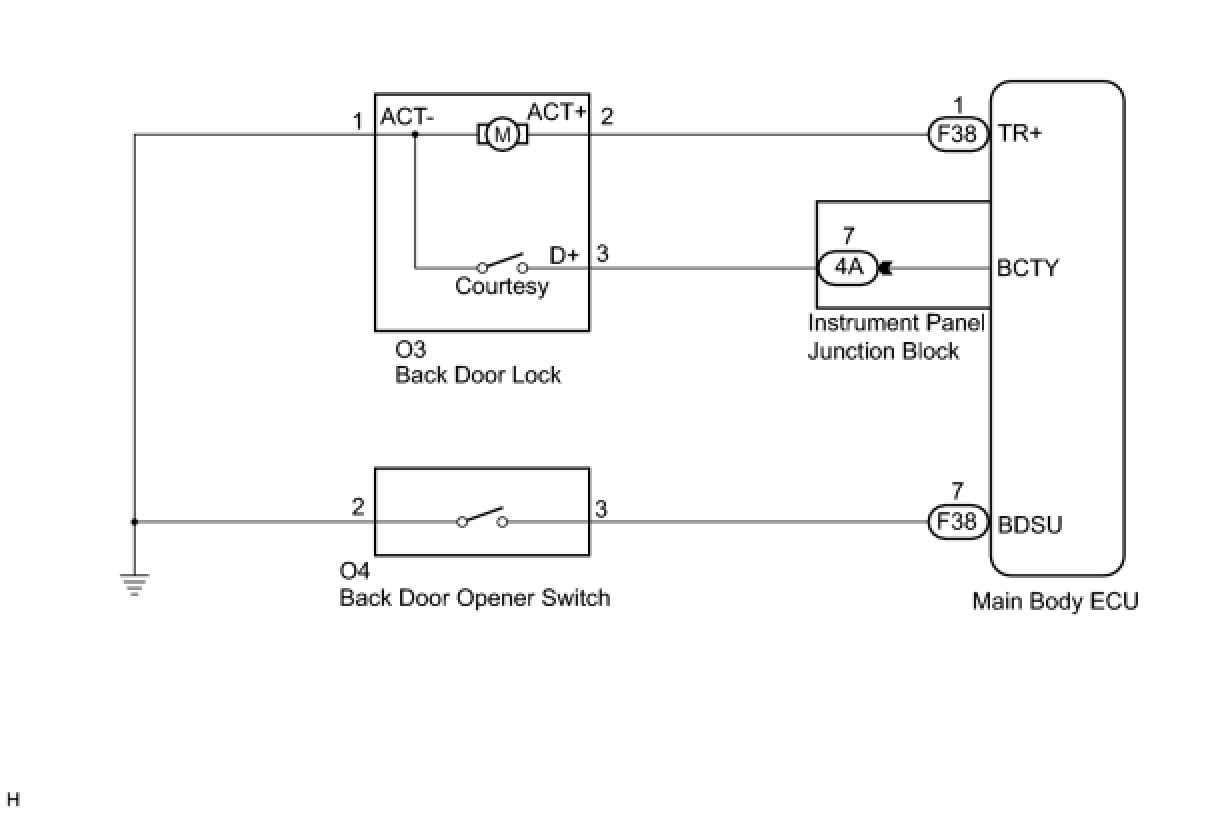

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. PERFORM ACTIVE TEST USING TECHSTREAM (BACK DOOR OPEN)

(a) Select the Active Test and use a Techstream to generate a command.

(b) Check that the back door lock operation is normal.

Main Body:





OK:

Back door lock is opened.

NG -- INSPECT BACK DOOR LOCK

OK -- REPLACE MAIN BODY ECU

2. INSPECT BACK DOOR LOCK

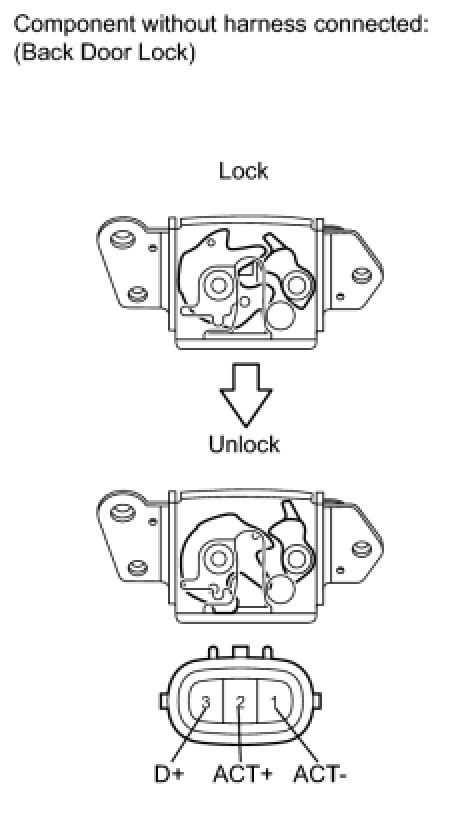

(a) Remove the back door lock Removal.

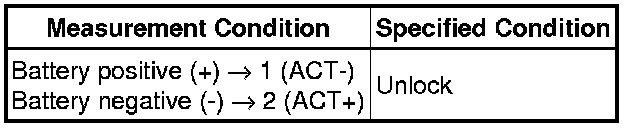

(b) Apply battery voltage and check operation of the door lock motor.

OK:





(c) Reinstall the back door lock Installation.

NG -- REPLACE BACK DOOR LOCK Removal
OK -- Continue to next step.

3. CHECK HARNESS AND CONNECTOR (BACK DOOR LOCK MOTOR - MAIN BODY ECU AND BODY GROUND)

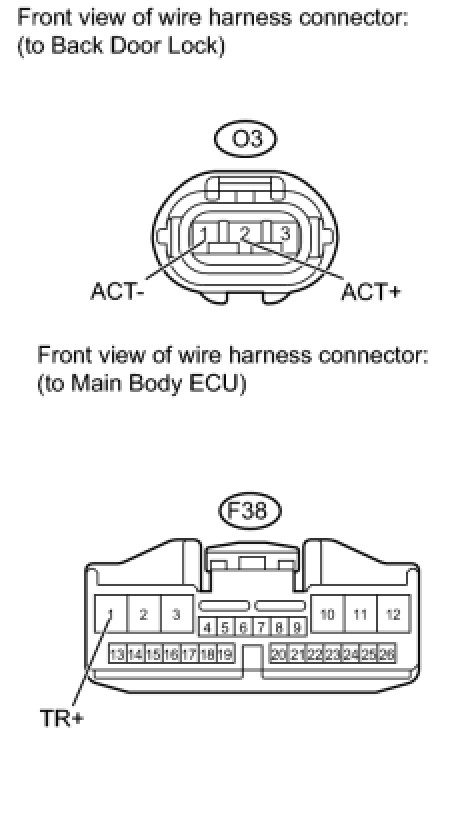

(a) Disconnect the O3 back door lock connector.





(b) Disconnect the F38 main body ECU connector.

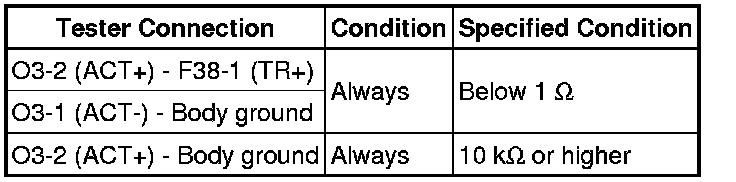

(c) Measure the resistance according to the value(s) in the table below.

Standard resistance:





(d) Reconnect the back door lock connector.

(e) Reconnect the main body ECU connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE MAIN BODY ECU
