Front Door Lock

DOOR LOCK: FRONT DOOR LOCK: INSPECTION

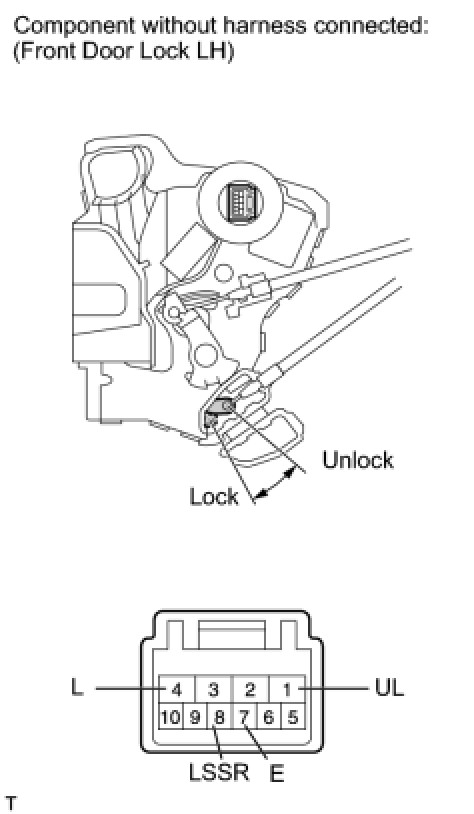

1. INSPECT FRONT DOOR LOCK LH





(a) Check the operation.

(1) Connect the positive (+) lead from the battery to terminal 4 (L) and the negative (-) lead to terminal 1 (UL), then check that the lock locks.

OK:

Locks

If the result is not as specified, replace the front door lock.

(2) Connect the positive (+) lead from the battery to terminal 1 (UL) and the negative (-) lead to terminal 4 (L) , then check that the lock unlocks.

OK:

Unlocks

If the result is not as specified, replace the front door lock.

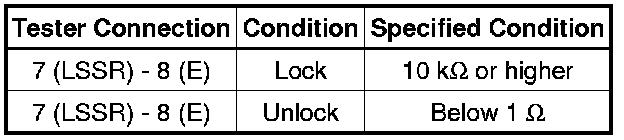

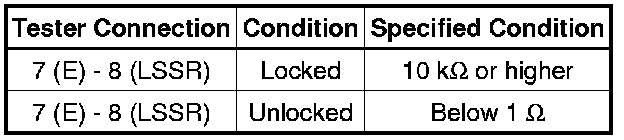

(b) Check the resistance of the unlock detection switch.

(1) Measure the resistance according to the value(s) in the table below.

Standard resistance:





If the result is not as specified, replace the front door lock.

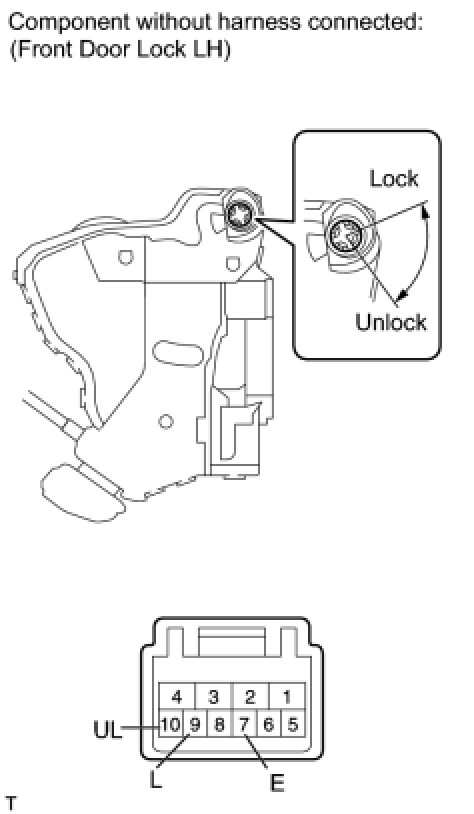

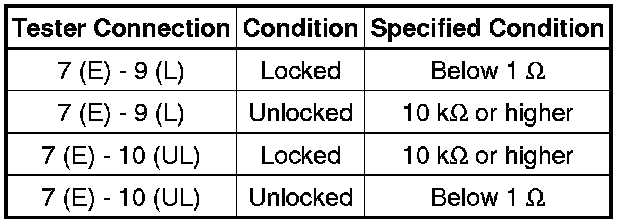

(c) Check the resistance of the door lock and unlock switch.





(1) Measure the resistance according to the value(s) in the table below.

Standard resistance:





If the result is not as specified, replace the front door lock.

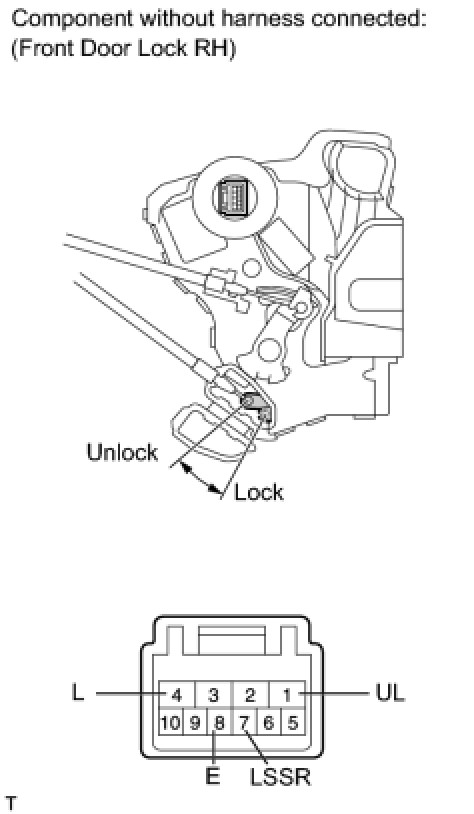

2. INSPECT FRONT DOOR LOCK RH





(a) Check the operation.

(1) Connect the positive (+) lead from the battery to terminal 4 (L) and the negative (-) lead to terminal 1(UL), then check that the lock locks.

OK:

Locks

If the result is not as specified, replace the front door lock.

(2) Connect the positive (+) lead from the battery to terminal 1 (UL) and the negative (-) lead to terminal 4 (L), then check that the lock unlocks.

OK:

Unlocks

If the result is not as specified, replace the front door lock.

(b) Check the resistance of the unlock detection switch.

(1) Measure the resistance according to the value(s) in the table below.

Standard resistance:





If the result is not as specified, replace the front door lock.

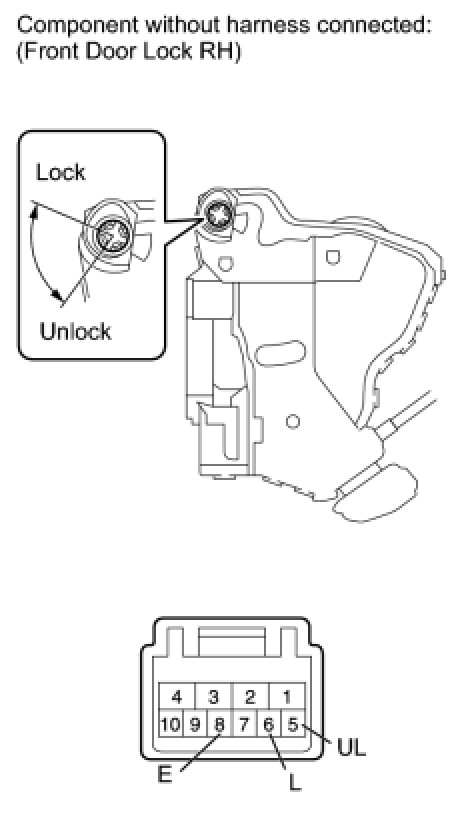

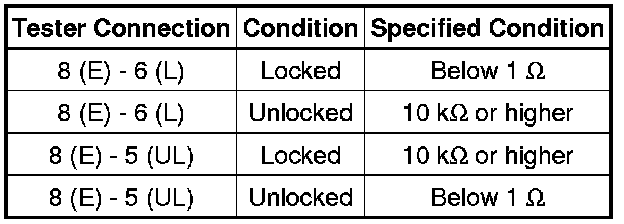

(c) Check the resistance of the door lock and unlock switch.





(1) Measure the resistance according to the value(s) in the table below.

Standard resistance:





If the result is not as specified, replace the front door lock.
