Removal

ENGINE HOOD / DOOR: HOOD LOCK CONTROL CABLE ASSEMBLY: REMOVAL

1. REMOVE FRONT WHEEL

2. REMOVE ROCKER PANEL MOULDING COVER Removal

3. REMOVE SIDE MUDGUARD Removal

4. REMOVE FRONT FENDER LINER LH

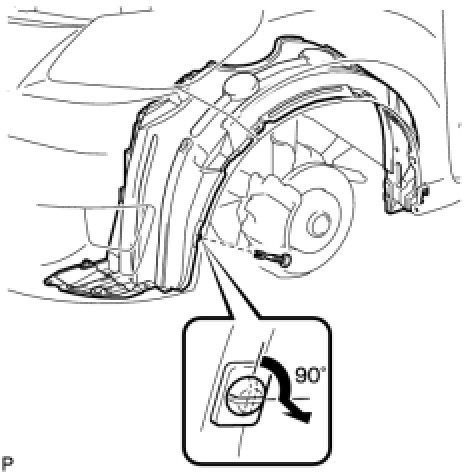

(a) Using a screwdriver, turn the pin 90 degrees and remove the pin hold clip.

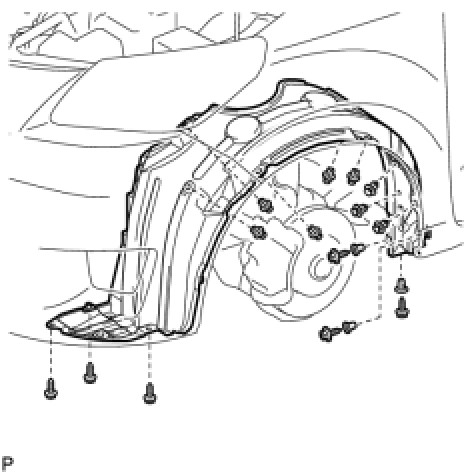

(b) Remove the 8 clips and 6 screws.





(c) Remove the 3 grommets and remove the front fender liner LH.

HINT
The grommet needs to be replaced with a new one because it will break when it is removed.

5. REMOVE HOOD LOCK ASSEMBLY

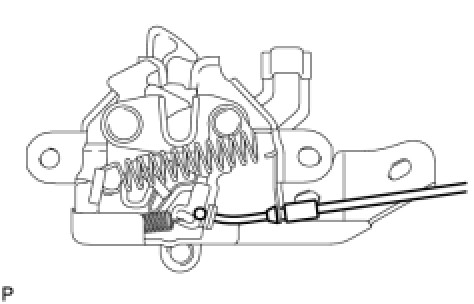

(a) Remove the 3 bolts and remove the hood lock assembly.





(b) Disconnect the hood lock control cable.





6. REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

(a) Disconnect the hood lock control cable and remove the hood lock control lever.





7. REMOVE HOOD LOCK CONTROL CABLE ASSEMBLY

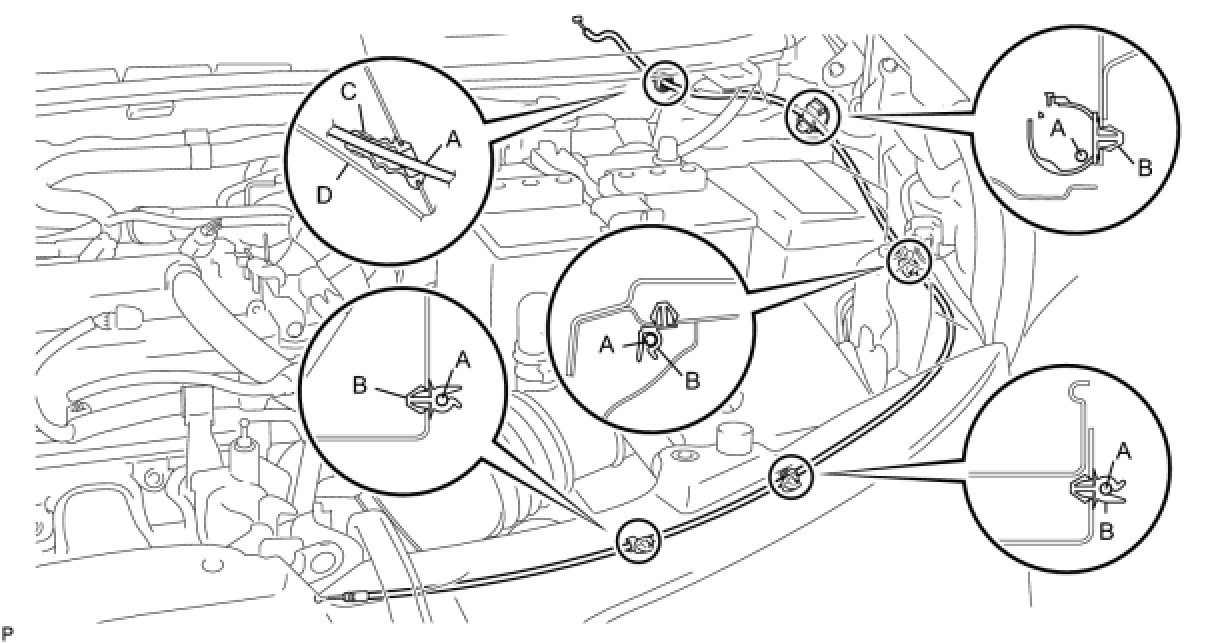

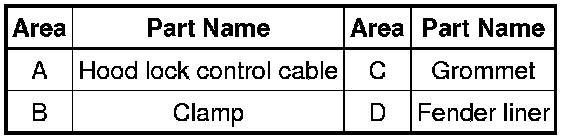

(a) Using a screwdriver with its tip wrapped in protective tape, disconnect the clamps shown in the illustration.









(b) Pull the cable from the engine compartment and remove it.
