Door Courtesy Switch Circuit

ENGINE IMMOBILISER: ENGINE IMMOBILISER SYSTEM: Door Courtesy Switch Circuit
- Door Courtesy Switch Circuit

DESCRIPTION

When an additional transponder key is registered, the transponder key ECU assembly detects the front door courtesy light switch LH open/close condition, and enters the key registration mode.

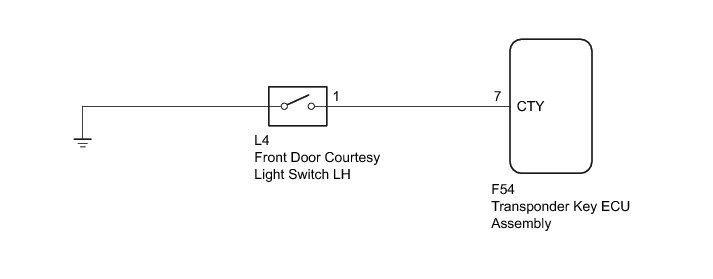

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
If the transponder key ECU assembly is replaced, register the key and ECU communication ID Programming and Relearning.

PROCEDURE

1. READ VALUE USING TECHSTREAM (D DOOR COURTESY SW)

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the Techstream on.

(d) Enter the following menus: Body Electrical / Immobiliser / Data List.

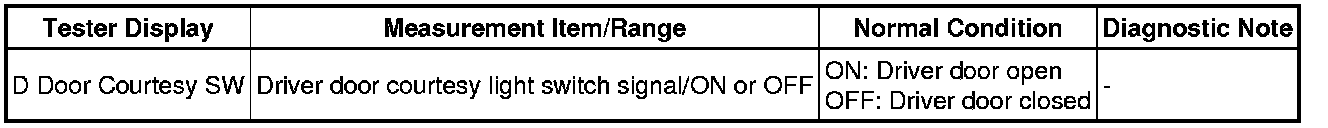

(e) According to the display on the Techstream, read the Data List.

Immobiliser





OK:

The driver door courtesy light switch turns on and off according to operation via the Techstream.

NG -- CHECK HARNESS AND CONNECTOR (FRONT DOOR COURTESY LIGHT SWITCH CIRCUIT)

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Symptom Related Diagnostic Procedures

2. CHECK HARNESS AND CONNECTOR (FRONT DOOR COURTESY LIGHT SWITCH CIRCUIT)

(a) Disconnect the F54 transponder key ECU assembly connector.

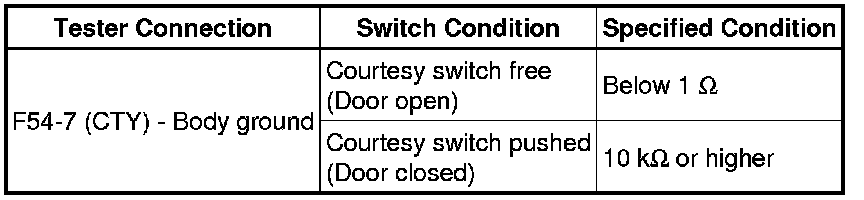

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





(c) Reconnect the transponder key ECU assembly connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

3. INSPECT FRONT DOOR COURTESY LIGHT SWITCH LH

(a) Remove the front door courtesy light switch LH Removal.

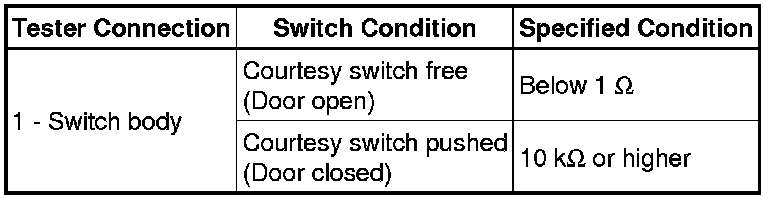

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

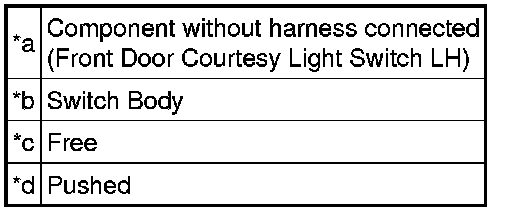

Text in Illustration





(c) Reinstall the front door courtesy light switch LH.

NG -- REPLACE FRONT DOOR COURTESY LIGHT SWITCH LH Removal

OK -- REPLACE TRANSPONDER KEY ECU ASSEMBLY Removal
