P2119
2ZR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P2119: Throttle Actuator Control Throttle Body Range / Performance
P2119 - Throttle Actuator Control Throttle Body Range / Performance

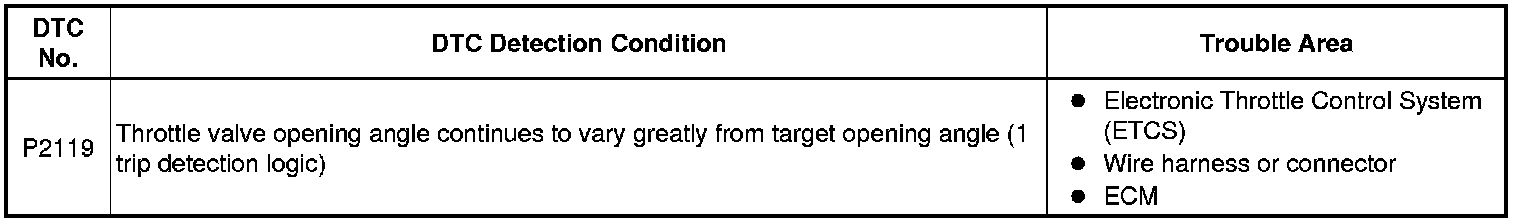

DESCRIPTION
The Electronic Throttle Control System (ETCS) is composed of the throttle actuator, Throttle Position (TP) sensor, Accelerator Pedal Position (APP) sensor, and ECM. The ECM operates the throttle actuator to regulate the throttle valve in response to driver inputs. The TP sensor detects the opening angle of the throttle valve, and provides the ECM with feedback so that the throttle valve can be appropriately controlled by the ECM.
MONITOR DESCRIPTION
The ECM determines the actual opening angle of the throttle valve from the TP sensor signal. The actual opening angle is compared to the target opening angle commanded by the ECM. If the difference between these two values is outside the standard range, the ECM interprets this as a malfunction in the ETCS. The ECM then illuminates the MIL and sets the DTC.
If the malfunction is not repaired successfully, the DTC is set when the accelerator pedal is quickly released (to close the throttle valve) after the engine speed reaches 5000 rpm by fully depressing the accelerator pedal (fully open the throttle valve).

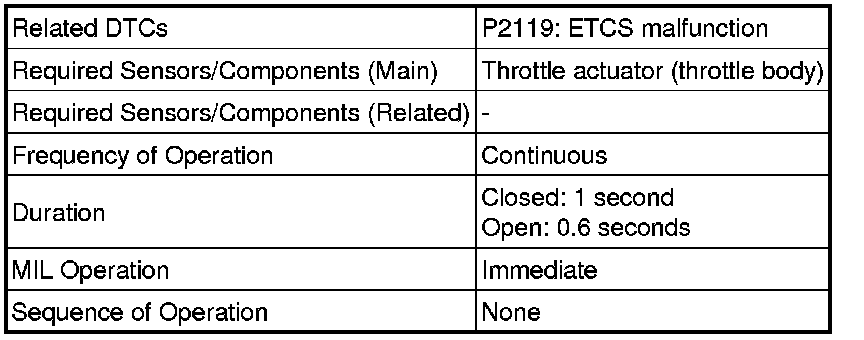

MONITOR STRATEGY

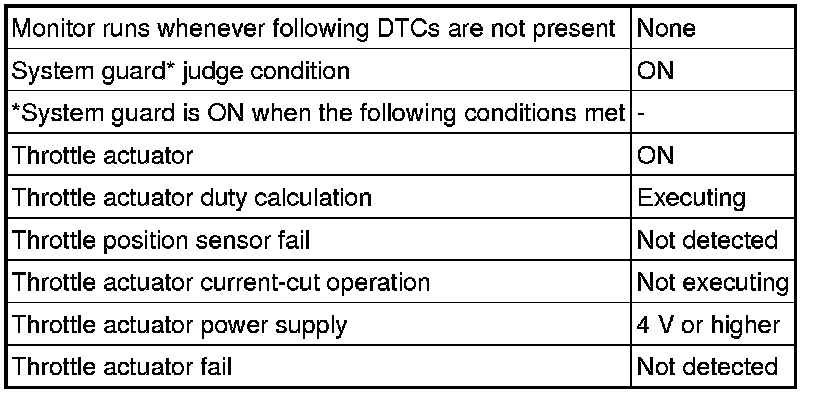

TYPICAL ENABLING CONDITIONS

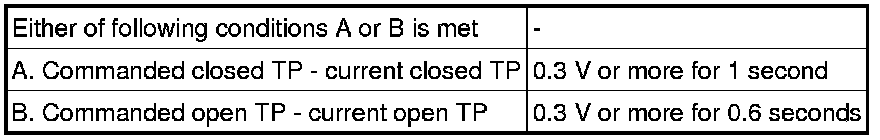

TYPICAL MALFUNCTION THRESHOLDS

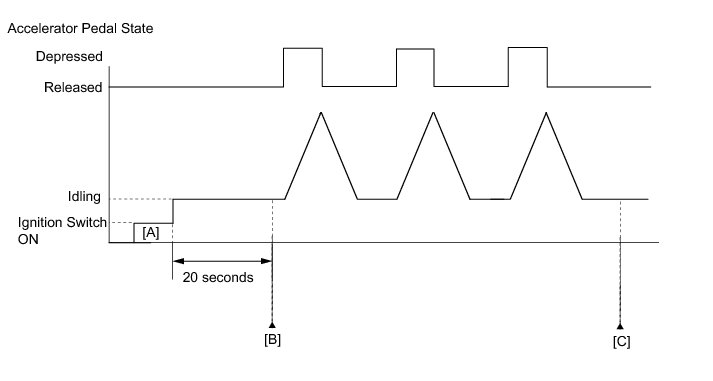

CONFIRMATION DRIVING PATTERN
1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON and turn the Techstream on.
3. Clear DTCs (even if no DTCs are stored, perform the clear DTC operation).
4. Turn the ignition switch off and wait for at least 30 seconds.
5. Turn the ignition switch to ON and turn the Techstream on [A].
6. Start the engine.
7. Idle the engine for 20 seconds.
8. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes [B].
9. Read the DTCs.
HINT
- If a DTC is output, the system is malfunctioning.
- If a DTC is not output, perform the following procedure.
10. Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.
11. Input the DTC: P2119.
12. Check the DTC judgment result.
HINT
- If the judgment result shows NORMAL, the system is normal.
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows INCOMPLETE or UNKNOWN, fully depress and release the accelerator pedal 3 times, and then check the DTC judgment result [C].
13. If no DTC is output, perform a universal trip and check for permanent DTCs Reading and Clearing Diagnostic Trouble Codes.
HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.
FAIL-SAFE
When this DTC, as well as other DTCs relating to ETCS (Electronic Throttle Control System) malfunctions, is set, the ECM enters fail-safe mode. During fail-safe mode, the ECM cuts the current to the throttle actuator, and the throttle valve is returned to a 6° throttle angle by the return spring. The ECM then adjusts the engine output by controlling the fuel injection (intermittent fuel-cut) and ignition timing, in accordance with the accelerator pedal opening angle, to allow the vehicle to continue running at a minimal speed. If the accelerator pedal is depressed firmly and gently, the vehicle can be driven slowly.
Fail-safe mode continues until a pass condition is detected, and the ignition switch is then turned off.
WIRING DIAGRAM
Refer to DTC P2102 P2102.
INSPECTION PROCEDURE
HINT
- Refer to "Data List / Active Test" [Throttle Position Command, Throttle Position No. 1, Throttle Motor Current, Throttle Motor Duty (Open) and Throttle Motor Duty (Close)] Data List / Active List.
- Read freeze frame data using the Techstream. Freeze frame data records the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.
PROCEDURE
1. CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P2119)
(a) Connect the Techstream to the DLC3.
(b) Turn the ignition switch to ON.
(c) Turn the Techstream on.
(d) Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
(e) Read the DTCs.

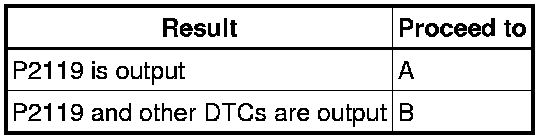

Result
HINT
If any DTCs other than P2119 are output, troubleshoot those DTCs first.
B -- GO TO DTC CHART Engine Control System - SFI System
A -- Continue to next step.
2. READ VALUE USING TECHSTREAM (THROTTLE POSITION)
(a) Connect the Techstream to the DLC3.
(b) Turn the ignition switch to ON.
(c) Turn the Techstream on.
(d) Clear DTCs Reading and Clearing Diagnostic Trouble Codes.
(e) Turn the ignition switch off and wait for at least 30 seconds.
(f) Turn the ignition switch to ON.
(g) Enter the following menus: Powertrain / Engine and ECT / Data List / Throttle Position No. 1 and Throttle Position Command.
(h) Read the values displayed on the Techstream while fully depressing and releasing the accelerator pedal quickly.

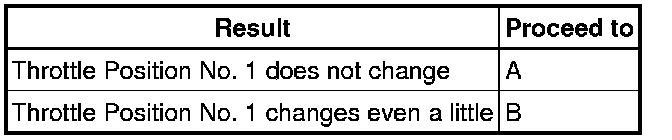

Result
HINT
When a DTC is output, the system changes to fail-safe mode. Therefore, only use the data up until the time the DTC is stored for confirmation.
B -- INSPECT THROTTLE BODY (VISUALLY CHECK THROTTLE VALVE)
A -- Continue to next step.
3. INSPECT THROTTLE BODY (RESISTANCE OF THROTTLE ACTUATOR)
(a) Inspect the throttle body Inspection.
NG -- REPLACE THROTTLE BODY
OK -- Continue to next step.
4. INSPECT THROTTLE BODY (VISUALLY CHECK THROTTLE VALVE)
(a) Check for contamination between the throttle valve and housing. If necessary, clean the throttle body. Also, check that the throttle valve moves smoothly.
OK:
Throttle valve is not contaminated with foreign objects and moves smoothly.
NG -- REPLACE THROTTLE BODY
OK -- Continue to next step.
5. READ VALUE USING TECHSTREAM (THROTTLE POSITION)
(a) Connect the Techstream to the DLC3.
(b) Turn the ignition switch to ON.
(c) Turn the Techstream on.
(d) Clear DTCs Reading and Clearing Diagnostic Trouble Codes.
(e) Turn the ignition switch off and wait for at least 30 seconds.
(f) Turn the ignition switch to ON.
(g) Enter the following menus: Powertrain / Engine and ECT / Data List / Throttle Position No. 1, Throttle Position No. 2 and Throttle Position Command.
(h) Read the values displayed on the Techstream while wiggling the ECM wire harness.
(i) Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
(j) Read DTCs.

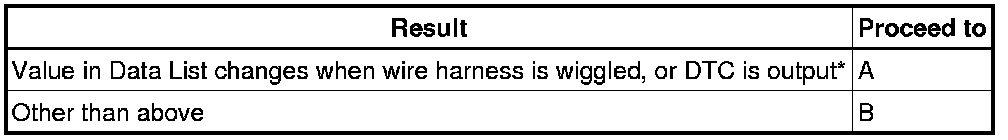

Result
*: As the DTC was stored due to a change in the contact resistance of the connector, repair or replace the wire harness or connector Electronic Circuit Inspection Procedure.
B -- CHECK WHETHER DTC OUTPUT RECURS (DTC P2119)
A -- REPAIR OR REPLACE HARNESS OR CONNECTOR (ECM - THROTTLE BODY)
6. REPLACE THROTTLE BODY
(a) Replace the throttle body Removal.
NEXT -- Continue to next step.
7. CHECK WHETHER DTC OUTPUT RECURS (DTC P2119)
(a) Connect the Techstream to the DLC3.
(b) Turn the ignition switch to ON.
(c) Turn the Techstream on.
(d) Clear DTCs Reading and Clearing Diagnostic Trouble Codes.
(e) Start the engine.
(f) Allow the engine to idle for 15 seconds or more.
(g) Fully depress and release the accelerator pedal several times quickly.
(h) Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
(i) Read the DTCs.

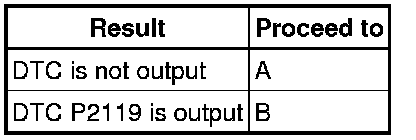

Result
B -- REPLACE ECM Removal
A -- END
