P0116

2ZR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0116: Engine Coolant Temperature Circuit Range / Performance Problem
P0116 - Engine Coolant Temperature Circuit Range / Performance Problem

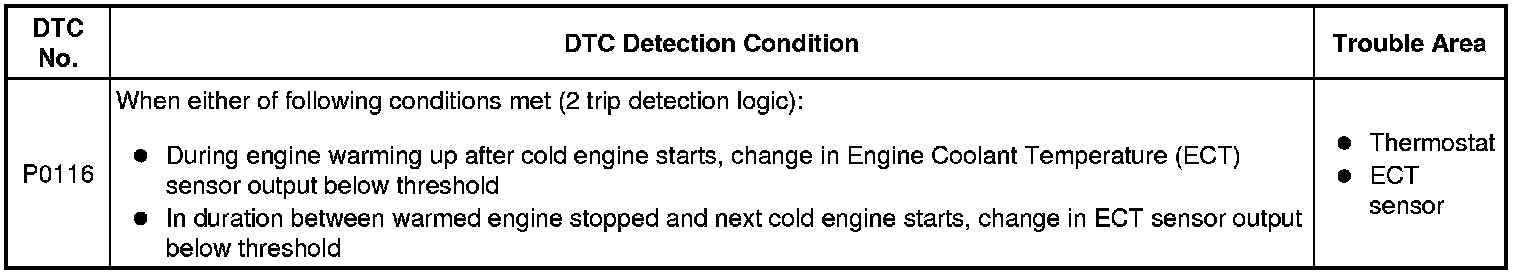

DESCRIPTION

Refer to DTC P0115 P0115.





MONITOR DESCRIPTION

Engine coolant temperature (ECT) sensor cold start monitor

The monitor runs when the engine is started cold. If the change in engine coolant temperature sensor output until the engine warmed up completely is less than the threshold, it is determined that a malfunction has occurred in the engine coolant temperature sensor. When this is detected in 2 consecutive driving cycles, the MIL is illuminated and the DTC is set.

ECT sensor soak monitor

The ECM compares the engine coolant temperature when the warmed engine is stopped and when the engine is started on the next trip when more than 5 hours has elapsed since the engine was stopped. If the change in engine coolant temperature sensor output is less than the threshold, it is determined that a malfunction has occurred in the engine coolant temperature sensor. When this is detected in 2 consecutive driving cycles, the MIL is illuminated and the DTC is set.

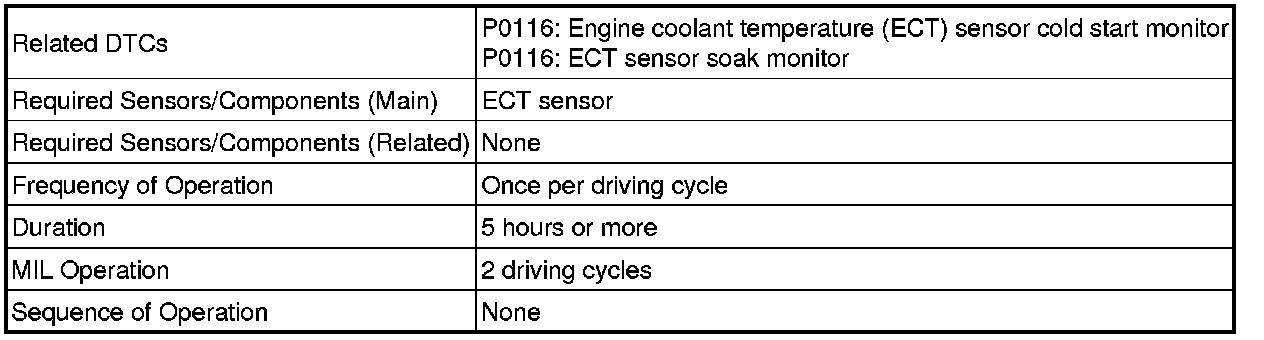

MONITOR STRATEGY





TYPICAL ENABLING CONDITIONS

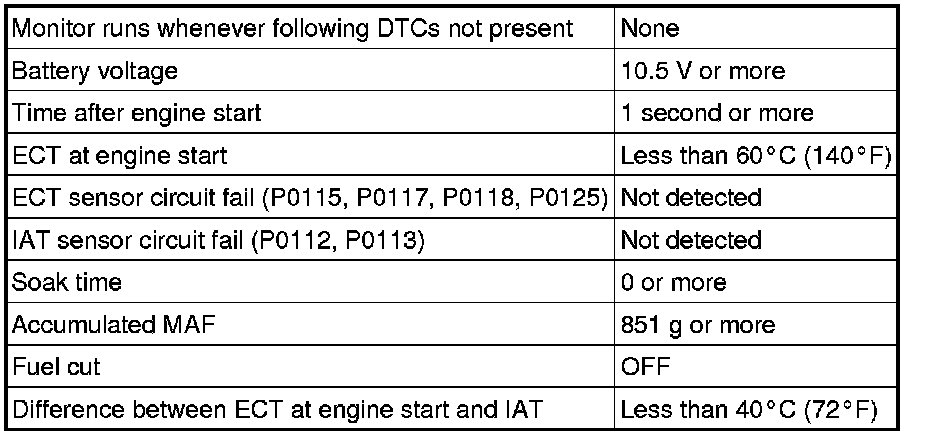

ECT sensor cold start monitor:

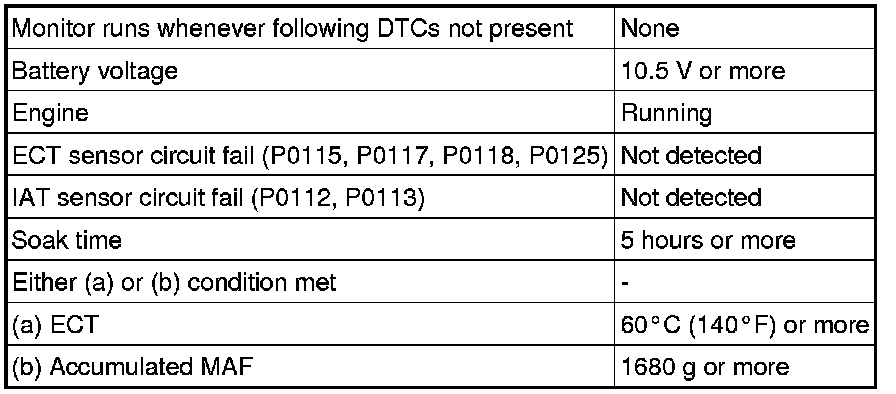

ECT sensor soak monitor:





TYPICAL MALFUNCTION THRESHOLDS

ECT sensor cold start monitor:





ECT sensor soak monitor:





COMPONENT OPERATING RANGE

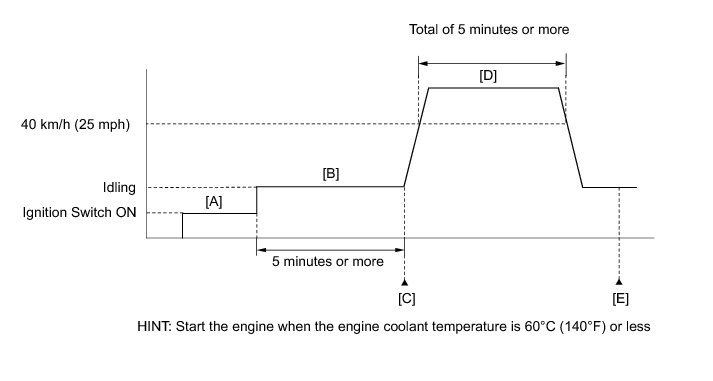

CONFIRMATION DRIVING PATTERN





1. Connect the Techstream to the DLC3.

2. Turn the ignition switch to ON and turn the Techstream on.

3. Enter the following menu items: Powertrain / Engine and ECT / Data List / Coolant Temp.

4. Check that the coolant temperature is 60°C (140°F) or less.

5. Clear DTCs (even if no DTCs are stored, perform the clear DTC operation).

6. Turn the ignition switch off and wait for at least 30 seconds.

7. Turn the ignition switch to ON and turn the Techstream on [A].

8. Start the engine and idle it for 5 minutes or more [B].

HINT
If the engine coolant temperature does not change by 5°C (9°F) or higher, the ECT sensor is malfunctioning. It is not necessary to continue this procedure.

9. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes [C].

10. Read the pending DTCs.

HINT
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.

11. Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.

12. Input the DTC: P0116.

13. Check the DTC judgment result.





HINT
- If the judgment result shows NORMAL, the system is normal.
- If the judgment result shows ABNORMAL, the system has a malfunction.
- If the judgment result shows INCOMPLETE or UNKNOWN, perform steps [D] and [E].

14. Drive the vehicle at 40 km/h (25 mph) or more for a total of 5 minutes or more [D].

CAUTION:
When performing the confirmation driving pattern, obey all speed limits and traffic laws.

HINT
In the event of the drive pattern being interrupted (possibly due to factors such as traffic conditions), the drive pattern can be resumed.

15. Check the DTC judgment result again [E].

HINT
If the judgment result shows INCOMPLETE or UNKNOWN, perform steps [D] and [E] again.

16. If no pending DTC is output, perform a universal trip and check for permanent DTCs Reading and Clearing Diagnostic Trouble Codes.

HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.

INSPECTION PROCEDURE

HINT
- If any of DTCs P0115, P0117, P0118 or P0125 are set simultaneously with DTC P0116, the ECT sensor may have an open or a short circuit. Troubleshoot those DTCs first.
- Read freeze frame data using the Techstream. Freeze frame data records the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

1. CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P0116)

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.

(e) Read DTCs.

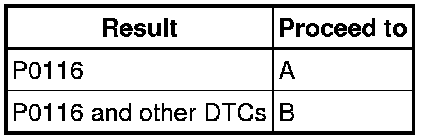

Result:





B -- GO TO DTC CHART Engine Control System - SFI System
A -- Continue to next step.

2. INSPECT THERMOSTAT

(a) Remove the thermostat Removal.

(b) Measure the valve opening temperature of the thermostat.

Standard value:

80 to 84°C (176 to 183°F)

HINT
In addition to the above check, confirm that the valve is completely closed when the temperature is below the standard.

(c) Reinstall the thermostat Installation.

NG -- REPLACE THERMOSTAT Removal

OK -- REPLACE ENGINE COOLANT TEMPERATURE SENSOR Removal
